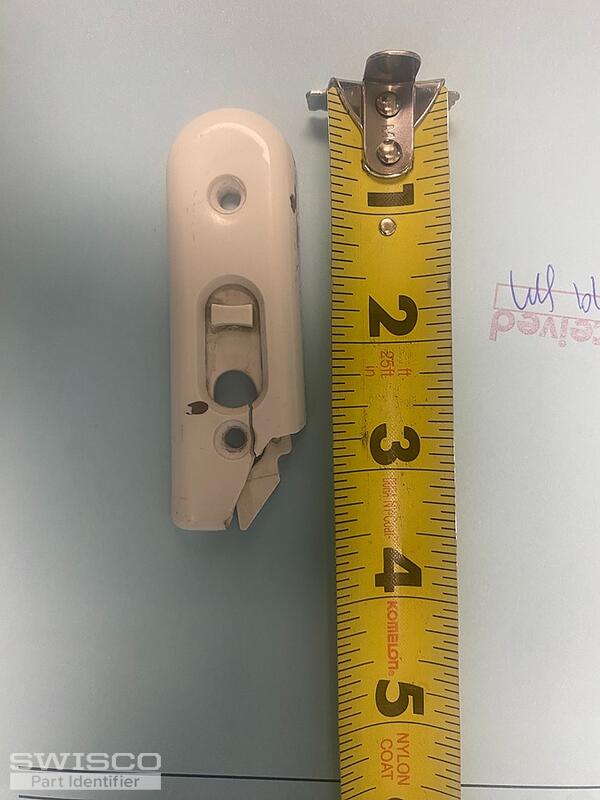

Trying to replace this sash/tilt latch
white tilt latch
Quick Learner from BAKERSFIELD CA
Jun 19, 2024 7:59 pm
1 user uploaded image
7 Replies
Casey from SWISCO
Jun 21, 2024 2:40 pm
Hello,
We are not able to make out accurate dimensions from photos but take a look at the 26-410. Compare the dimensions below to yours, paying close attention to the screw hole spacing. Thank you!
Alternate image for 26-410
Quick Learner from BAKERSFIELD CA
Jun 24, 2024 3:28 pm
This one is very similar. But the one I am looking for is about 3-1/4" long.
It is also rounded at one end, not square at both ends.
It is also rounded at one end, not square at both ends.
Casey from SWISCO
Jun 24, 2024 3:52 pm
The shape of the tilt latch is not as important as the dimensions. The overall length is also not as important as the distance between the center of the installation holes. If yours differs from the 1-13/16" measurement shown in the diagram, we'll need you to write out your exact hole spacing to look into this further for you.
Quick Learner from BAKERSFIELD CA
Jun 24, 2024 4:06 pm
Ok got it, thank you. This one is 2" center to center of the holes.
Casey from SWISCO
Jun 25, 2024 8:23 am
Thank you for confirming. We do not carry an exact match for your tilt latch with the same 2" hole spacing. Our closest option would be the 26-344. This has the same hole spacing but the style is quite different. Take a look at the dimensions below, paying close attention to the 3/4" backset of the first hole from the front of the latch.
Dimensions for 26-344
Quick Learner from BAKERSFIELD CA
Jun 25, 2024 10:47 am
Thank you very much. I will do some research to see if this one will work for us.
Appreciate your help.
Appreciate your help.
