window balance

Home Owner from los angeles CA
stamped with the codd 1420 (I need 4 total)

and I need 12 2630
10 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. I'm confident we can help, but those stamps are not identifiers. They just tell us the strength of the channel balance. To know what balances you need, you'll need to remove them from their windows and show us photos of the nylon attachments at both ends. The style of attachments determines the balances you need. We'll do our best to help from there.

Home Owner from los angeles CA

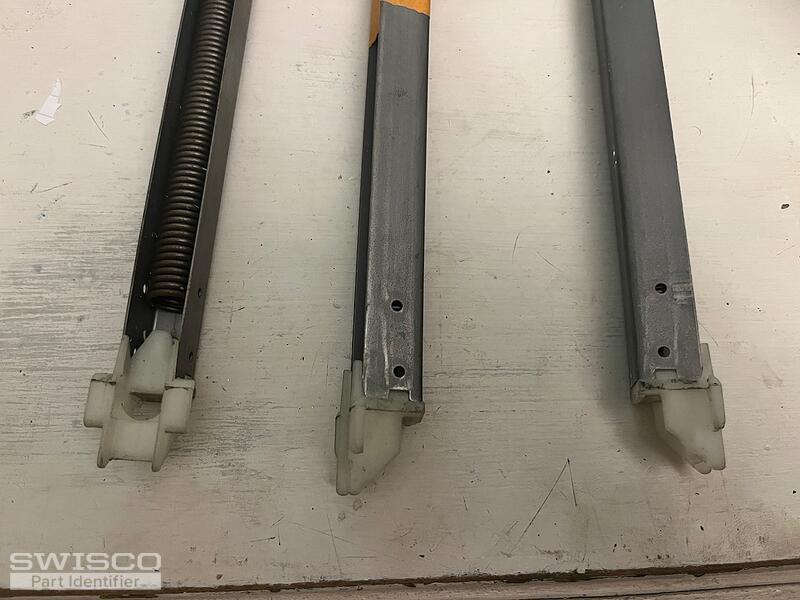

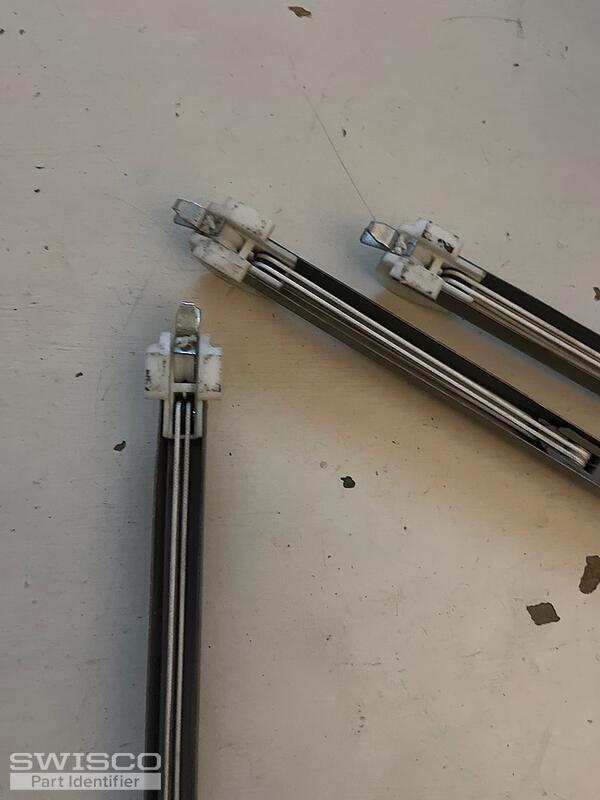

Thank you for your help! Pictures here show both ends.
5 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Thank you! This appears to be an "extended travel" type channel balance. This is a unique configuration that unfortunately can't be replaced by any of our stock products, but we can still sell it as a special order.

Before we go further, can you verify the length of the metal channel for each size? The 1420 should be 14-7/8" long and the 2630 should be 26-7/8" long. This is a very important detail so let me know what you get and we can get the ball rolling.

Home Owner from los angeles CA
yes those measurements you said are correct when measuring the metal rod only! thank you so much.
Bob
Bob from SWISCO
SWISCO
Expert

Great! In that case I'll go ahead and email you a purchase link right now that will let you add these sizes to your cart. You can then checkout as normal.

Please let me know if you had any follow up questions and I'd be happy to assist.

Home Owner from los angeles CA
Hello! I need to order 4 (two windows) of the 27"
Same type as my other order
Bob
Bob from SWISCO
SWISCO
Expert

Hello again! I'd be happy to set you up with a new order link. Is this the same 2630 stamp as you had before? I'll email you a purchase link now that will let you add 4 of those to your cart.

Please just note that the length of this assembly is 26-7/8", not 27".

Home Owner from los angeles CA
That's correct! Same type, and yes the size is 26 7/8.
Thank you again.
Bob
Bob from SWISCO
SWISCO
Expert

Anytime! Please feel free to reach out if we can offer any further assistance.
