window balance

A contractor from Cherry Hill, NJ says:
November 21, 2017
Hello,

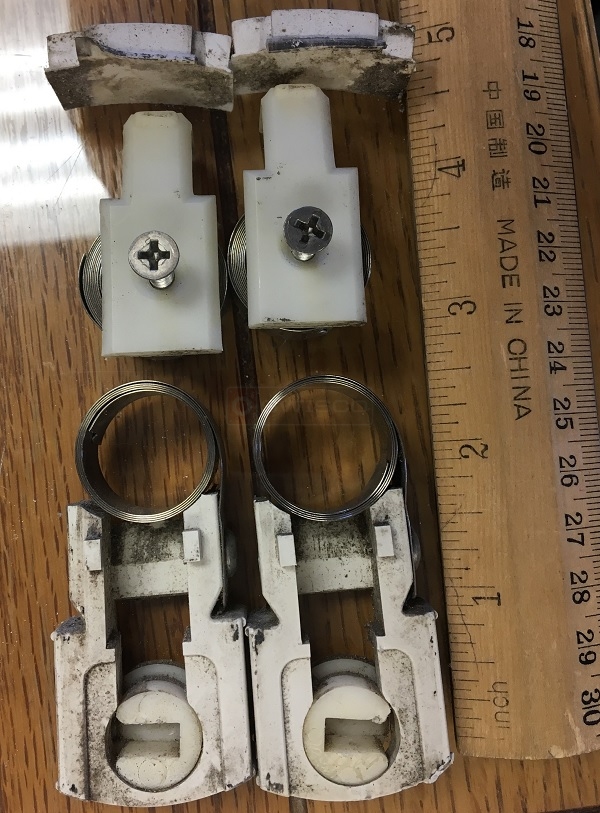

Can you help me determine what part I would need to replace these?

Thank you,

Courtney
coil balance
Profile picture of Paul
Paul from SWISCO responded:
November 28, 2017
The pivot shoe is 15-180, which uses Series 190 coil springs. When ordering the coils, you will need the spring weight number stamped on the old coil, to choose which particular coil you want from the Series. The other two parts are the 15-186 balance clip and 15-182 bushing.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Balance Bushing
Balance Bushing
15-182
$1.80
Coil Balance Clip
Coil Balance Clip
15-186
$5.05
440 S190 Coil Balance Spring
440 S190 Coil Balance Spring
S190-440
$9.74
