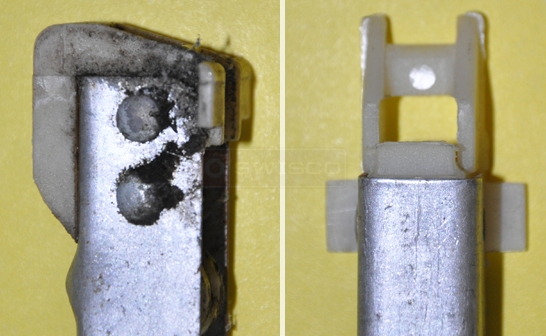

Top catch is 1/2" wide x 5/8"deep.Wings are 1" wide
Bottom shoe is 1/2" wide x 15/16 deep. Wings are 1" wide
Channel is 9/16" x 29"
I think it is a S380-29
29" replacement channel balance
Handy Person from Florida
Feb 13, 2012 2:58 pm
need 4 replacment window balance 29" long
Top catch is 1/2" wide x 5/8"deep.Wings are 1" wide
Bottom shoe is 1/2" wide x 15/16 deep. Wings are 1" wide
Channel is 9/16" x 29"
I think it is a S380-29
Top catch is 1/2" wide x 5/8"deep.Wings are 1" wide
Bottom shoe is 1/2" wide x 15/16 deep. Wings are 1" wide
Channel is 9/16" x 29"
I think it is a S380-29
4 Replies
Paul from SWISCO
Feb 14, 2012 9:24 am
Thanks for posting. based on your description and pictures, it does, indeed, sound like you have an S380-29. However, can we see the number printed on your balance? This well help us determine the correct stamp number.
Handy Person from florida
Feb 14, 2012 3:09 pm
Paul
only # on balance is 28B USB
only # on balance is 28B USB
Paul from SWISCO
Feb 14, 2012 3:28 pm
Thank you. In that case, you would need the 28" Series 380 with stamp option 2820.
