window balance

Handy Person from Saint Augustine, FL
find this part
1 user uploaded image
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to help but we would need to see a photo of an undamaged balance removed from the window, including both end attachments, to compare to our inventory. Thank you!

Handy Person from Saint Augustine, FL

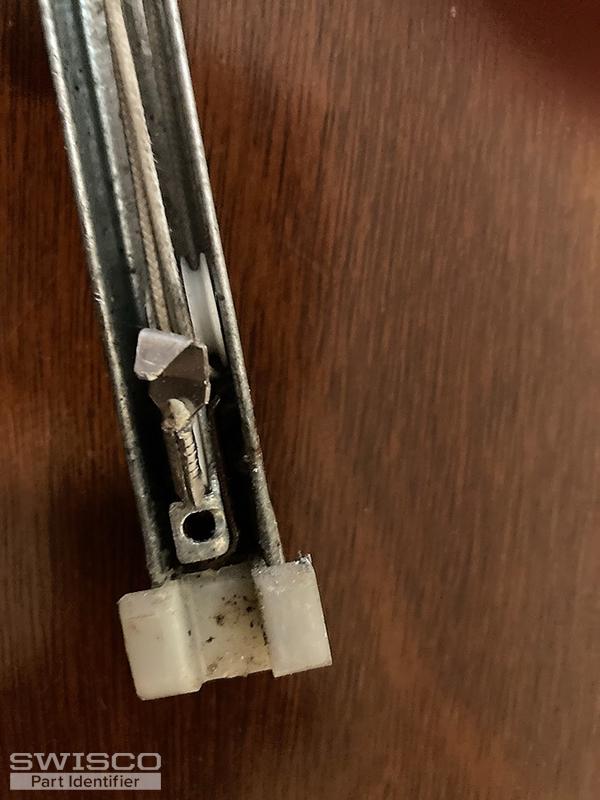

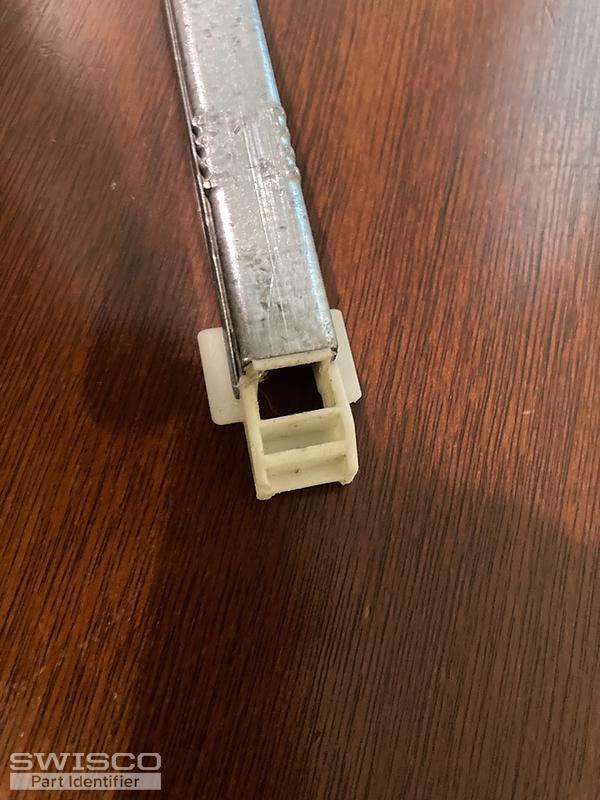

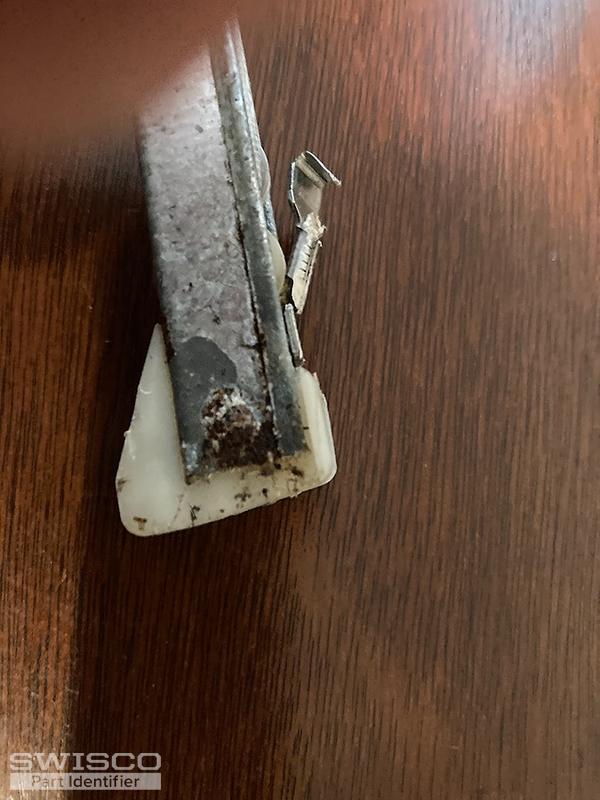

Here are more pictures
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2940 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
