window balance

Question

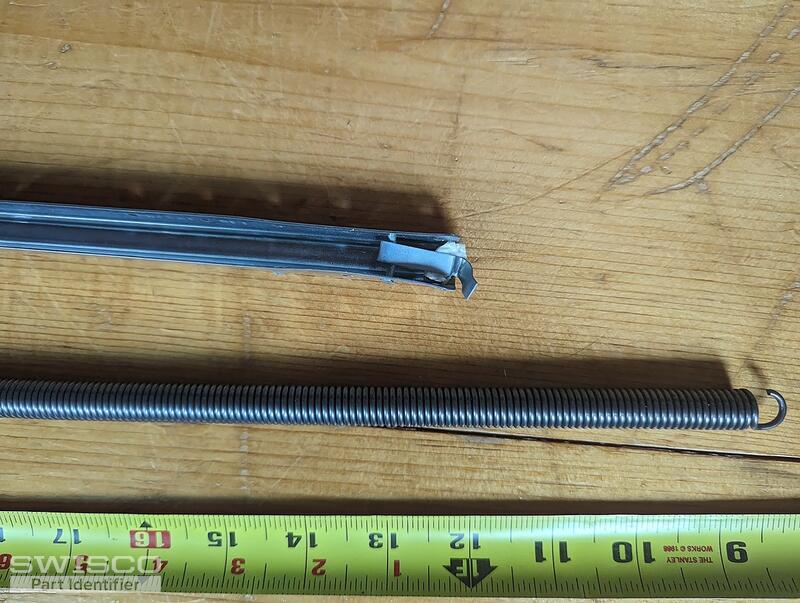

I am looking for a replacement window balance and am hoping you can help. The window is a Norco (jen-weld) D series double hung, model JEL-N-315. The metal portion of the balance measures an odd 30 11/16". It is imprinted with "28 RB". It was broken before I took it off, so the internals fell apart as I took it out - hence the spring and a few other broken parts are not inside the track any longer.

I have lots more pictures if needed, but this only let me upload 5. If need be I do have a functional balance on the other side that will need to be replaced, but I have yet to remove it so that the window at least is marginally functional. Thanks for your help.

Jasmine · Accepted Answer

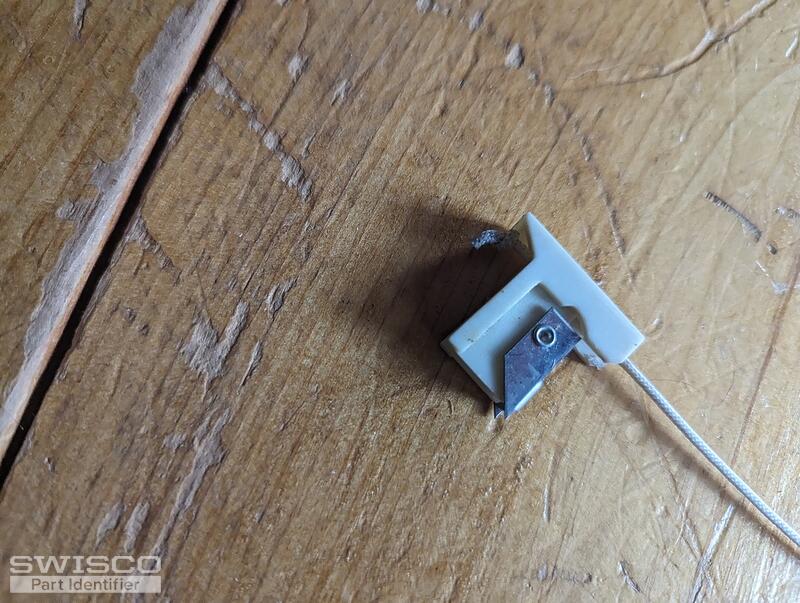

Thanks for reaching out! Your channel balance appears to be the S751-29 balance with a knife lock shoe. I am unable to cross-reference the stamp from your balances, unfortunately. You'll need to obtain the exact weight of your sash and then use that weight to select the stamp from the chart below the product description.

Also, your balance appears to have the 19-029 short s-clip attached to the top.
