window balance

Home Owner from 22554

hello,

I'm looking to replace several window balances.  the pictures are what i took off of one side of the windows I'm working on.any help with what parts to order would be appreciated.

Thanks,

Todd

3 user uploaded images
3 Replies
Home Owner from USA
Hello,
I’m looking for help identifying the correct window balance coils for my windows.  There are no stamps.

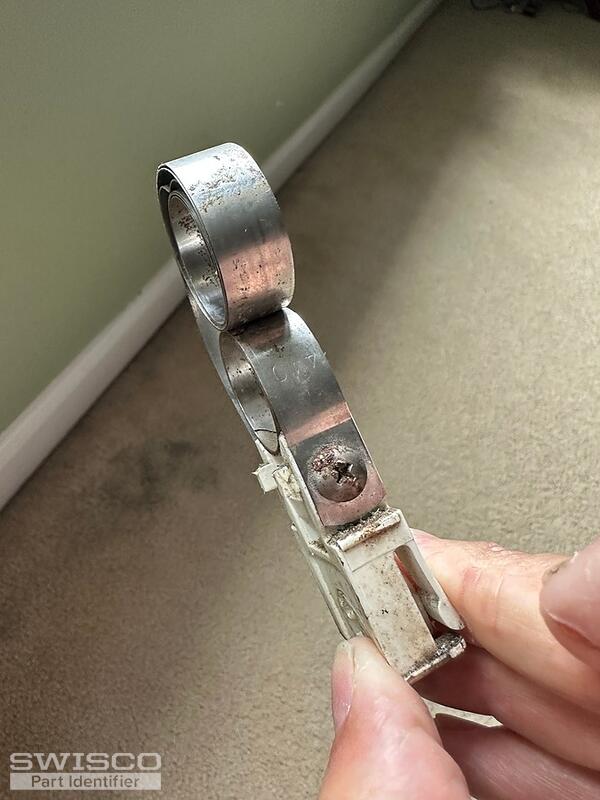

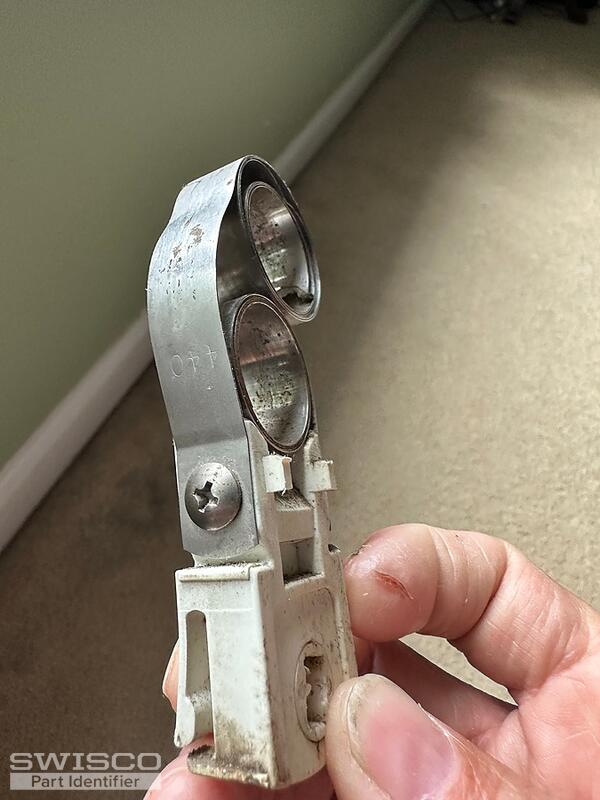

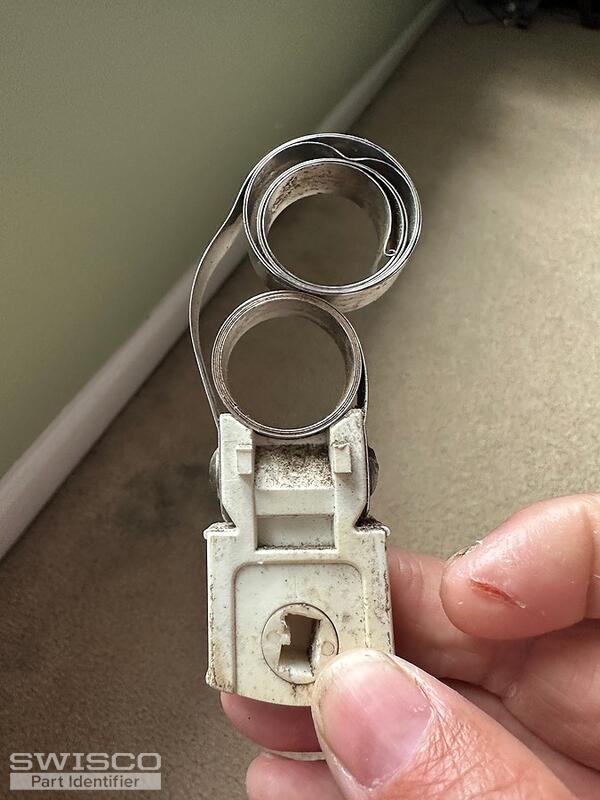

Attached are photos of the window balance I pulled out from one side of one of my windows.  2 coils.  Silver in color.  Coils are ½” wide.  The window sash is 18 pounds.
Thanks.
I was thinking I can just buy and replace the coils?  I have the silver coils, ½” wide.  The sash is 18 pounds.
Would this work for my application?
https://www.swisco.com/silver-medium/pd/Series-175-Coil-Balance/S175-SM
I thought my coils were more like S175-SS and S175-SM.  Can you tell me the difference between the S175 and S190 series?
I went with S175 because there is a short coil and a medium coil, with the medium coil having a longer ‘foot’ to attach above the short coil.
Thanks.
3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Hi there Todd.

Thank you for reaching out to us. Your pivot shoe is a match for the 15-180, but you can reuse it if it's in good condition. Since the window is 18 pounds, you can use one S190-940 9-pound coil spring on each side of the window. This will total 18 pounds of overall support.
