window balance and parts replacement

A contractor from Berkeley says:
I need to know what a 24 B is equivalent to? I have 10 lb. sashes.
Thank you,
P

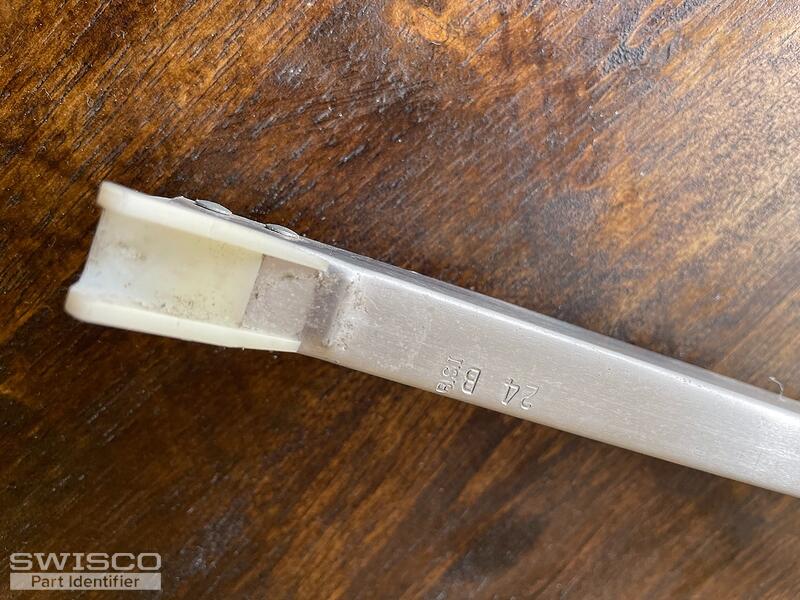

Thumbnail of the uploaded file named IMG_8596.jpg

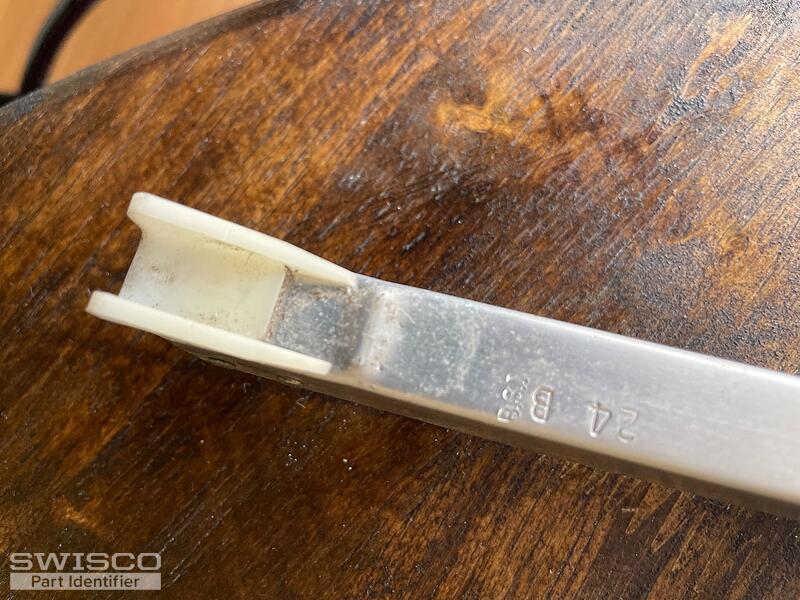

Thumbnail of the uploaded file named IMG_8597.jpg
Thumbnail of the uploaded file named IMG_8598.jpg

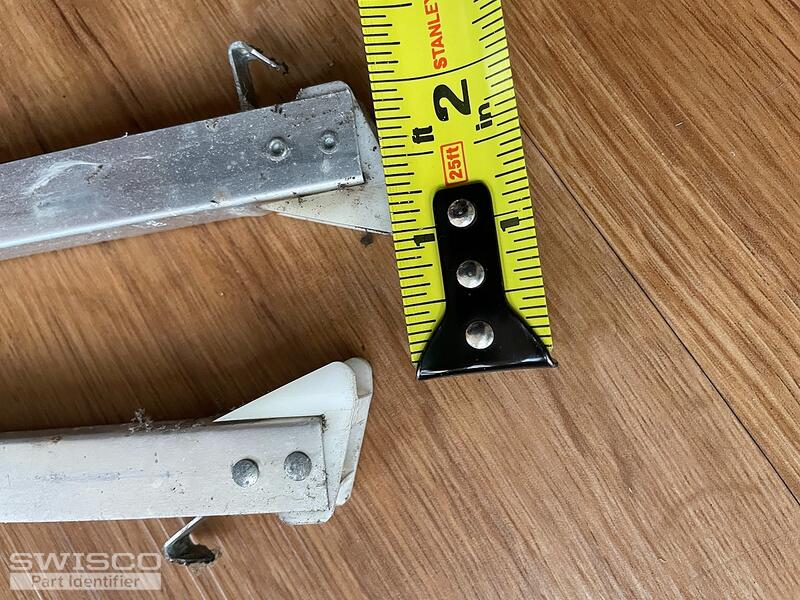

Thumbnail of the uploaded file named IMG_8669.jpg

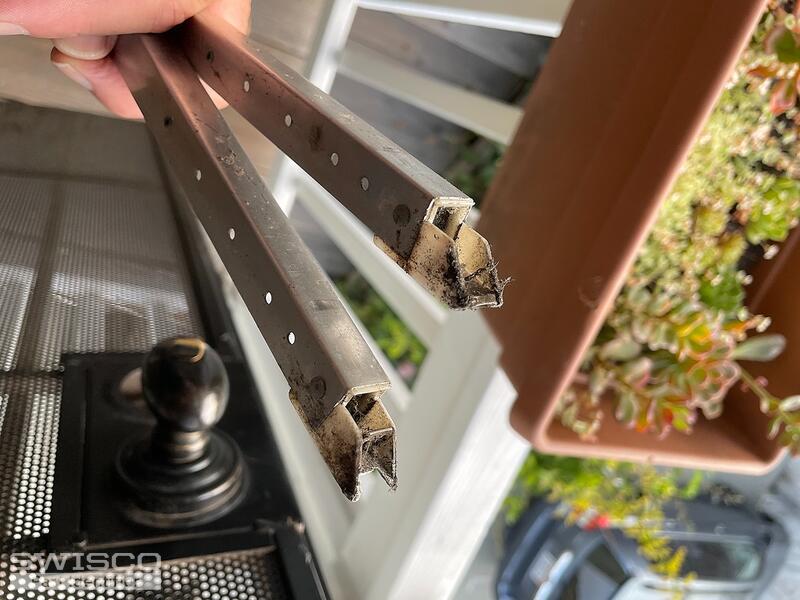

Thumbnail of the uploaded file named IMG_8672.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

It appears you have our S351-25 or S390-25 channel balance. The important difference between these two parts is the bottom shoe size. Our Series 351 comes attached with a 1" deep shoe, and the Series 390 comes attached with a 1-1/8" deep shoe. Measure as shown in the image below to determine the best match. You will also need the 2420 strength option for a sash weighing 9 to 15 pounds.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
