window balancers

A handy person from Florida says:
January 15, 2022

I need to replace these window balancers. I need:

(6) with the numbers 28 5 inscribed, 29"

(4) with the numbers 28 3 inscribed, 29"

(2) with the numbers 22 3 inscribed, 23"

All of them have the same end pieces

Thanks for the help

Greg

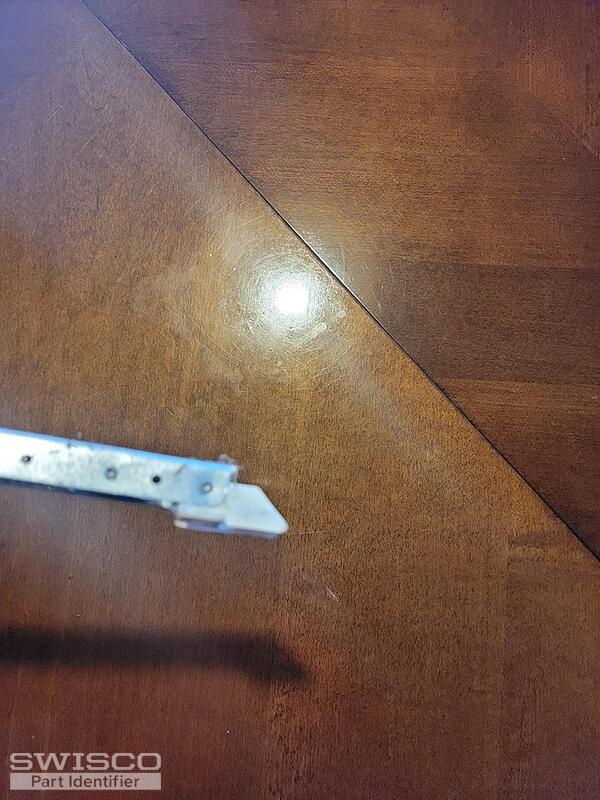

Thumbnail of the uploaded file named 20220115_160351.jpg

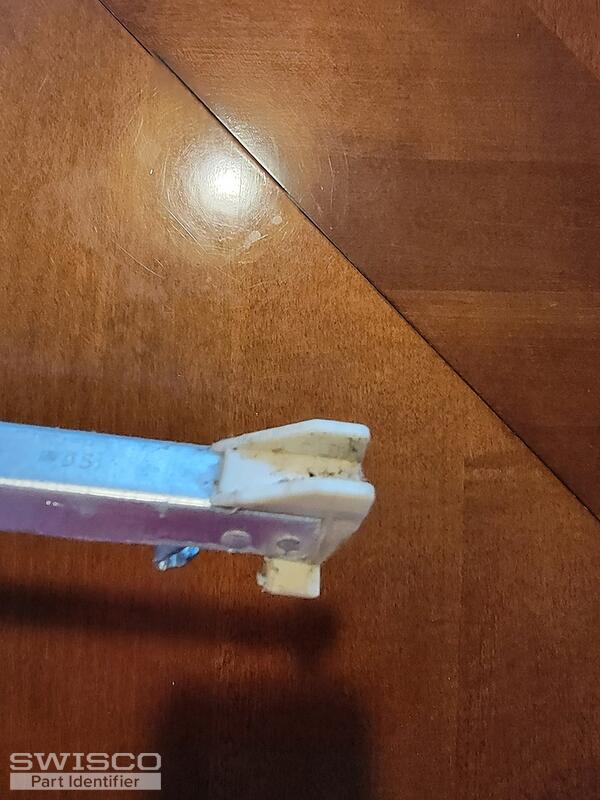

Thumbnail of the uploaded file named 20220115_160316.jpg

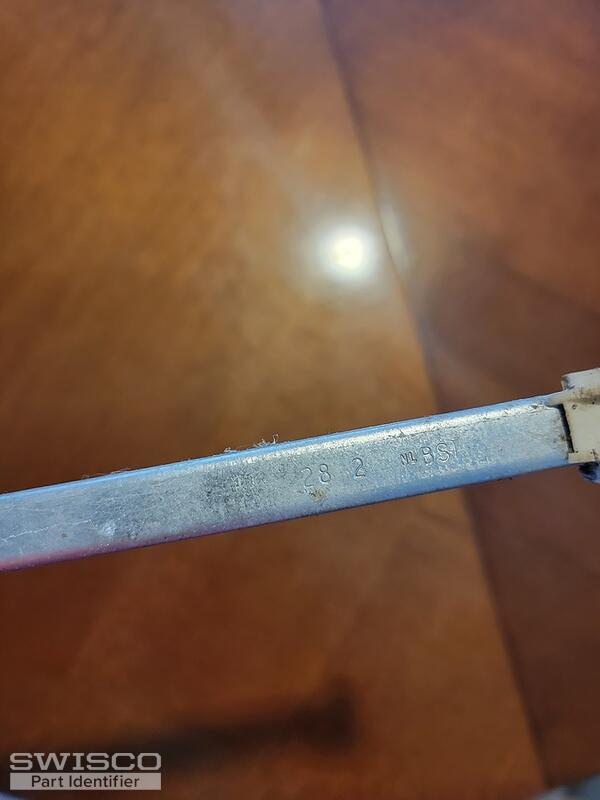

Thumbnail of the uploaded file named 20220115_160320.jpg

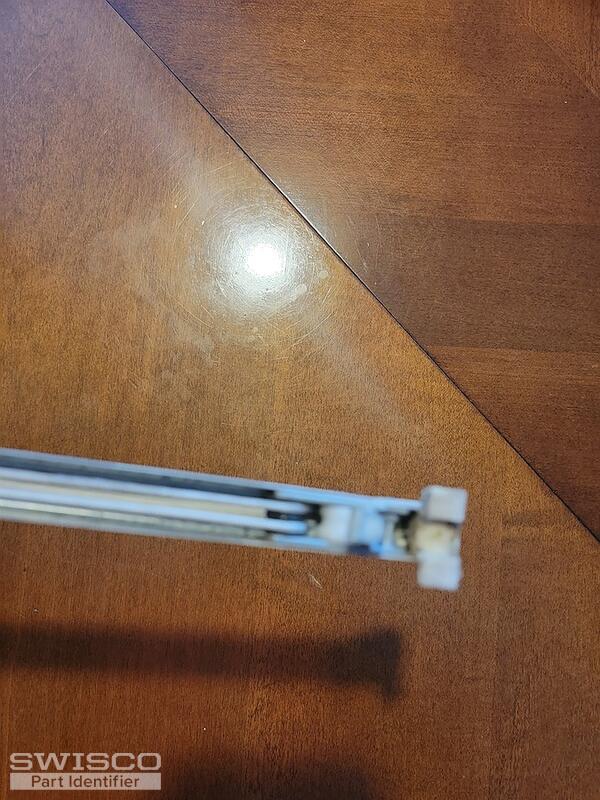

Thumbnail of the uploaded file named 20220115_160322.jpg

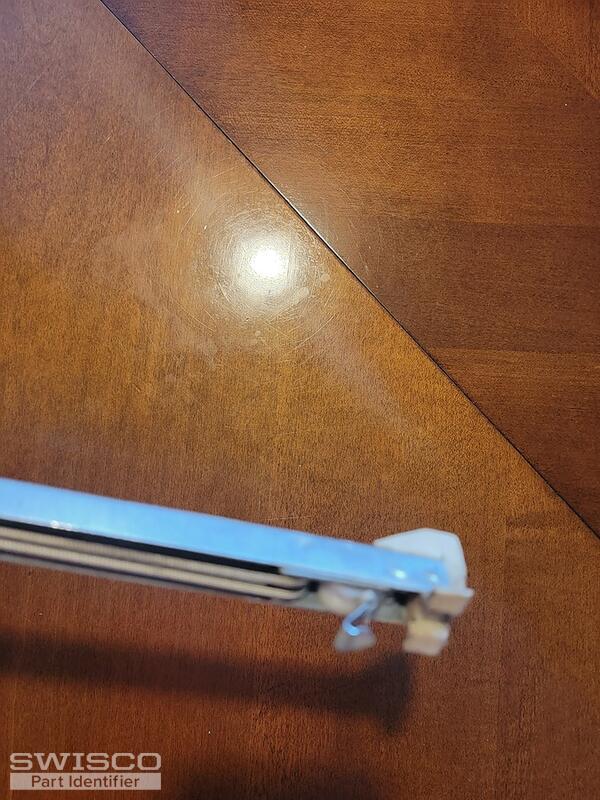

Thumbnail of the uploaded file named 20220115_160328.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 18, 2022

Hello,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need six 2850 and four 2830 spring strength options for your 29" balances, as well as two 2230 options for the 23" replacement balances.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$11.10
29" Series 385 Channel Balance
29" Series 385 Channel Balance
S385-29
$11.10
23" Series 380 Channel Balance
23" Series 380 Channel Balance
S380-23
$9.59
23" Series 385 Channel Balance
23" Series 385 Channel Balance
S385-23
$9.59
