window balances

Question

I have 11 windows of several different sizes. The all are the same style.

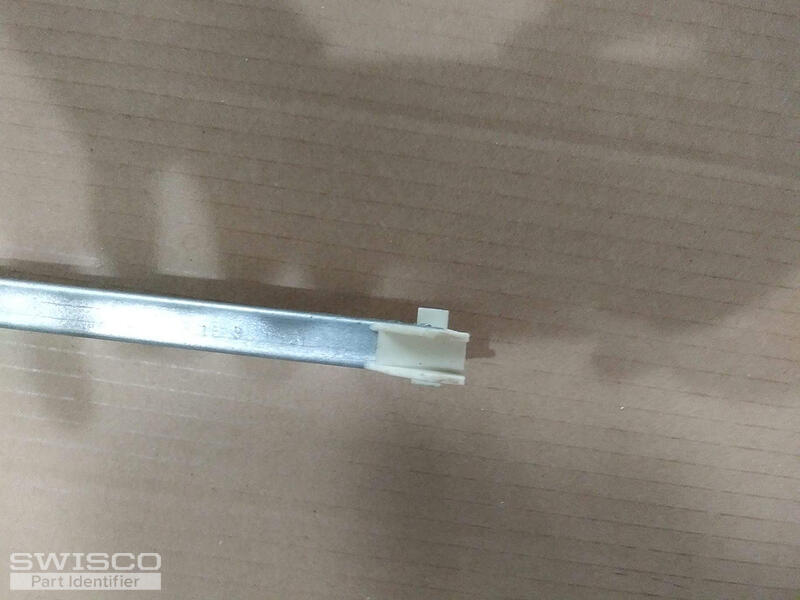

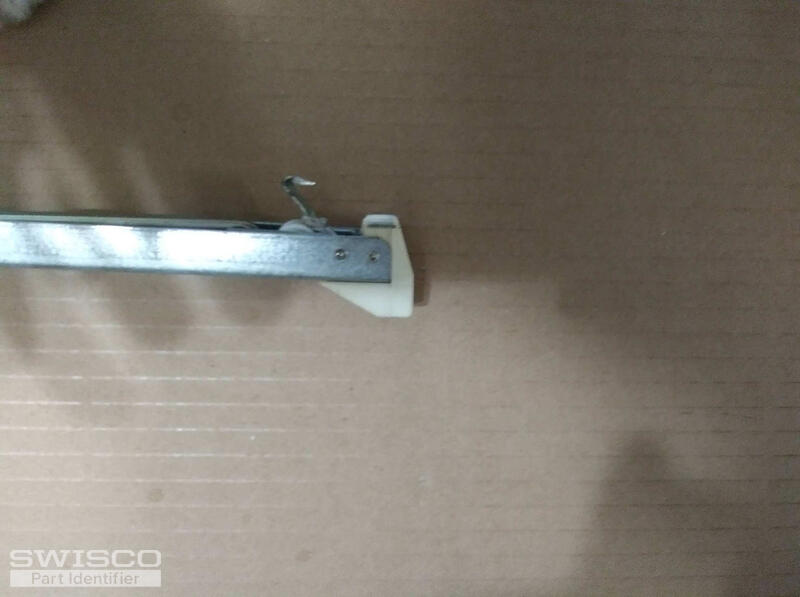

From looking at your website I think they are style 385. The metal channels are 1/2 inch. The shoe part is 1 3/32 inch deep. I am sending pictures to make sure I order the correct ones. The metal channels all are stamped BSI with numbers such as 16 9 0r 29 5.

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2950 spring strength options for your 30" balances with 29 5 stamps. Unfortunately, the 16 9 stamp is from an outdated weight system, so you'll need to weigh your sash to determine which option you'll need for the 17" balances with that stamp. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
