window balances

A quick learner from Florida says:
February 19, 2023

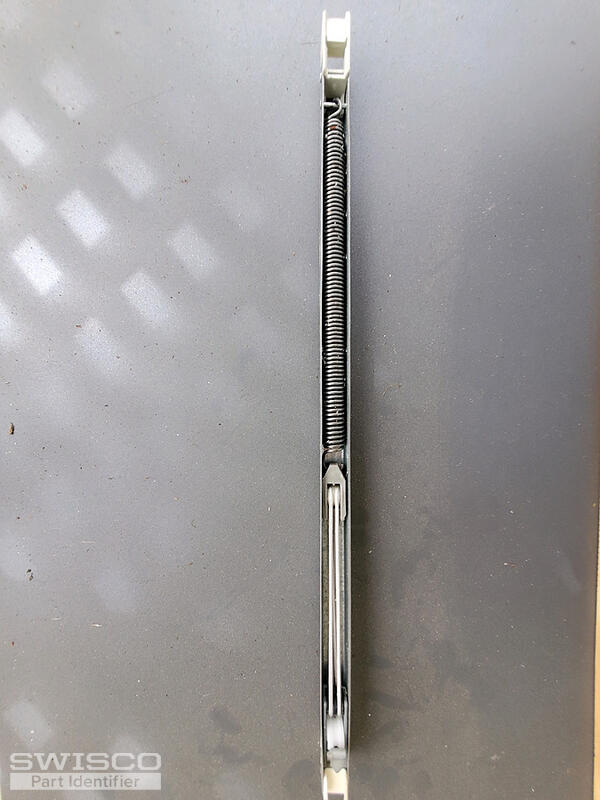

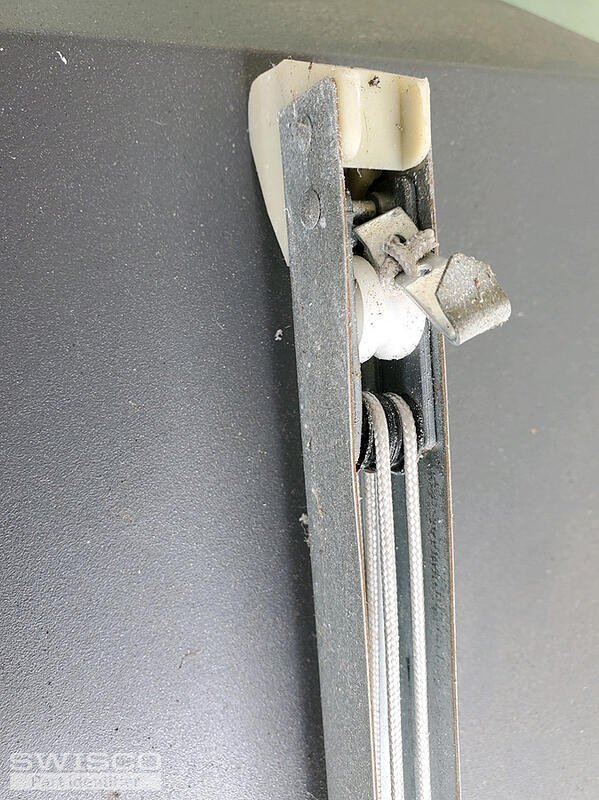

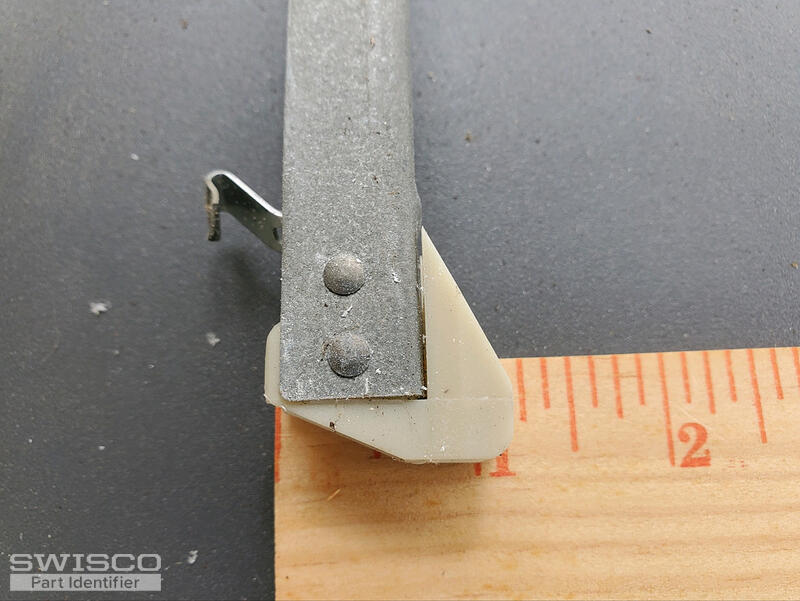

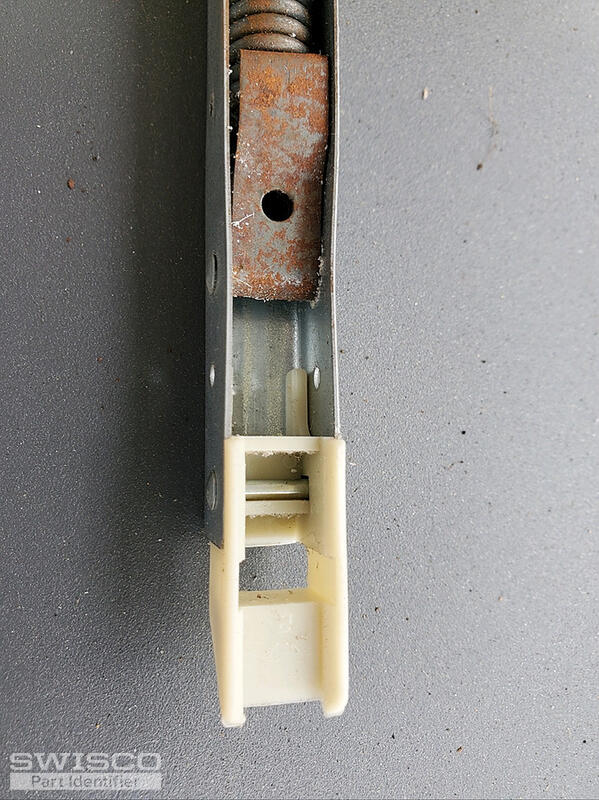

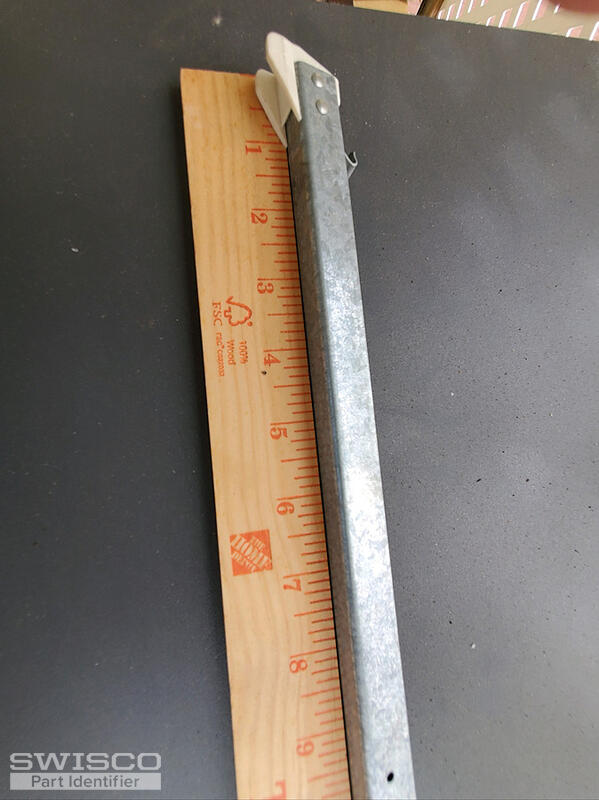

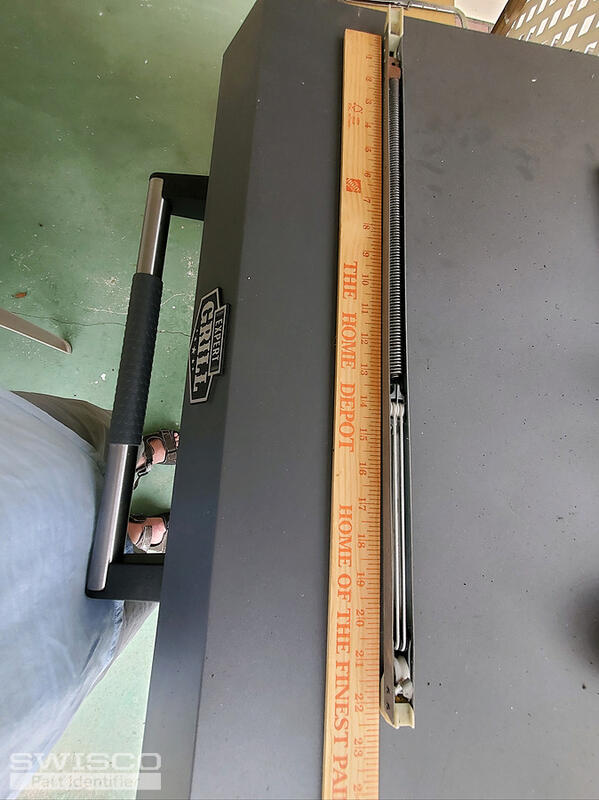

Can you Identify this window balance? The metal piece is 22" long and 9/16 wide.

Thank you

Marty

Thumbnail of the uploaded file named 20230219_125828.jpg
Thumbnail of the uploaded file named 20230219_125909.jpg
Thumbnail of the uploaded file named 20230219_125844.jpg
Thumbnail of the uploaded file named 20230219_125852.jpg
Thumbnail of the uploaded file named 20230219_132507.jpg
A quick learner from Florida says:
February 19, 2023

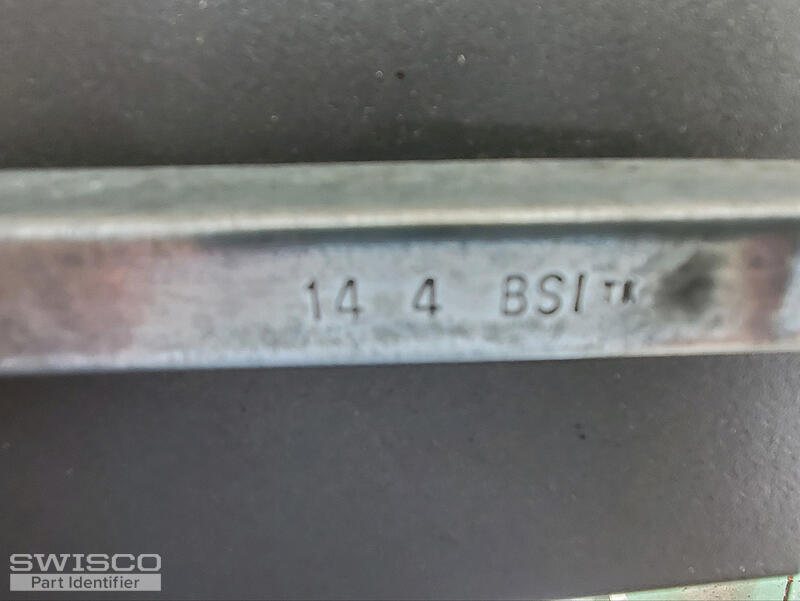

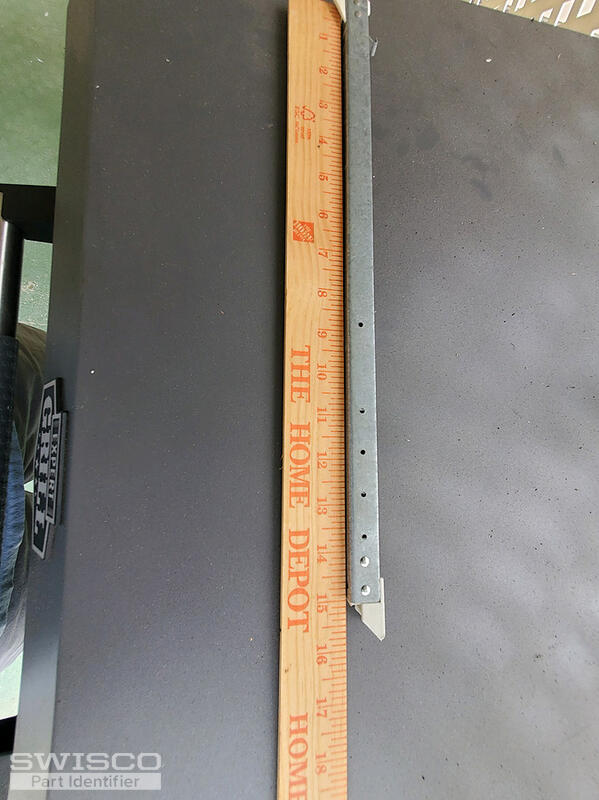

I also need to Identify a shorter balance that appears the same but is shorter. 15"
Thumbnail of the uploaded file named 20230219_134201(6).jpg
Thumbnail of the uploaded file named 20230219_133251.jpg
Thumbnail of the uploaded file named 20230219_133310.jpg
Thumbnail of the uploaded file named 20230219_133326.jpg
Profile picture of Casey
Casey from SWISCO responded:
February 20, 2023

Hello,

It looks like you have either our S351 , with a 15-002 bottom attachment, or S390 , with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

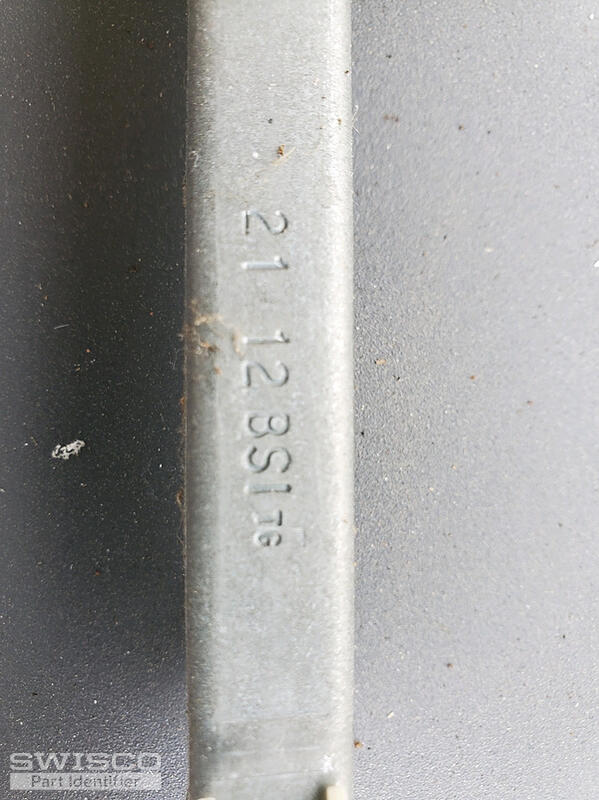

You'll also need a 1440 spring strength option for your 15" replacement balances. The stamp on your 22" balances is a bit out of the ordinary so I would recommend weighing your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

15" Series 351 Channel Balance
15" Series 351 Channel Balance
S351-15
$9.34
22" Series 351 Channel Balance
22" Series 351 Channel Balance
S351-22
$9.91
15" Series 390 Channel Balance
15" Series 390 Channel Balance
S390-15
$9.34
22" Series 390 Channel Balance
22" Series 390 Channel Balance
S390-22
$9.59
