window ballast

A home owner from florida says:
December 29, 2020

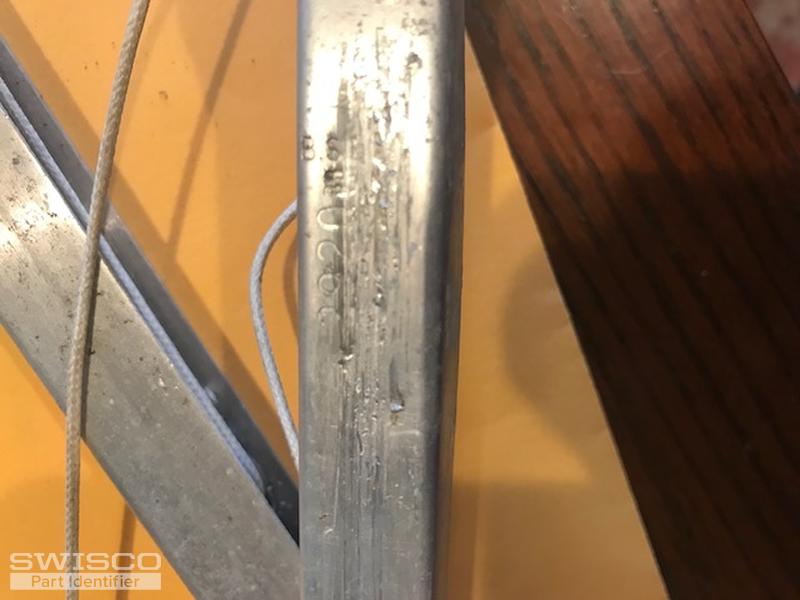

Want to replace all my window ballast in my home but don't know the series. Windows are about 28 years old, Harcar windows. Stamped number on this window ballast says 2920? The metal length is 30"

Thanks, Ken

Removed another ballast that says 1720, the length is 18 inches
Thumbnail of the uploaded file named IMG_7208.jpg

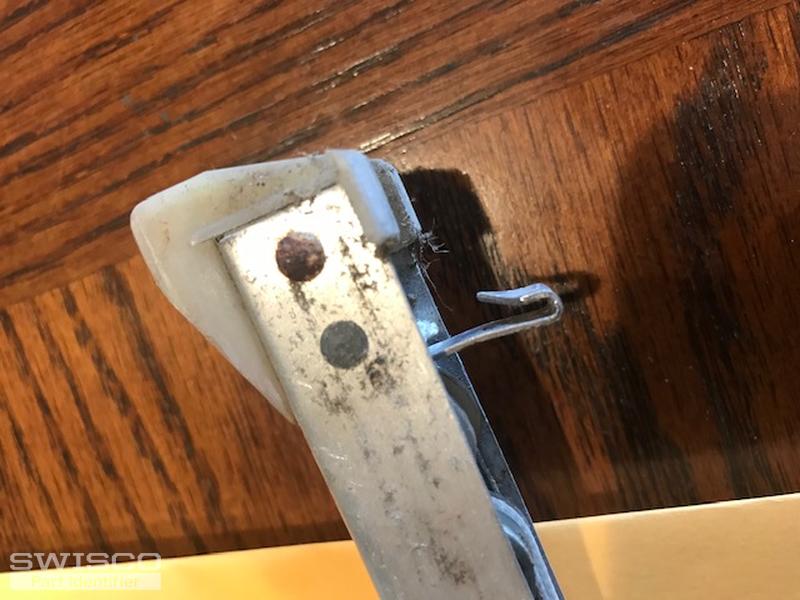

Thumbnail of the uploaded file named IMG_7209.jpg

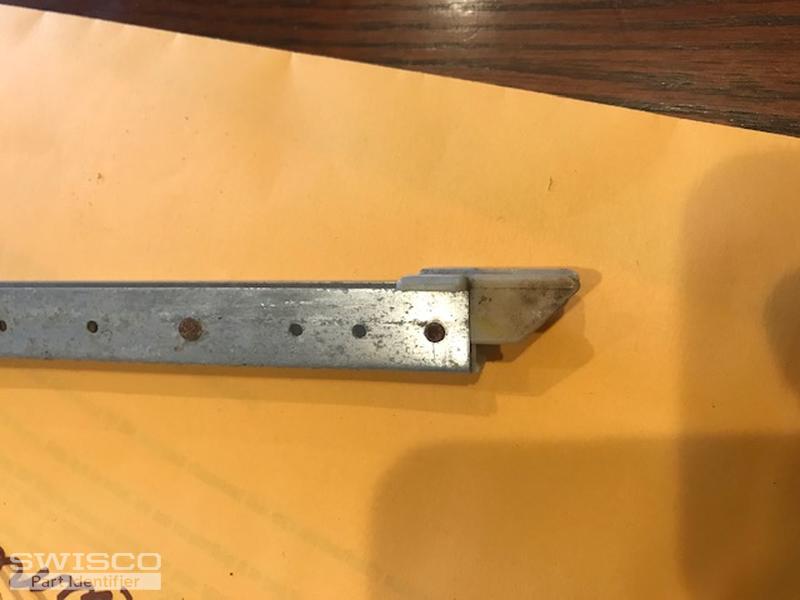

Thumbnail of the uploaded file named IMG_7210.jpg

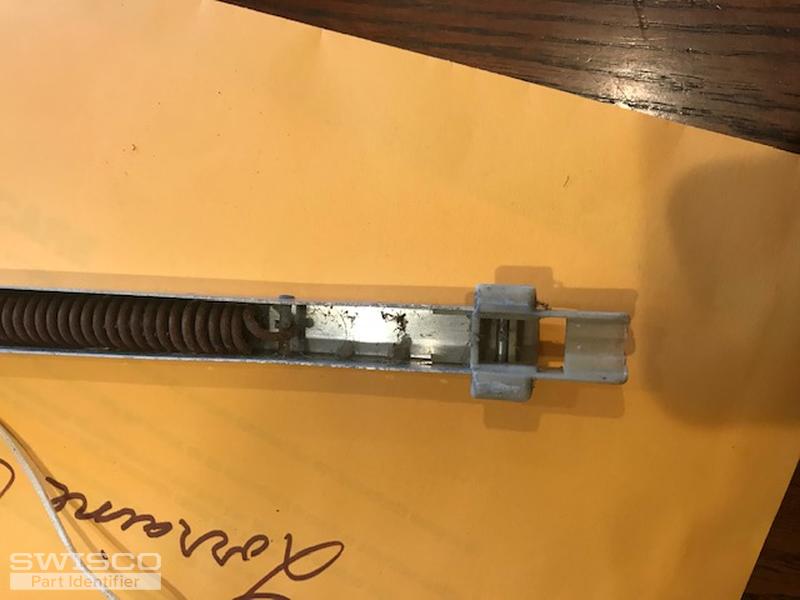

Thumbnail of the uploaded file named IMG_7211.jpg

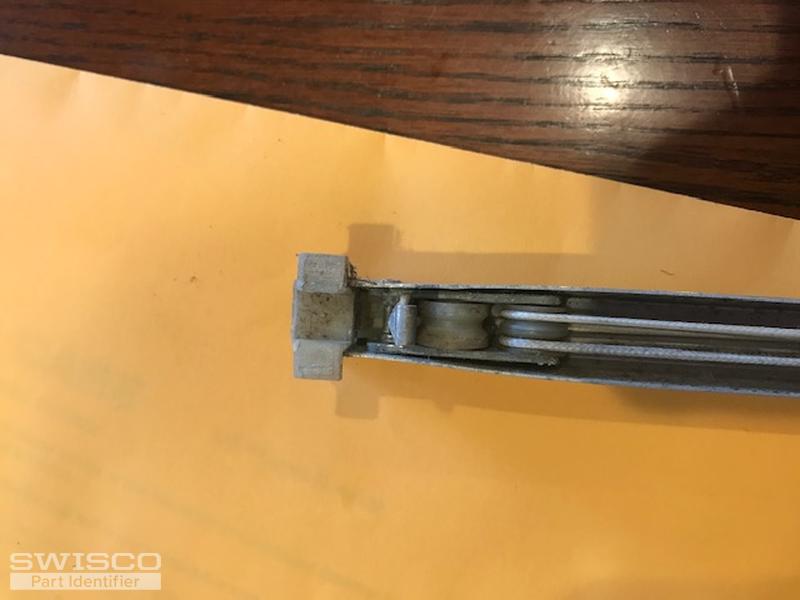

Thumbnail of the uploaded file named IMG_7212.jpg
Profile picture of Bob
Bob from SWISCO responded:
December 30, 2020

This looks like either a Series 380 or Series 385 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, so compare both with your old hardware to see what matches best. See the diagram below.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
30" Series 380 Channel Balance
30" Series 380 Channel Balance
S380-30
$11.30
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
18" Series 380 Channel Balance
18" Series 380 Channel Balance
S380-18
$9.34
18" Series 385 Channel Balance
18" Series 385 Channel Balance
S385-18
$9.34
