window block and tackle for un-named aluminum window

Start a new Discussion

Home Owner from Florida

Jan 25, 2024 5:14 pm

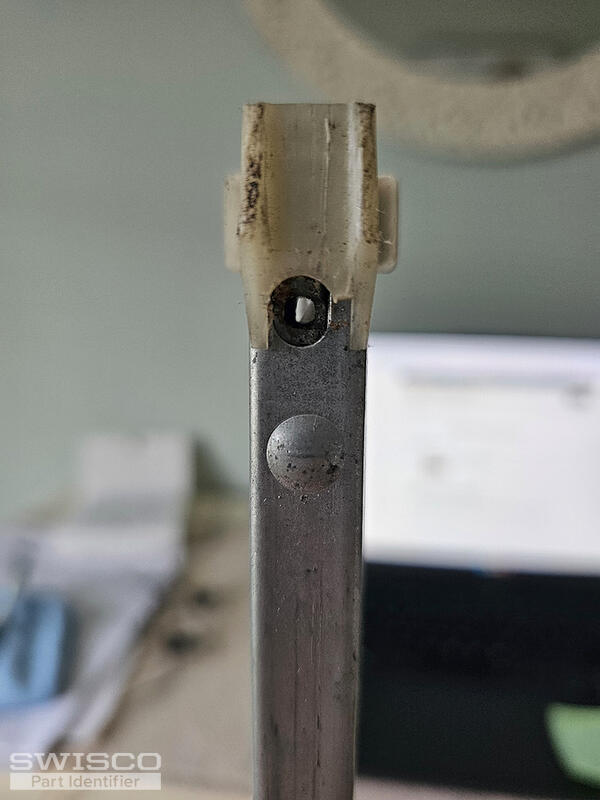

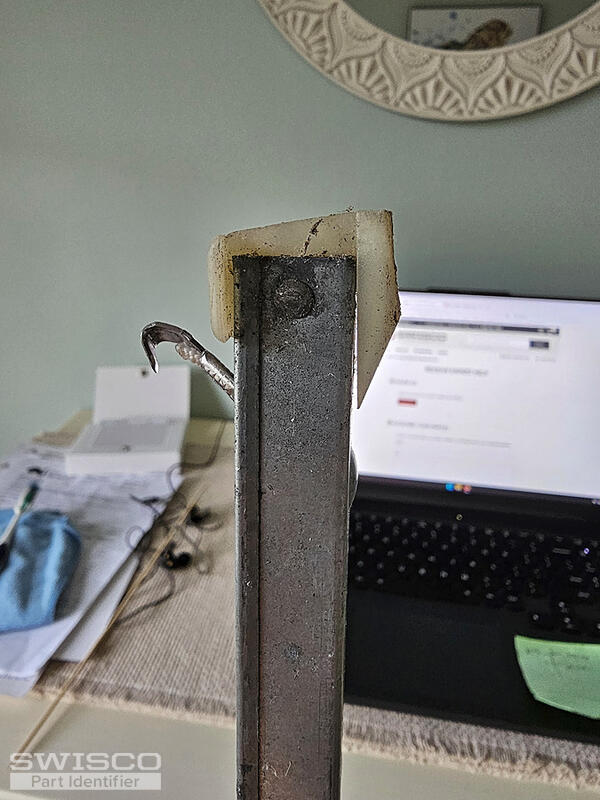

27" long x 5/8". window sash is 34" x 26" unknown weight. I would think less than 20lbs.

5 user uploaded images

4 Replies

Emily from SWISCO

Jan 26, 2024 12:19 pm

Greetings!

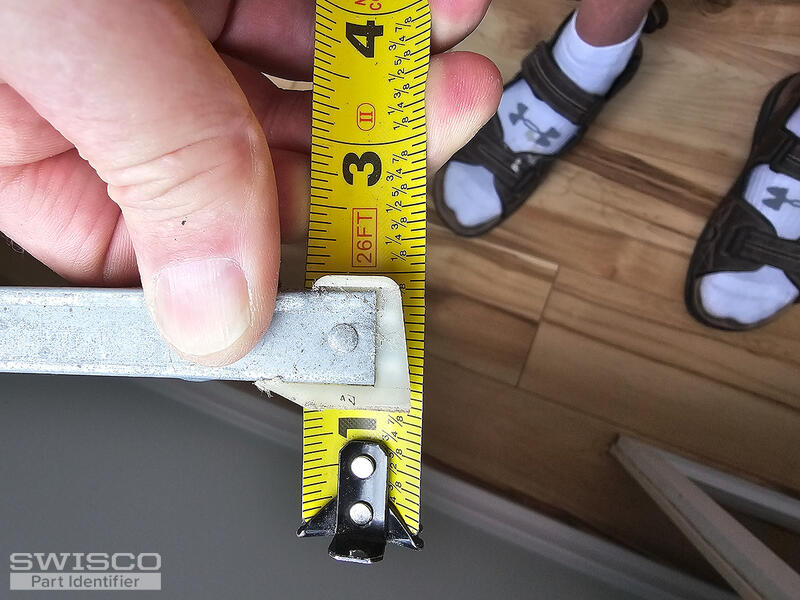

At first glance, this reminds me of either the Series 380 or Series 385 channel balances. You'll have to measure as shown below to determine the best match. If it happens to be 7/8" deep, we can still help via custom order.

There should also be a stamp printed on the metal channel of the balance. Those numbers will tell you what strength option to select.

Let me know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Florida

Jan 26, 2024 5:10 pm

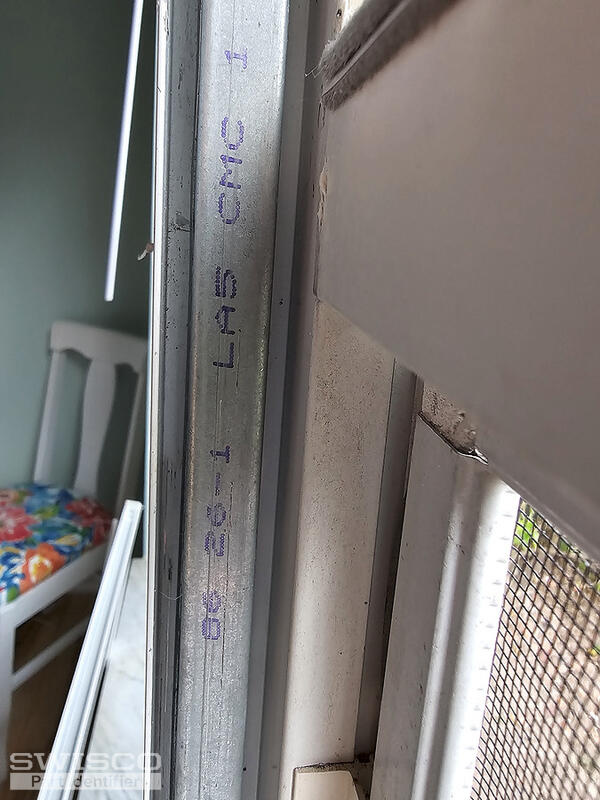

I found one tackle that had markings on it. The measurement I have is 7/8" on the bottom, closer to the 15-005. the photo doesn't show it very well.

2 user uploaded images

Emily from SWISCO

Jan 29, 2024 10:45 am

Thank you kindly for getting back to us! I'm glad you showed me the stamp. This will have to be a custom order due to the 86 stamp. That tells me that your balance has a special calibration that isn't matched by any of our standard parts. What I will do now is email you an order link for (2) balances that you can use to place an order on our website. Please note that there is a 5-6 week lead time as well.

Let me know if you have any questions!
