Home Owner from los angeles, ca

Jul 17, 2024 12:46 pm

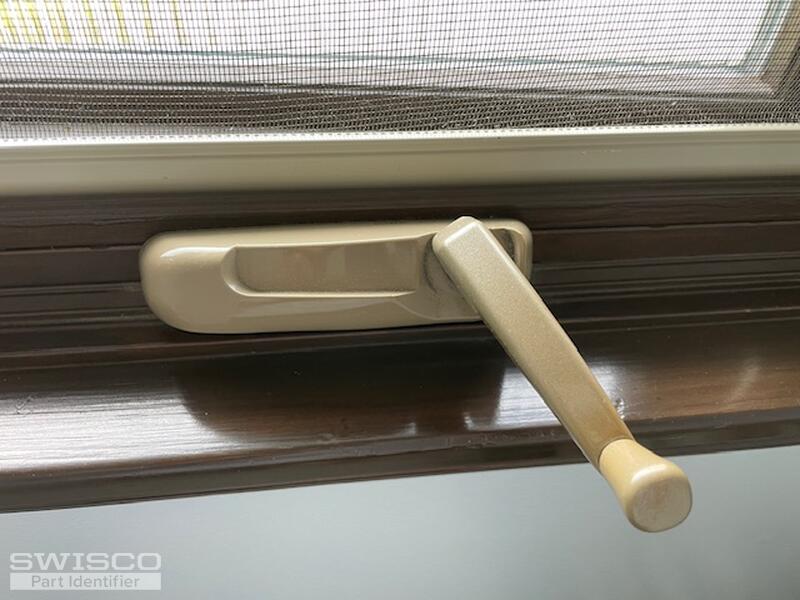

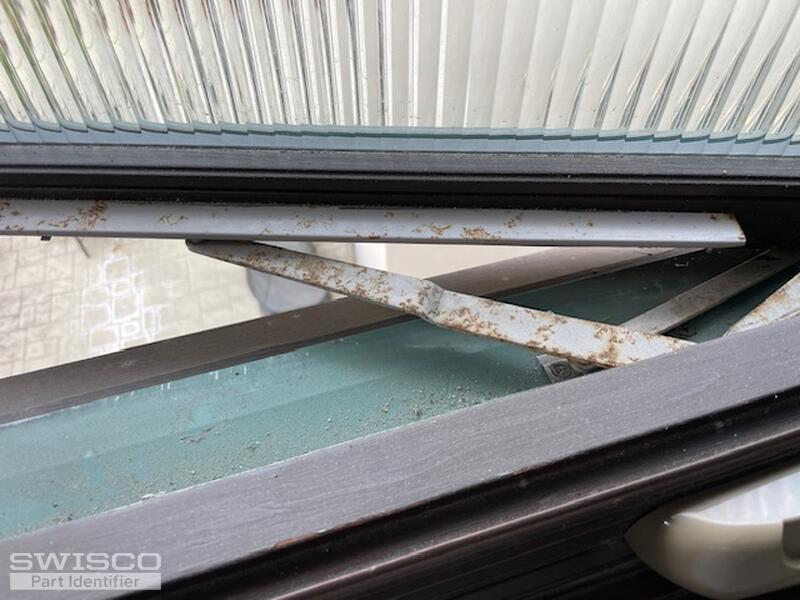

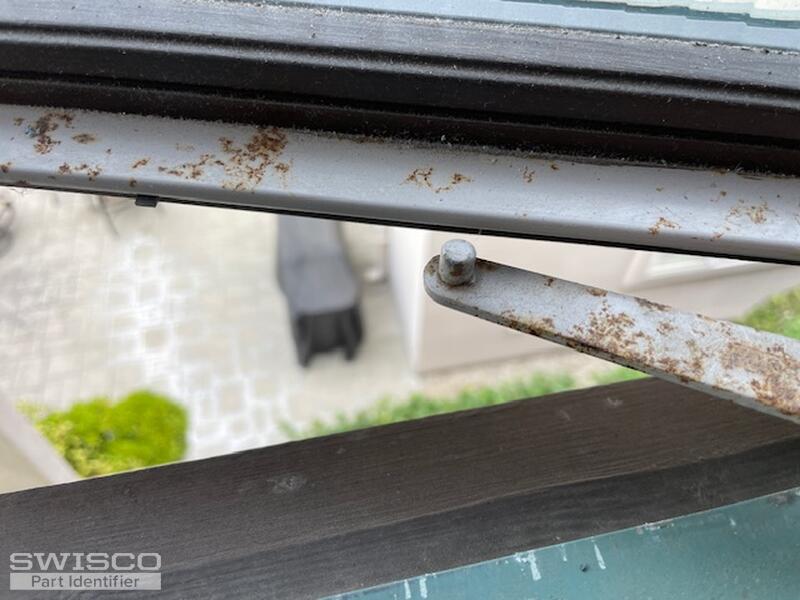

Hi, I've looked all over and can't find any names or markings on these parts. I'm looking to replace the crank and operator set. The screw must be stripped and the crank doesn't work and one of the swing arms just comes off.

5 user uploaded images

7 Replies

Casey from SWISCO

Jul 19, 2024 3:15 pm

Hello,

Your operator resembles one of the Encore-style assemblies shown in the video below. The determining factor would be the fitting that attaches the long arm to the sash.

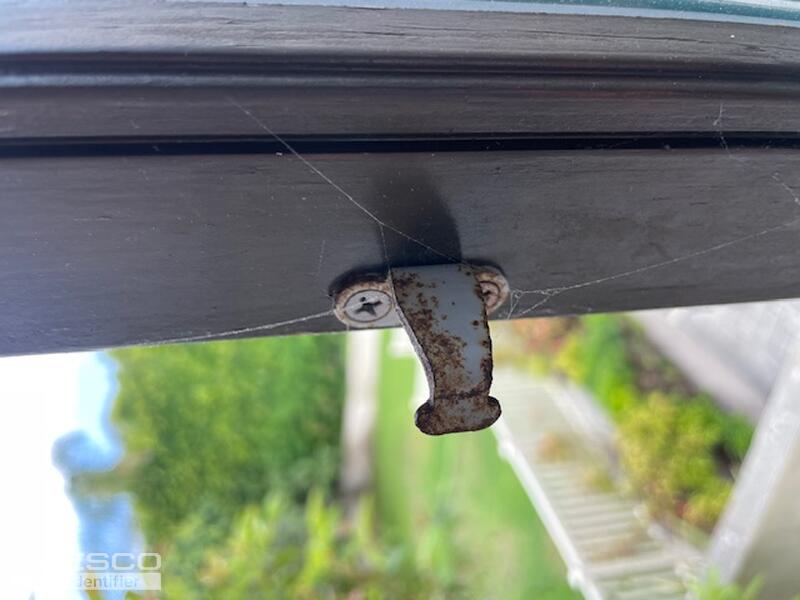

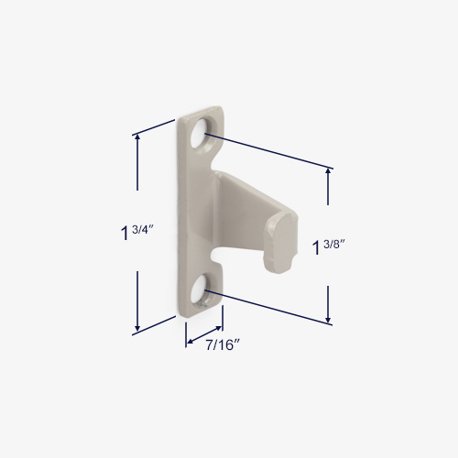

As for the keeper shown in your photos, take a look and compare the dimensions of the 38-079 and 38-089 to yours.

Alternate image for 38-079

Alternate image for 38-089

Home Owner from los angeles, ca

Jul 19, 2024 9:31 pm

that does look like what I have!

Casey from SWISCO

Jul 22, 2024 8:46 am

Great! Just let us know if you need anything else.

Home Owner from los angeles, ca

Jul 22, 2024 5:41 pm

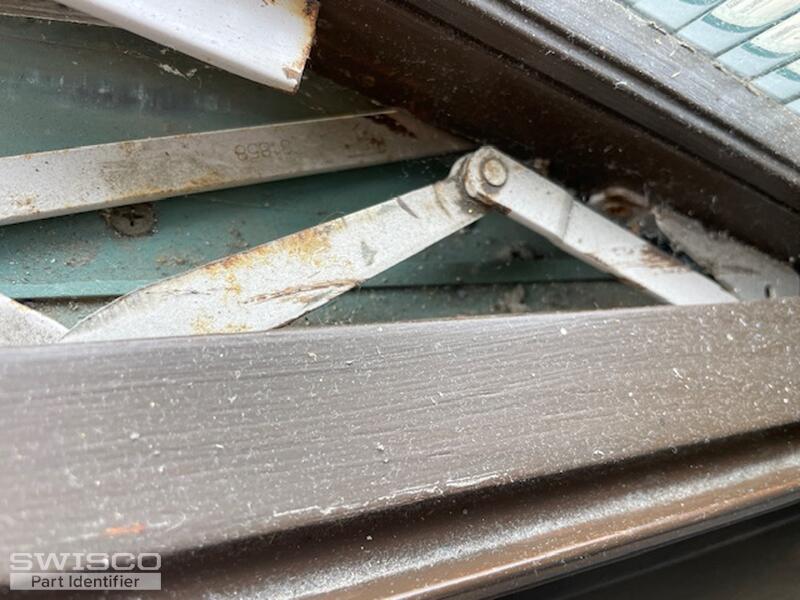

thank you, I found a marking on part of the hardware that says Truth 31858. The long arm is 10 1/4", the short arm is 5" and the swivel arm is 5". The base with crank that attaches to the window frame is 5. The window opens wide on the left side with the crank on the right side. Which one should I buy?

Home Owner from los angeles, ca

Jul 22, 2024 6:16 pm

I went ahead and purchased all the hardware from your site,should arrive in a few days. thank you!

Casey from SWISCO

Jul 23, 2024 7:53 am

We're happy to help! I see that you purchased the 39-253LB and 39-253RB style operators, which uses the 39-529 track slider. See the dimensions from our product page below.

Dimensions for 39-253LB
