window channel

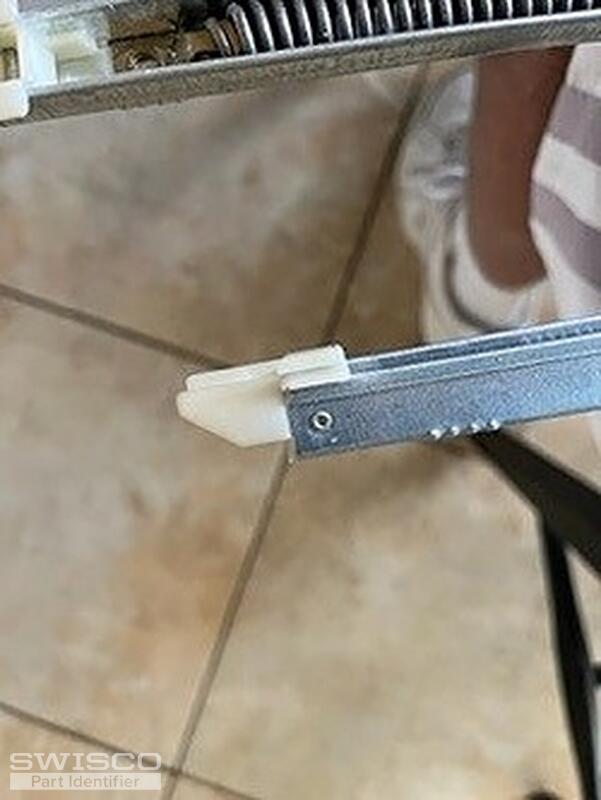

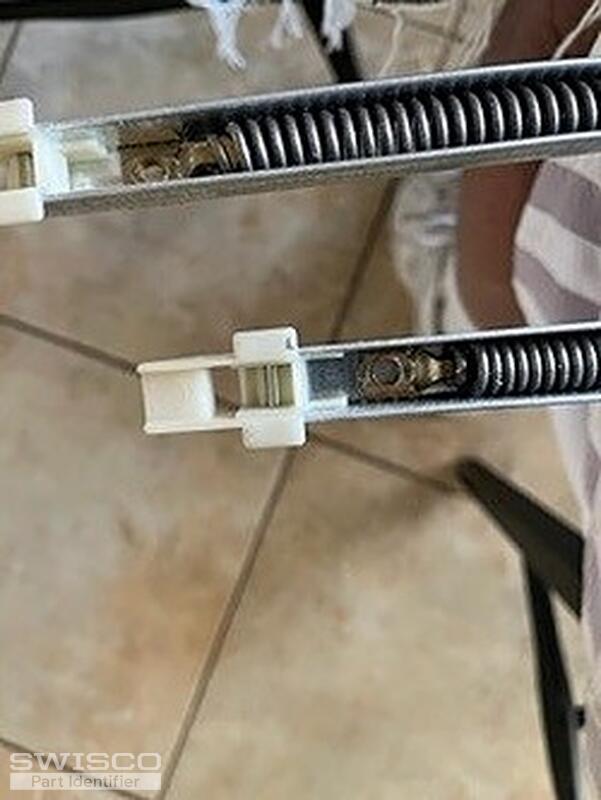

Thanks for posting! Your channel balances appear to be either the S380-33 with a 1" shoe or the S385-33 with a 1-3/32" shoe. To determine which series is needed for your window. Look over the dimensions from the diagram below to confirm the depth of your bottom shoe.

Let me know if it does not match either measurement. You'll need to select the 3260 stamp for a window weighing 32 to 35lbs.

Comparison of the S378, S380 and S385 balance shoes.
