hello,

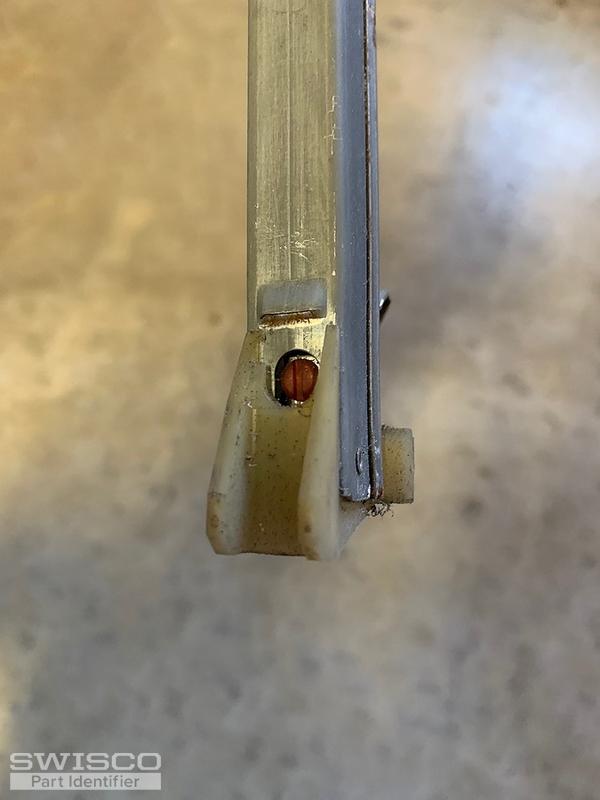

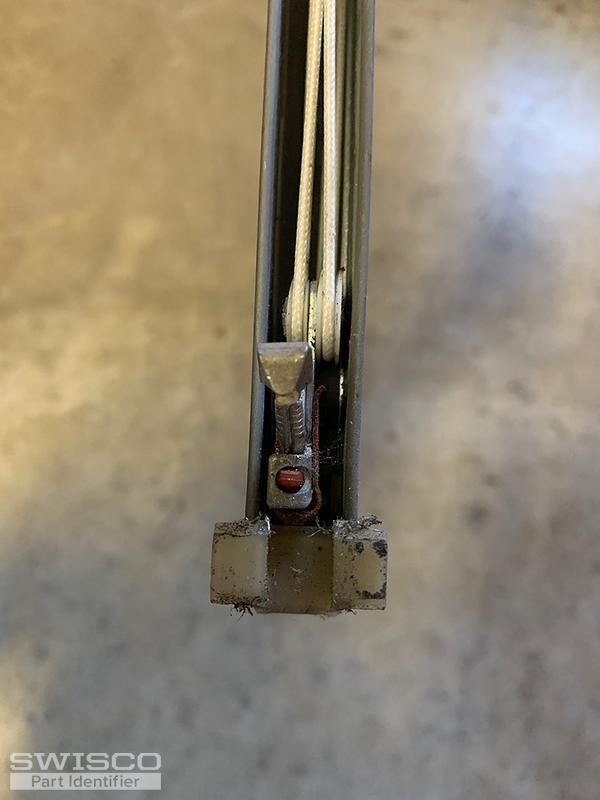

I'd like to order four channel balances and i have some photos to help with identifying the part. Please reach out if you need further info. If not, please let me know which part to order from your site.
23 9 30# JK CALDWELL
Thank you,
Armando
With this combination of attachments, you could have either an S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.
Thank you and let us know if you have any other questions or concerns.
