window channel balance

A handy person from Orlando, Florida says:
October 16, 2021

length of window balance is 17 inches width is 1/2 inch

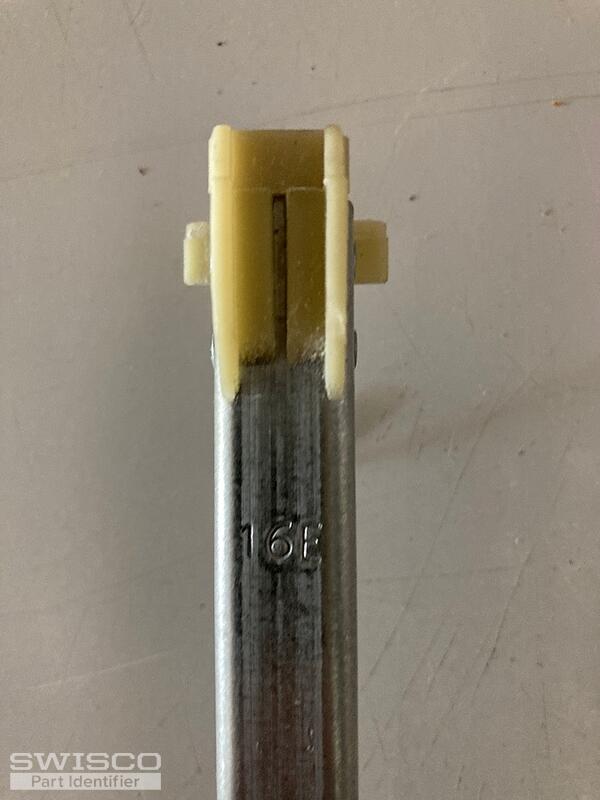

Only number marking is 16E as seen in 1763 jpg

Don't know the window make/manufacturer

Would like to order 2

Need to replace because the string broke inside

on one of the balances.

Gary

thanks

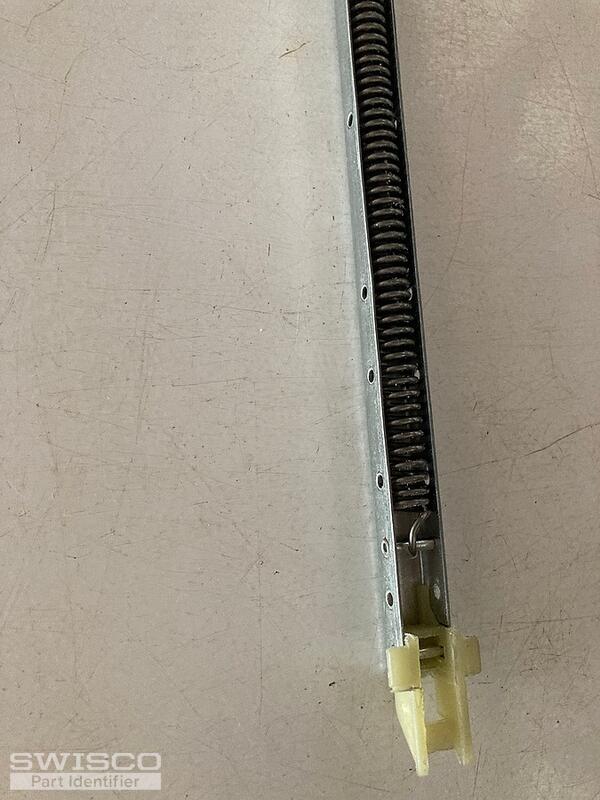

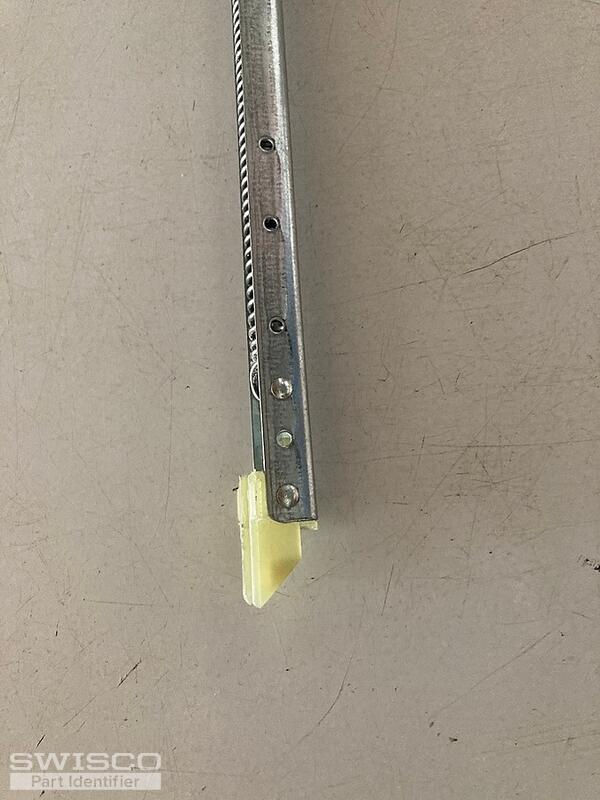

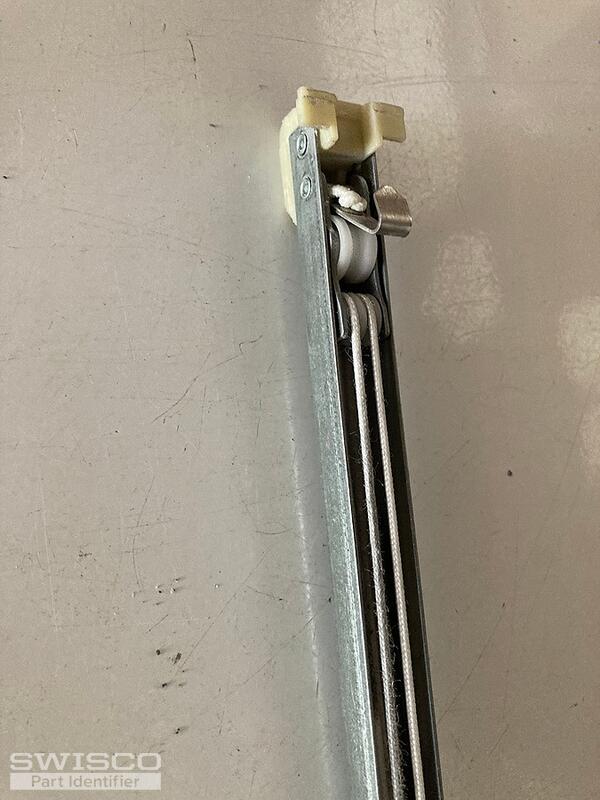

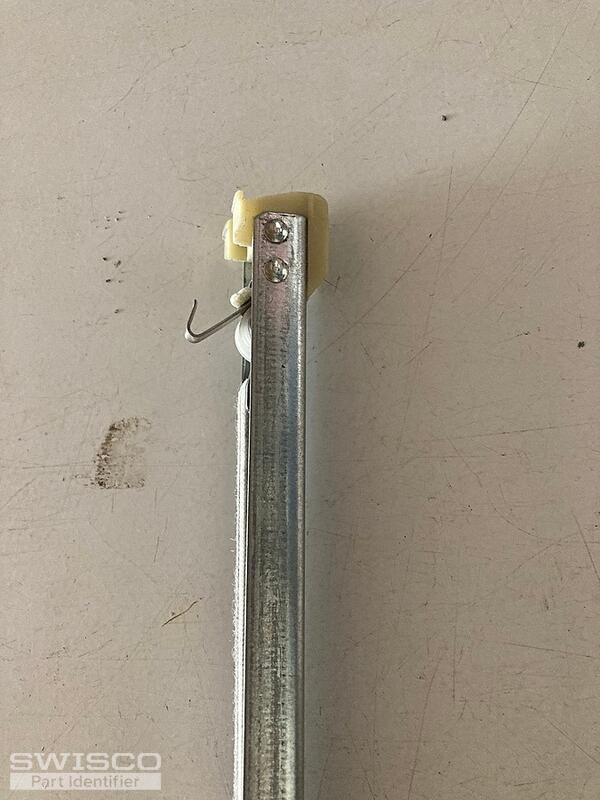

Thumbnail of the uploaded file named IMG_1763.jpg
Thumbnail of the uploaded file named IMG_1767.jpg
Thumbnail of the uploaded file named IMG_1768.jpg
Thumbnail of the uploaded file named IMG_1769.jpg
Thumbnail of the uploaded file named IMG_1770.jpg
Profile picture of Emily
Emily from SWISCO responded:
October 20, 2021

Hi, Gary.

At first glance, this looks like either our S380-17 or S385-17 channel balance. The S380 uses a 1" bottom fitting and the S385 uses a 1-3/32" fitting. However, your bottom fitting looks like it might be less than 1" but pictures can be deceiving so we suggest measuring yours to be 100% sure. If it is indeed less than 1", this will have to be a custom order. Let us know what you find and we can go from there.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
17" Series 380 Channel Balance
17" Series 380 Channel Balance
S380-17
$9.34
17" Series 385 Channel Balance
17" Series 385 Channel Balance
S385-17
$9.34
Winged Channel Balance Shoe, 7/8" Depth
Winged Channel Balance Shoe, 7/8" Depth
15-029
$0.82
