window channel balance

Home Owner from California

Jul 14, 2025 1:44 pm

Hello, We need to replace our Milgard window channel balance (Style Line series), which is stamped 23 3 GX CMC 11 (this is the only marking we can find). The window was installed in 2004. Would you be able to assist us?

8 Replies

Casey from SWISCO

Jul 17, 2025 12:29 pm

Hello,

We'd be happy to look into this for you but we'll need a bit more information to narrow down your options. If you could show us the connecting point between the spring and pulley inside the metal channel, as well as both end fittings, that would help us confirm if our stock balances could work for your repair or if they would need to be special ordered. Thank you!

Home Owner from California

Jul 21, 2025 11:45 am

Hi Casey,

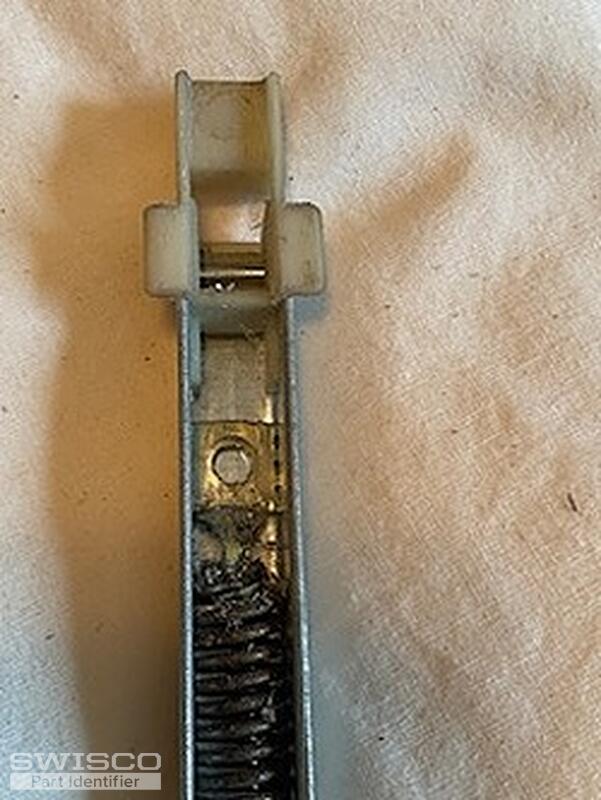

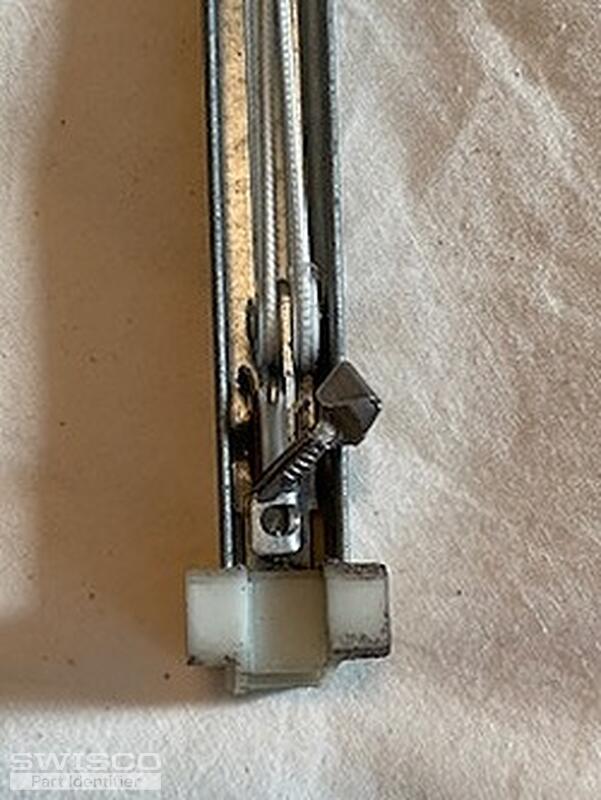

Thank you very much for your assistance. I've attached a few photos of our current balance. Please let me know if you have any questions.
Kindly,
Jennifer

5 user uploaded images

Casey from SWISCO

Jul 21, 2025 1:16 pm

Thanks for getting back to us! With this combination of attachments, you could have either the S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2330 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.
