window coil balance

Quick Learner from Stony Brook NY

Apr 3, 2024 11:15 am

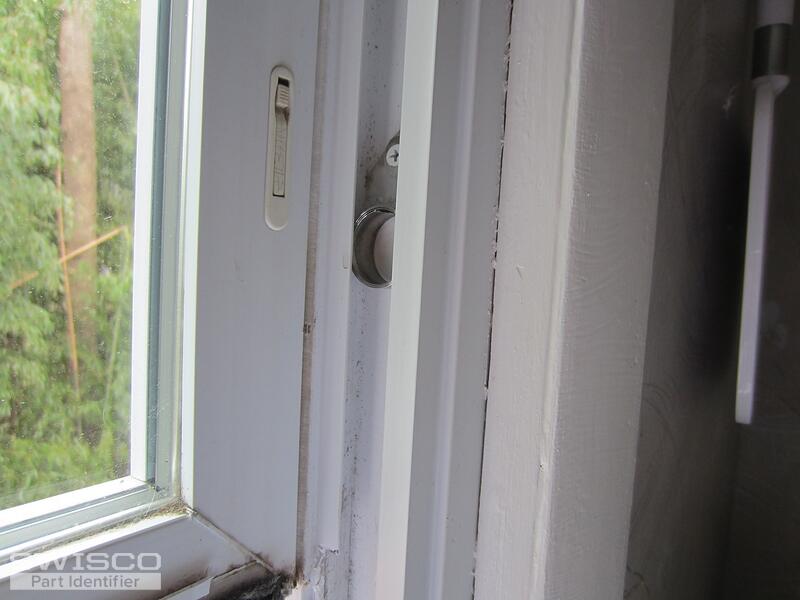

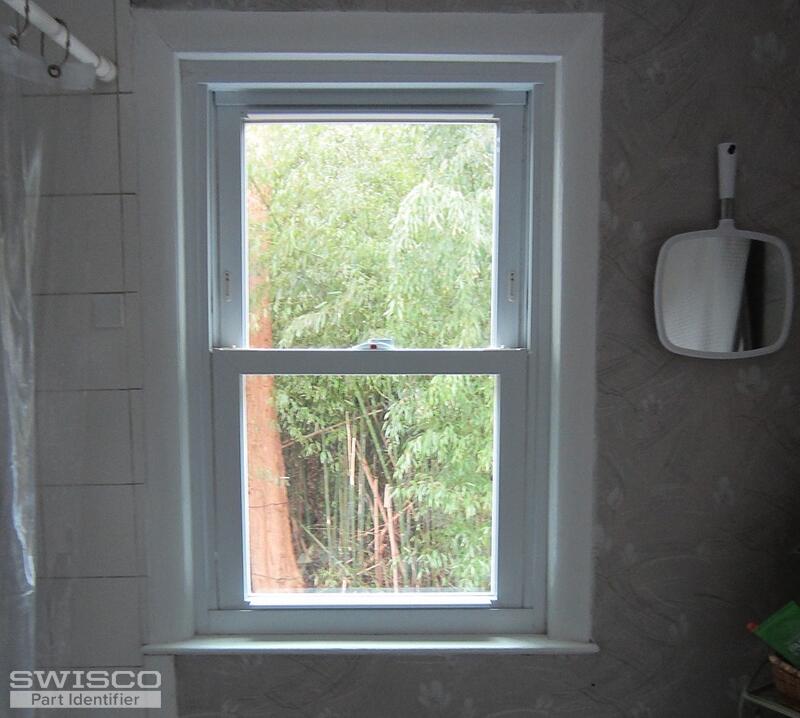

There springs in the window tract which can seen in pictures--How do they come-out? Are they attached by screws?--What should my system look like

5 user uploaded images

3 Replies

+ Add a Comment

Casey from SWISCO

Apr 4, 2024 11:26 am

EXPERT

Hello,

Your housing pivot resembles the 15-087, which uses the Series 180 coil springs. You'll need to remove the coils to locate the stamps that correspond to our S180 strength options. We'll also relate the accessories used with this coil balance to compare to your hardware. Thanks for posting!

Detail of 15-087

Series 180 coil balance diagram

Quick Learner from Stony Brook NY

Apr 4, 2024 4:43 pm

How do I remove the coils from the tract? How are they attached? Is it a screw?
I tried to pull them out--they seem attached to the inside of the tract.

Casey from SWISCO

Apr 5, 2024 8:13 am

EXPERT

The end of the coil is attached to the top mounting bracket as shown in our diagram. If you unscrew the bracket, the rest of the broken coil will come out with it.
