window crank

A home owner from Hagerstown MD 21740 says:
May 28, 2023

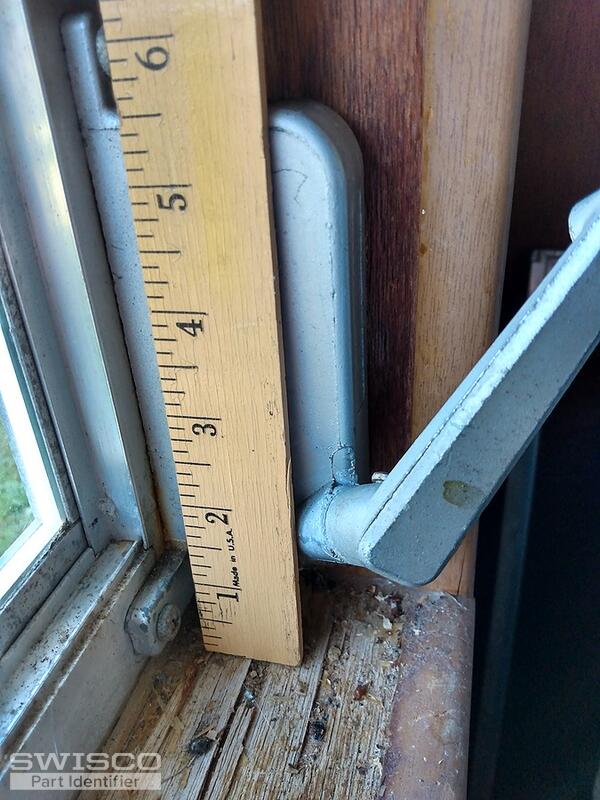

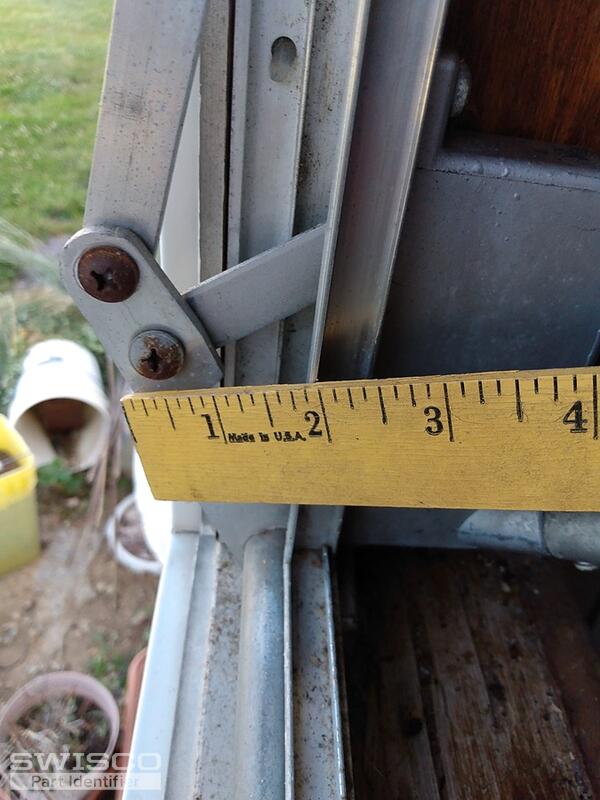

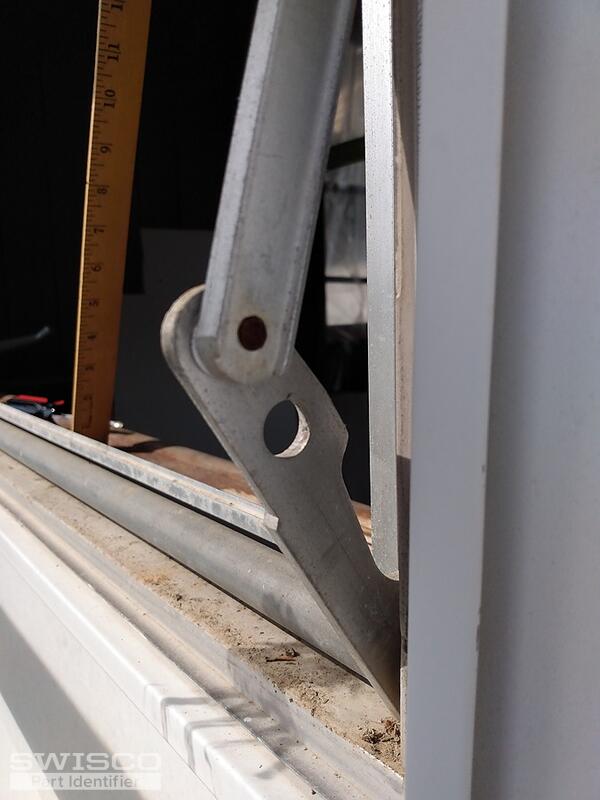

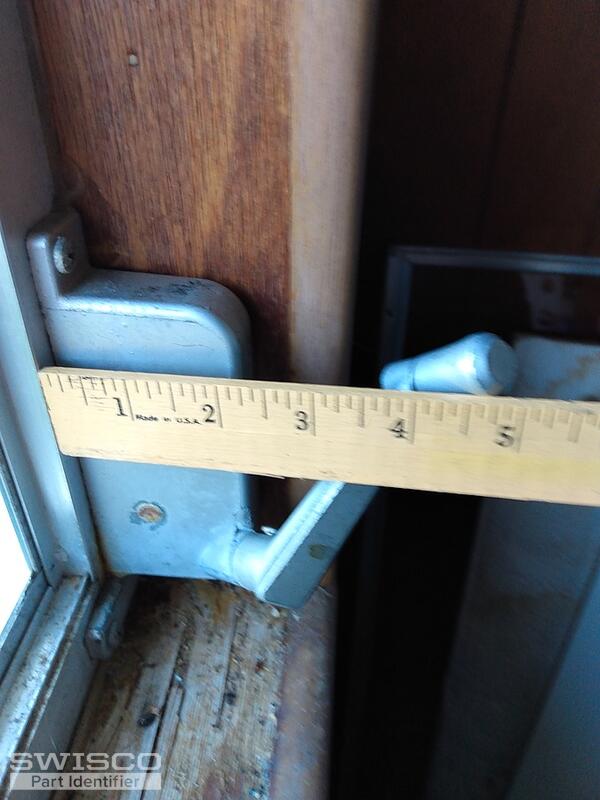

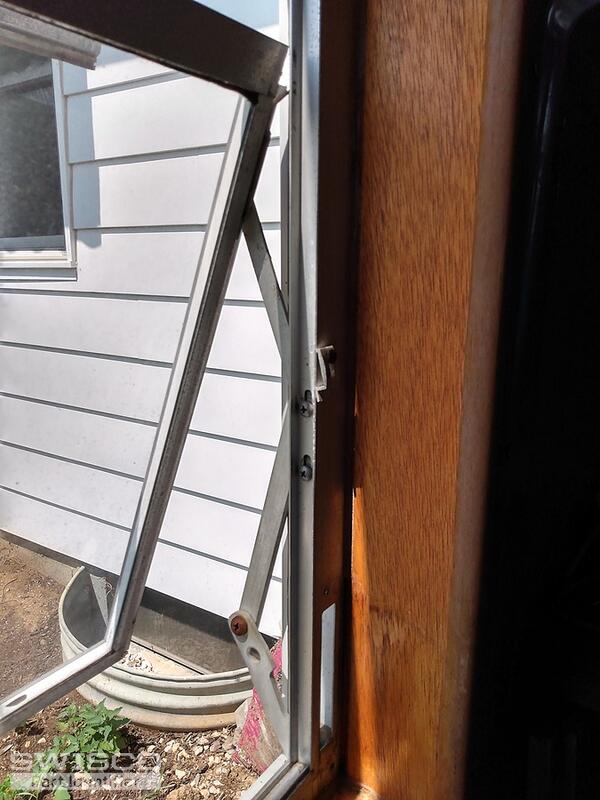

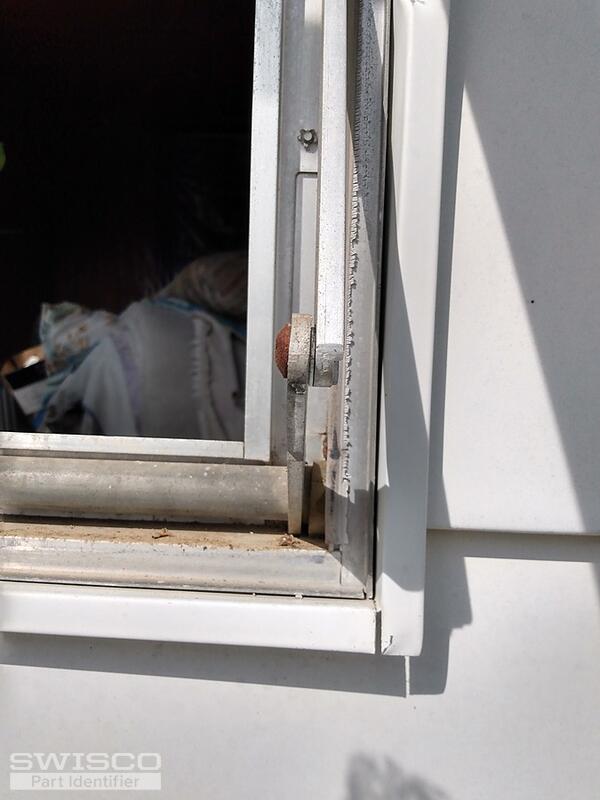

I need to replace hand crank and screws. For a crank out window.
Thumbnail of the uploaded file named crank7.jpg
Thumbnail of the uploaded file named crank6.jpg
Thumbnail of the uploaded file named crank5.jpg
Thumbnail of the uploaded file named crank4.jpg
Thumbnail of the uploaded file named crank3.jpg
A home owner from Hagerstown MD 21740 says:
May 29, 2023
I forgot to add this information. Stamped inside is LEMCO SERIES 30
Croft Metal Prod Inc. McComb Mississippi
Profile picture of Emily
Emily from SWISCO responded:
May 31, 2023

Hello there!

Thank you for reaching out to us. We may have a replacement for this operator but we will need more information to help narrow down your options. Can we see a photo of this operator completely removed from the window, including dimensions and a clear view of the installation holes, as well as the arms that attach to the internal linkage of the window?
A home owner from Hagerstown MD 21740 says:
June 4, 2023

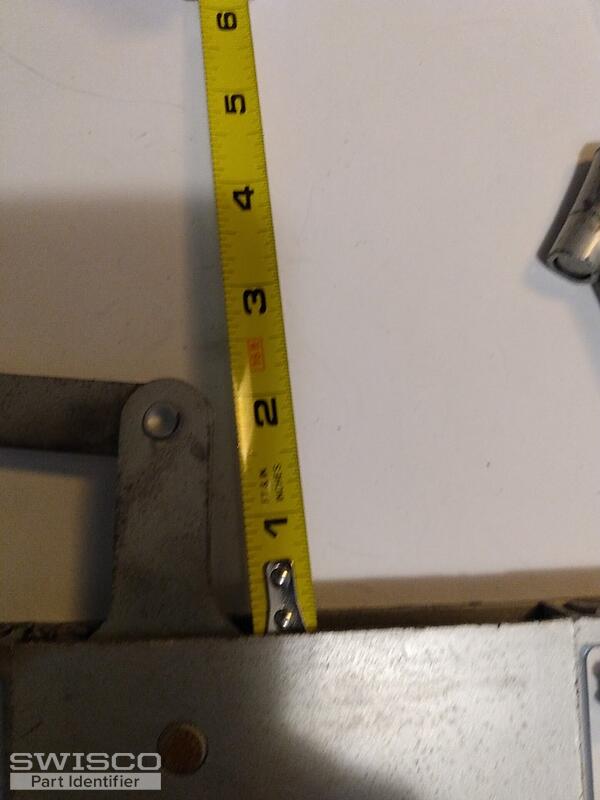

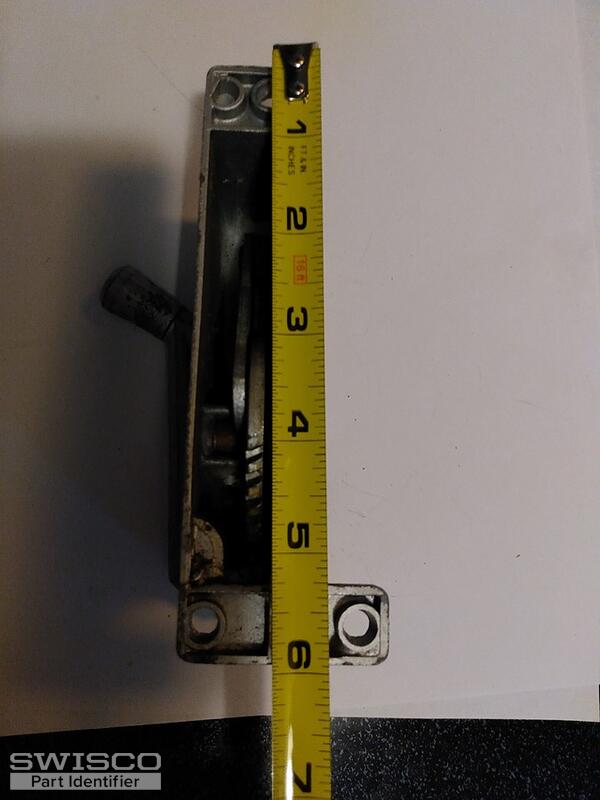

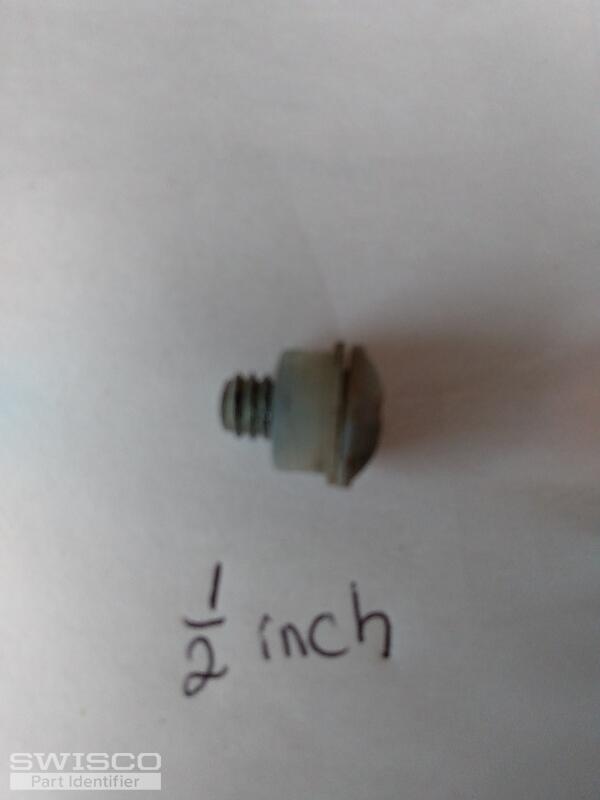

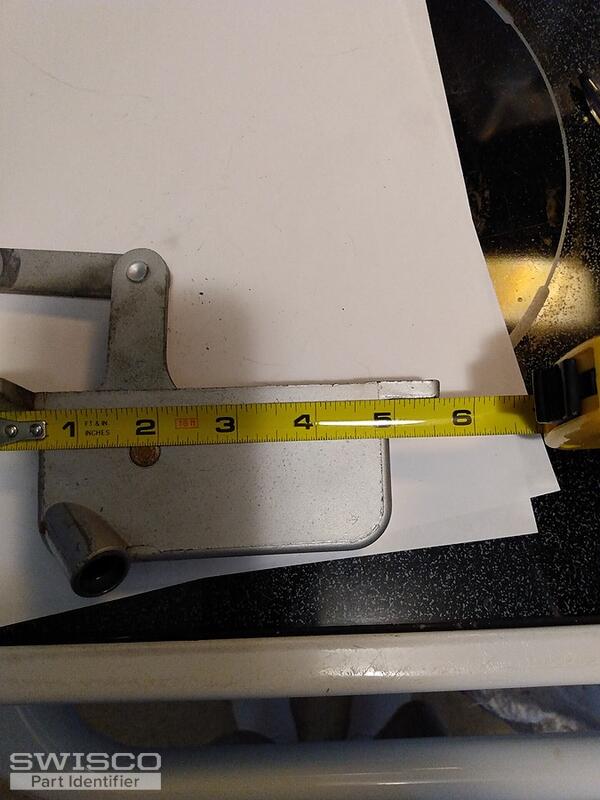

Reached max photos bottom holes are 1 1/2 inches apart at center of each hole. 1 3/4 inches total width of bottom. Only one top hole drilled out. Mounting screws are 6/8 inch.
Thumbnail of the uploaded file named parts 2 6-4.jpg
Thumbnail of the uploaded file named parts 4 6-4.jpg
Thumbnail of the uploaded file named 7 6-4.jpg
Thumbnail of the uploaded file named 13 6-4.jpg
Thumbnail of the uploaded file named 14 6-4.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
June 5, 2023

I recommend you start by comparing your operator with the 39-017 as well as the 33-067 shoulder screw and 33-207 washer. Carefully review the specifications and see how they line up with your old operator.
Pan Am/Daryl Window Crank
Pan Am/Daryl Window Crank
39-017
$17.98
Pan Am/Daryl Window Crank
Pan Am/Daryl Window Crank
39-016
$17.98
3/8" Shoulder Screw, 5/16"-18 Thread
3/8" Shoulder Screw, 5/16"-18 Thread
33-067
$1.10
Shoulder Bolt Bushing
Shoulder Bolt Bushing
33-207
$0.85
#10 x 1/2" Pan Head Phillips Screw
#10 x 1/2" Pan Head Phillips Screw
33-081
$0.18
