Handy Person from Moline, IL

Sep 2, 2023 9:45 am

Hello, I'm looking for a window crank assembly for this Simonton window.

3 user uploaded images

7 Replies

Emily from SWISCO

Sep 5, 2023 2:40 pm

Hi there!

We should be able to help with this. However, I'm afraid the operator's arms are too obscured so I'm not able to identify it just yet. May I see a full bird's eye view of the arms?

Handy Person from Moline, IL

Sep 5, 2023 5:21 pm

Thanks for the response, I'll get you a better picture ASAP.

Handy Person from Moline, IL

Sep 11, 2023 10:28 am

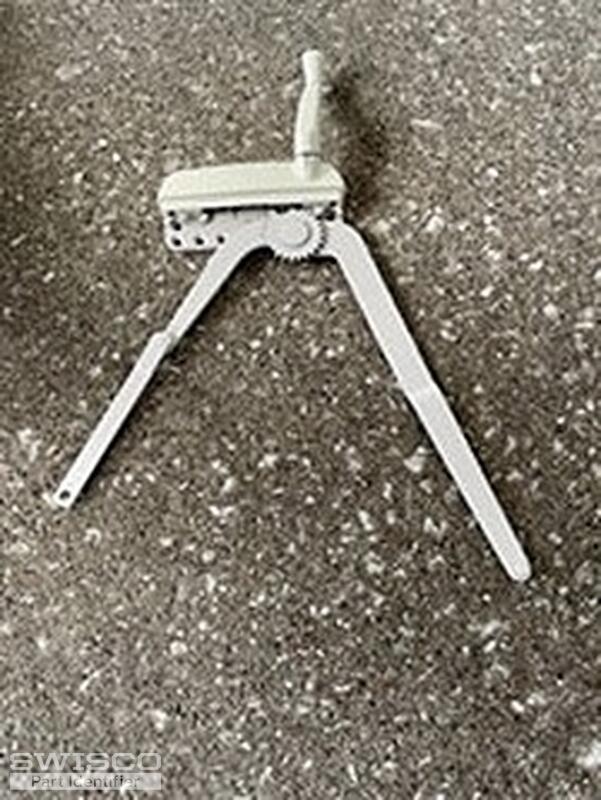

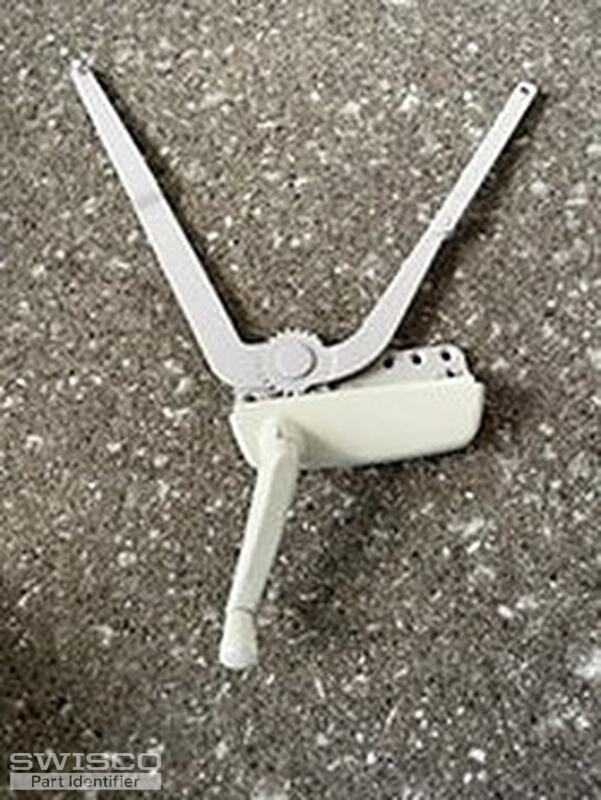

Hello, this is the operator I'm looking for, the solid arm is 10" long, the hinged one is 9" long, the only info stamped in the part is numbers 41012 and 31876. Thanks, Mike

3 user uploaded images

Emily from SWISCO

Sep 11, 2023 10:48 am

Thank you for getting back to me, Mike! This looks like our 39-253RB operator which uses the 39-529 track slider to me. Take a look at the specifications and see if you agree.

Note, the 39-529 is sold separately.

Dimensions for 39-253RB

Handy Person from Moline, IL

Sep 11, 2023 11:28 am

Thanks, I just placed an order for the parts!

Emily from SWISCO

Sep 11, 2023 11:54 am

We appreciate your business! Please let us know if you need anything else and best of luck with the repair!
