window crank and mounting screws

Start a new Discussion

Home Owner from moutrie

Sep 1, 2017 12:37 pm

I have LOOK window cranks. I need replacement crank and the screws to muon to the casing. thanks kenny

5 Replies

Tom from SWISCO

Sep 1, 2017 3:00 pm

Hi, Kenny. Can we see a photo of this crank? We'd like to see it to identify it.

Home Owner from moultrie, GA.

Sep 1, 2017 5:17 pm

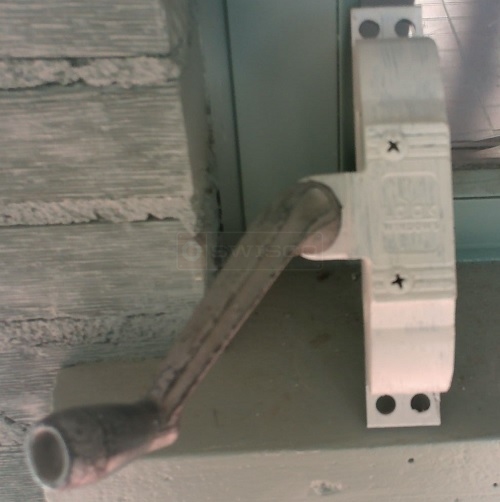

here is picture. has LOOK Lock on front. Home was built in 1957. may not have exact but one that works the measurements were same ase one in your asst. Thanks Kenny

Tom from SWISCO

Sep 7, 2017 1:52 pm

Thanks for the photo. I am afraid your exact operator from Look is no longer available. I'd like to encourage you to take a look at our 39-256B and our39-257B newer style operators. These are not as heavy duty as yours; however, these are the only substitutes available. Also look at our 33-081 mounting screws. Lastly you may also want to check out our 33-207 shoulder bolt bushing and 33-067 shoulder screw to see if you need to replace these in your window as well.

Home Owner from Tennessee

Mar 5, 2019 12:57 pm

The 39-257B crank is perfect match for awning windows on house built 1961
