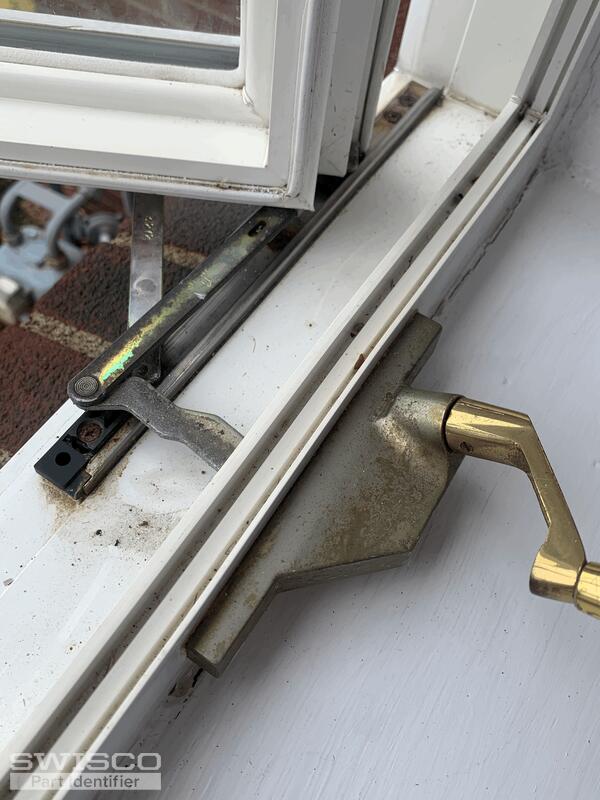

Very old Simonton windows.
Some of the cranks are on the left side.Picture uploaded is on the right side.
Bright brass if not white will work all windows are white.
Window cranks 5-1/2" x 5/8" tall 1" with screw hole mount on bottom
Crank Handles 3" long

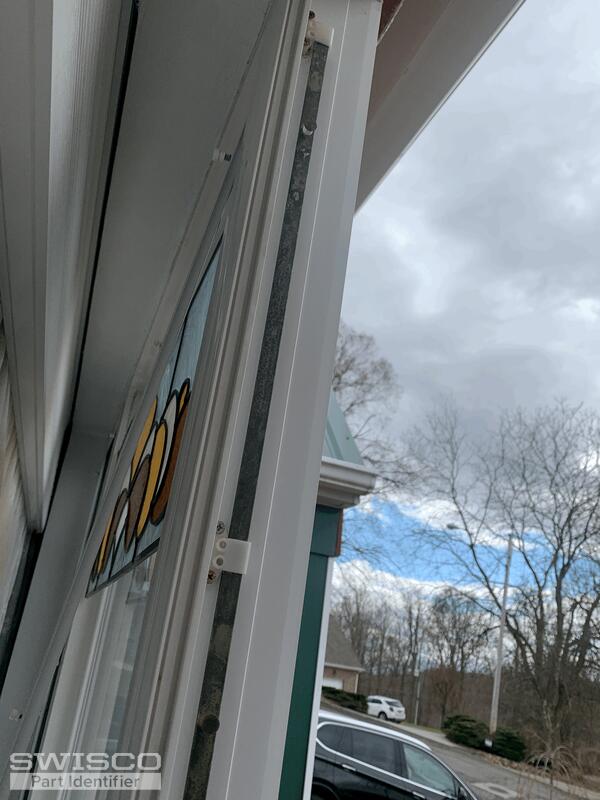

Tie bar 38-7/8" has 3 interlock roller
Locks 4" tall 3/4" wide 4-1/2" tall with handle 7/8" deep
Thanks for your help!
We can help with most of what you show us here. To start, see our 39-188 and 39-187 operators as well as our 38-058L and 38-058R locks. We also sell the 39-114L handle.
The tie bar is a little tricky. The 38-907 is the only size we have that comes close to yours at 38-29/32", but it only has two cone rollers and one lock drive point. I'm not sure if this configuration will work for you but it is the closest option that we have.
