window glazing says 1891

Quick Learner from USA
Need help locating Snap In bead. This goes on a 50-yr old home and I need to make it for another 20-yr.

The half inch side can be a little wider, this is the side that goes on top of the glass. Please note the 3/16 side has bead that lock in to the aluminum track.

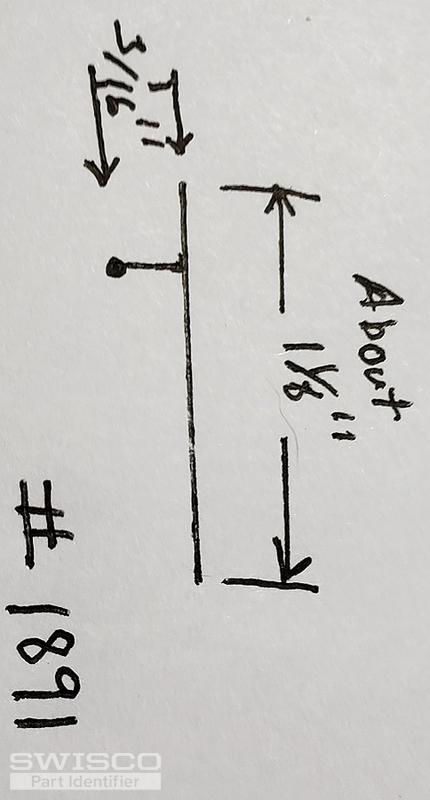

Attach please see a drawing of Vinyl bead #1891 that has no brand. A local glass shop has a 3" sample and does not know where it came from. Item #1891 did fit in the track and it will work on my doors. See if you can find it in silver or gray. I have also attached a picture of the door.

The top part of the bead does not have to be the exact size. The small 3/16" size that has a bead at the bottom is what we need a close fit.
4 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for reaching out to us. The closest match I can find to your snap-in glazing is our 55-197. The back leg is 3/8" and across the top is 11/16". Look it over and see what you think.

Dimensions for 55-197
Dimensions for 55-197
