window hardware

Start a new Discussion

Handy Person from NY

May 3, 2019 1:10 pm

Looks like the UV has taken its tool on these plastic parts. Fiberlux Mt Vernon NY 17D

2 user uploaded images

6 Replies

Bob from SWISCO

May 3, 2019 1:11 pm

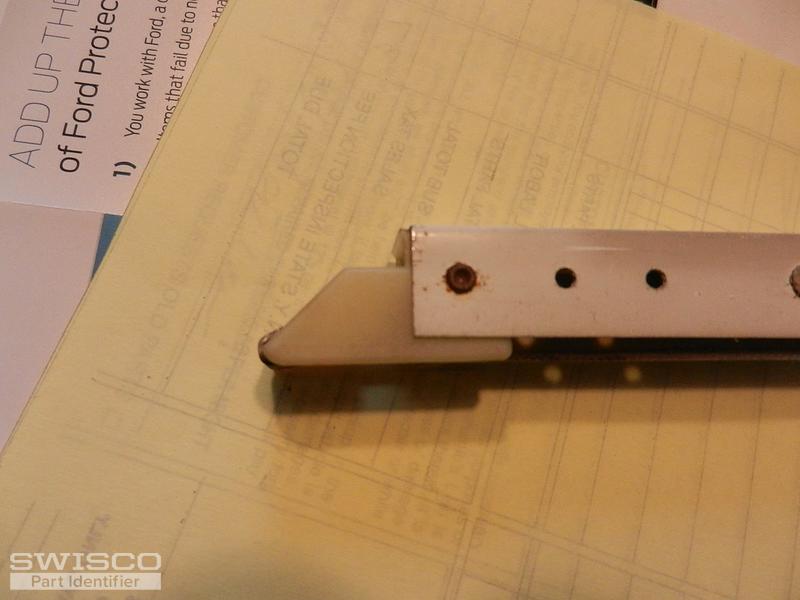

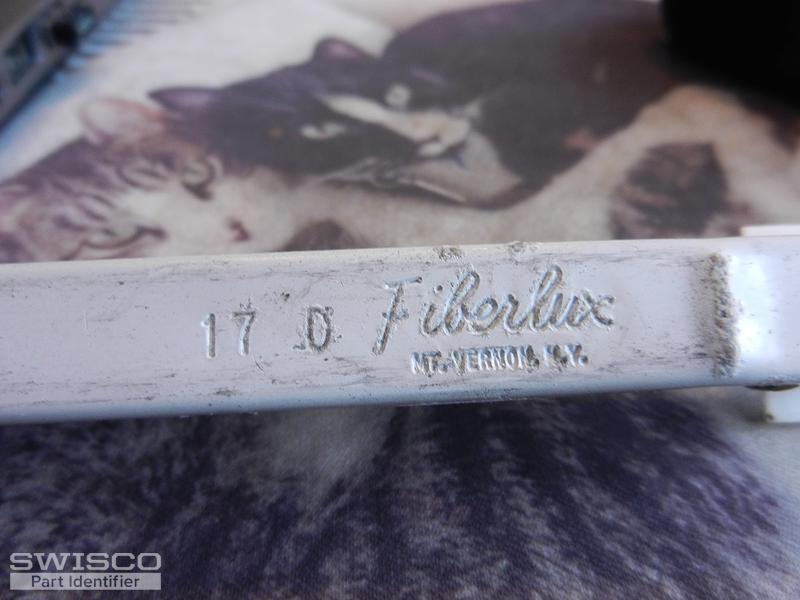

Thanks for posting. Can you show us the nylon attachment at the other end of the balance. Can you also measure the metal channel, not including the nylon attachments? There should also be a stamped code right next to the Fiberlux stamp on the metal channel; can you show us a picture of that code? From there, we'll try and narrow down what you need.

Handy Person from NY

May 5, 2019 12:07 pm

The metal channel is 18 inches long.

3 user uploaded images

Paul from SWISCO

May 6, 2019 1:04 pm

Many thanks for writing in. For your Fiberlux window, you will need S350-18 Channel Balance. The spring option of 17D conforms to our stamp option of 1740, for a sash weighing 14 through 17 lbs.

Bob from SWISCO

May 10, 2019 12:02 pm

I'm afraid I don't recognize this guide. What is its function? Could you give me its dimensions? We may be able to find something, but I'm not sure.

Handy Person from NY

May 10, 2019 12:21 pm

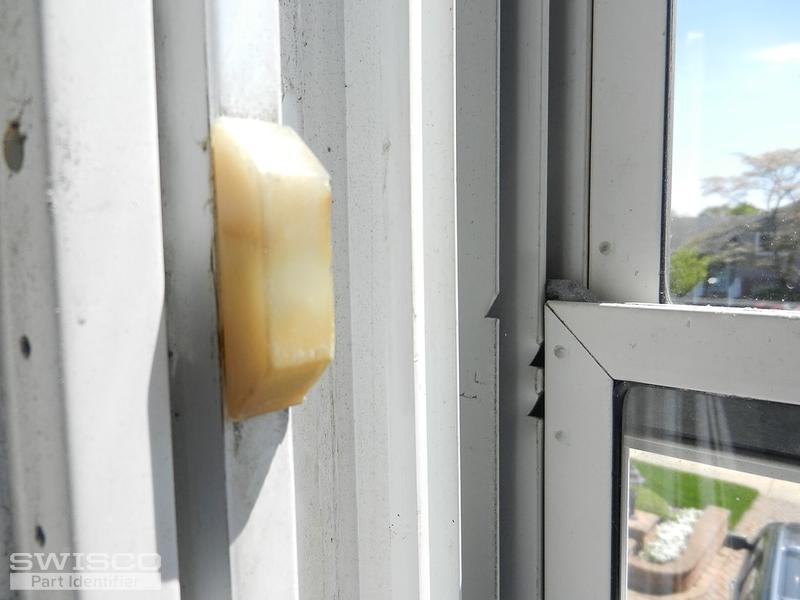

Ok Thanks for that info. Also I need 6 of these glides that are on the window channel. Pictures included.

1 user uploaded image
