window latch : SWISCO.com

Home Owner from Ellendale, DE

Jun 16, 2023 11:29 am

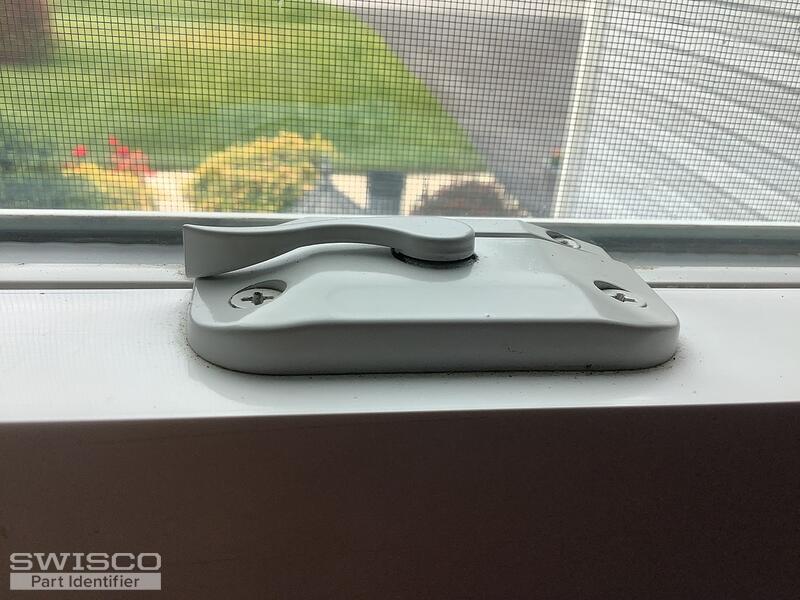

windows were manufactured by B.F. Rich, Newark, DE circa 2010. double hung vinyl.
Woodbridge was the model/style.

2 user uploaded images

7 Replies

Tom from SWISCO

Jun 16, 2023 1:19 pm

We unfortunately don't sell this exact window lock, but we may sell an alternative. Before we go any further, can you tell me the distance between the two installation holes, center-to-center? Can you also tell me the distance from the screw centers to the back edge of the lock?

Home Owner from Ellendale, DE

Jun 17, 2023 8:23 am

Tom,

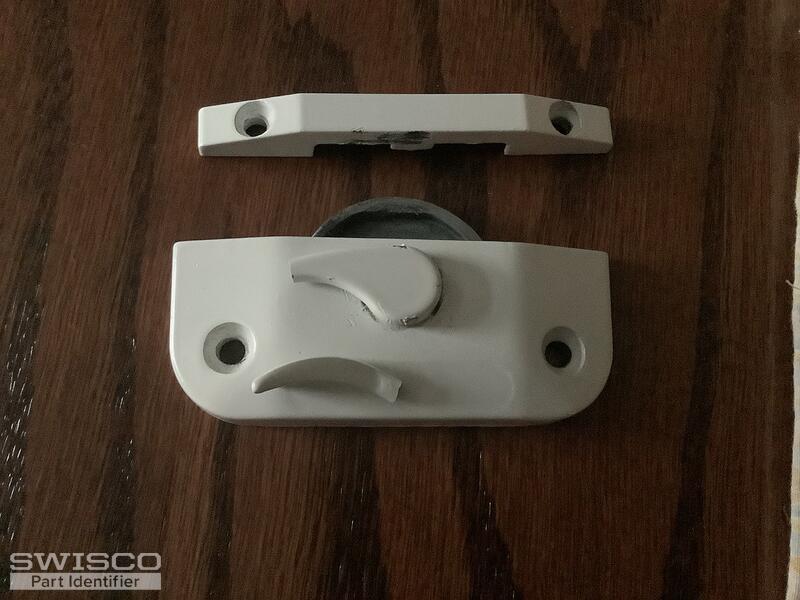

the center-to-center distance between the 2 installation holes is 2 1/16"

the distance from the center of the installation hole to the back edge of the lock is 11/16"

thanks for your help

Tom from SWISCO

Jun 20, 2023 9:29 am

Great, thank you! That's exactly what I wanted to here. With those measurements in mind, my top recommendation is our 90-278. This has the same hole placement as your original, so we know that it will fit in the same space without overlapping with anything, and with no need to drill new holes.

I feel pretty confident that this will work for you. The only thing I'm not 100% sure about is how much clearance you have for the keeper that comes with this product. Ours is 9/32" thick, which should be fine, but in the unlikely scenario that it becomes a problem you can always just reuse your original. Review its specs below and see what you think!
