replacement for two window latches

Home Owner from Campbell, CA
Jun 5, 2016 10:14 pm

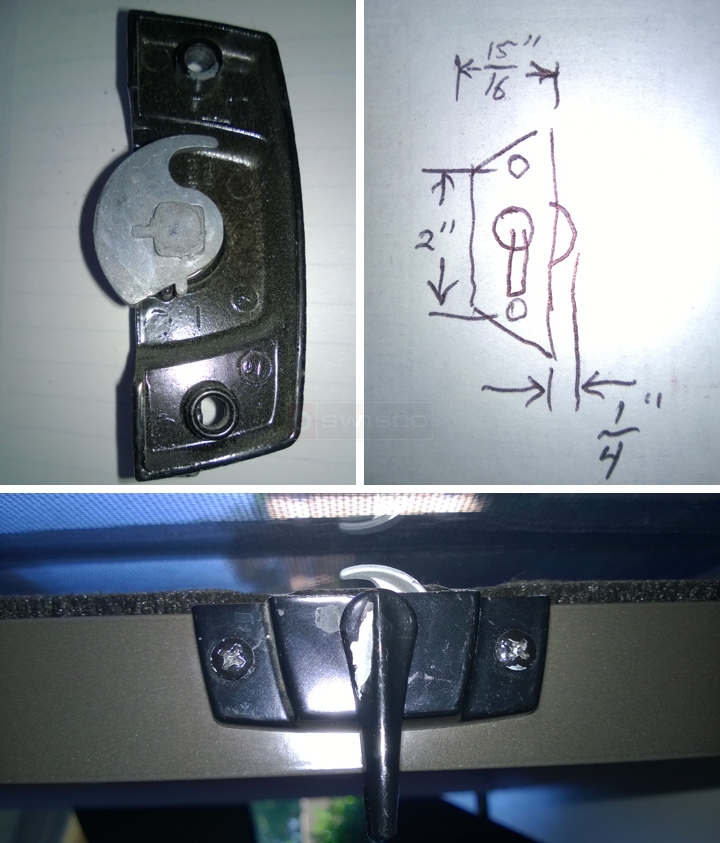

No markings noted on latch. Dimensions included in attached photo.

10 Replies

Home Owner from Campbell, CA
Jun 5, 2016 10:23 pm

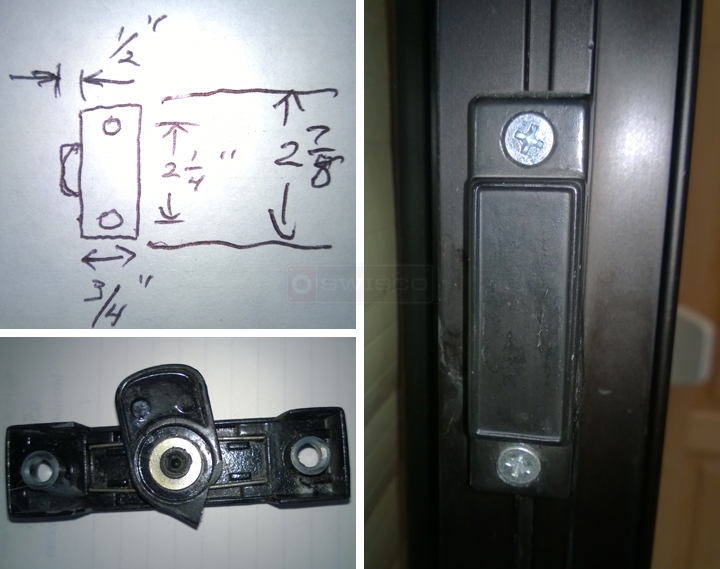

No markings were noted on latch2. Part of the latch arm is broken off. Latch arm appears to be plastic. Can you identify the latch?
Thanks, Randy
Thanks, Randy


Tom from SWISCO
Jun 8, 2016 9:07 am


Thanks for contacting us. Let's look at the second lock to start out. I believe it could be either our 90-005 or 90-009, depending on the style of the tongue. Look them over and see what you think.
I'm not sure about the first lock. Can you confirm your hole spacing? I can't find anything in this style with a 2" hole spacing. Make sure to measure from the center of each hole, not their edges. Can you also give me the offset of the holes? That would be the distance between one of the hole centers and the back, glass-facing edge of the lock.
In the meantime, you can look through our selection of window locks and see if anything here matches up.
I'm not sure about the first lock. Can you confirm your hole spacing? I can't find anything in this style with a 2" hole spacing. Make sure to measure from the center of each hole, not their edges. Can you also give me the offset of the holes? That would be the distance between one of the hole centers and the back, glass-facing edge of the lock.
In the meantime, you can look through our selection of window locks and see if anything here matches up.

Home Owner from Campbell CA
Jun 9, 2016 4:08 pm
Here is the info that you requested on latch1:
hole-to-hole spacing: 2 1/16"
offset of holes (dim from hole to edge near window): 7/16"
Please let me know if you find anything.
Thanks
hole-to-hole spacing: 2 1/16"
offset of holes (dim from hole to edge near window): 7/16"
Please let me know if you find anything.
Thanks

Tom from SWISCO
Jun 10, 2016 11:13 am


Thanks. The closest match I can find is our 90-161. Could you get this to work?

Home Owner
Jun 11, 2016 2:57 pm
Looks like it might, but does it come in a dark color (dark brown)?

Tom from SWISCO
Jun 14, 2016 1:19 pm


Not currently, but we'd happy to bring it in for you. Please give us a little time to have it made up for you. Once it's available, I'll let you know!

Home Owner from Campbell, CA
Jun 15, 2016 11:57 pm
OK. Thanks for all of your help!

Tom from SWISCO
Jun 16, 2016 2:07 pm


Of course, that's what we're here for! Let me know if you need anything else.
