window lock and tilt locks

Landlord from athens tx

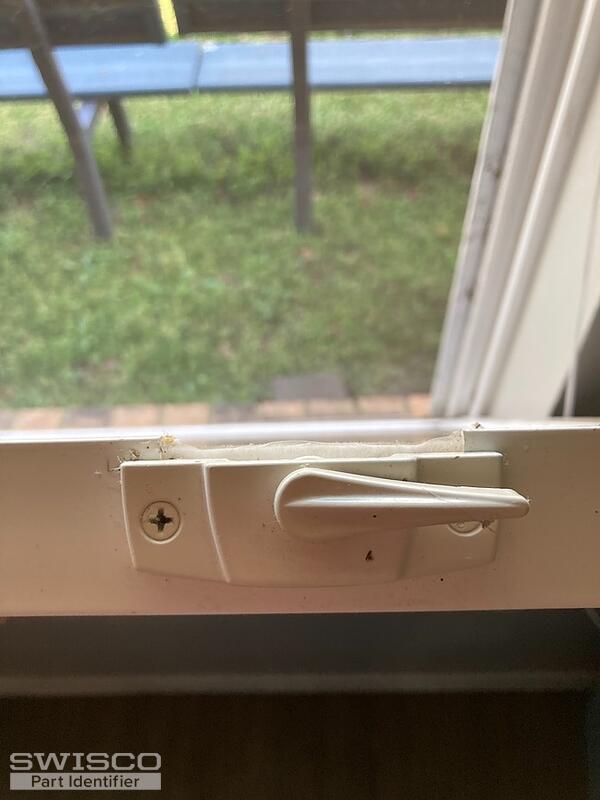

i need help finding tilt locks and window locks also took a piture of the gold tag that is on the window its self

Stephenie

4 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there Stephenie.

Thanks for reaching out to us. We may be able to help depending on the dimensions. For the lock and keeper, can you write out the distance between the two installation holes, measured from center to center? It would also be a huge help if you could write out the backset for the lock; you'll want to measure from the center on the installation hole to the top edge of the lock.

As for the tilt latch, the 26-243 and 26-244 come to mind. We recommend you remove a sample and compare the specifications to see if they match what you need.

Landlord from athens tx

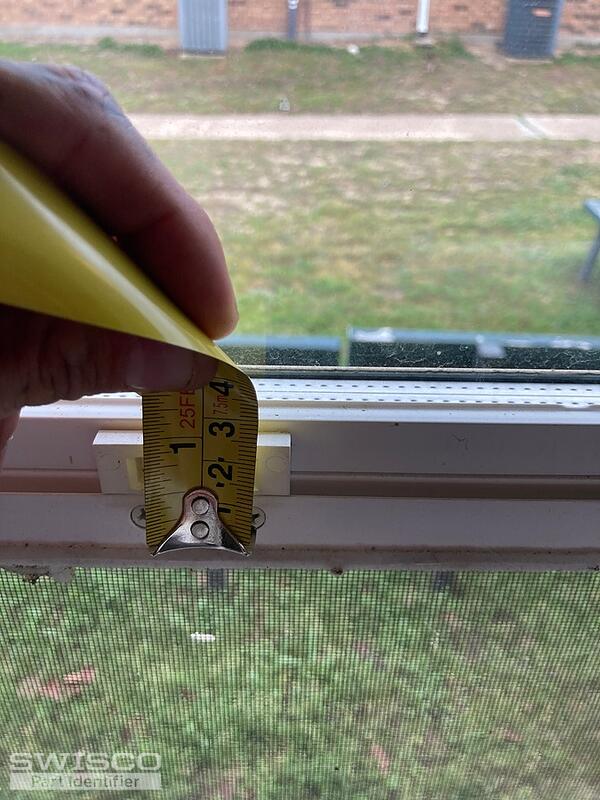

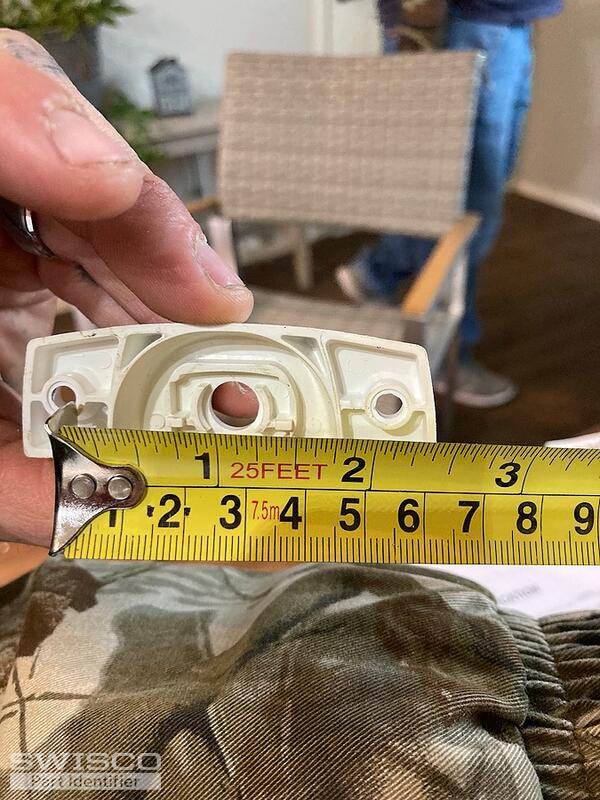

here is the measurement. the lock is 2"1/14 inches took pictures of the other
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

We don't sell a lock with 2-1/14" hole center spacing. Could you have meant 2-1/4" instead? If so, take a look at the 90-274 and 90-180 sash locks. They both have 2-1/4" installation hole center spacing but the backset differs as shown in the photos below.

Dimensions for 90-274
Dimensions for 90-274

Dimensions for 90-180
Dimensions for 90-180

As for the keeper, I'm afraid we don't have an exact match. The 90-169 and 90-185 appear to be our closest options. You'll want to compare the dimensions of our locks and keepers with your old hardware to see if they match up with what you need.

DImensions for 90-169
DImensions for 90-169

Dimensions for 90-185
Dimensions for 90-185
