window number 8

A quick learner from 02860 says:
August 9, 2022

Hello,

This window is in a rental unit, it is a complete mess. It appears that one balance was replaced with something that should not be there. I am limited to 5 images ..

Thank you for your help,

Daniel

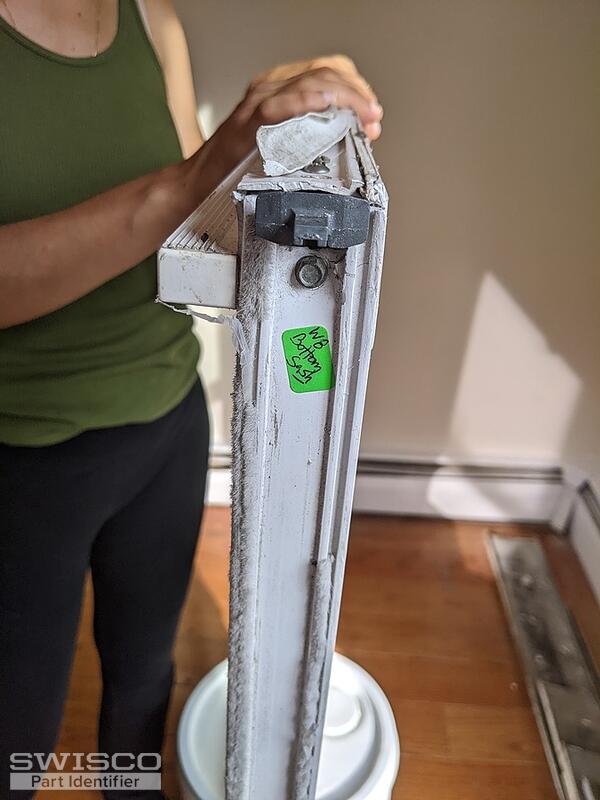

Thumbnail of the uploaded file named PXL_20220808_213235964.jpg

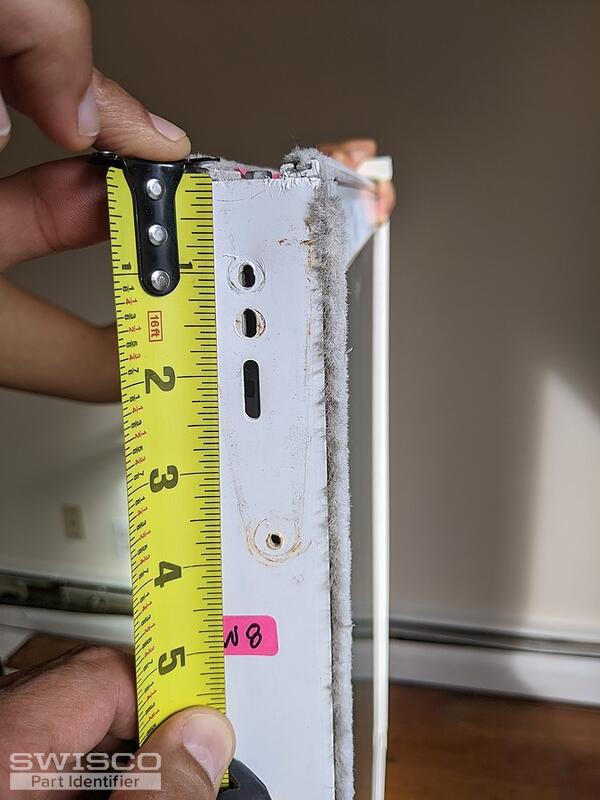

Thumbnail of the uploaded file named 1.jpg

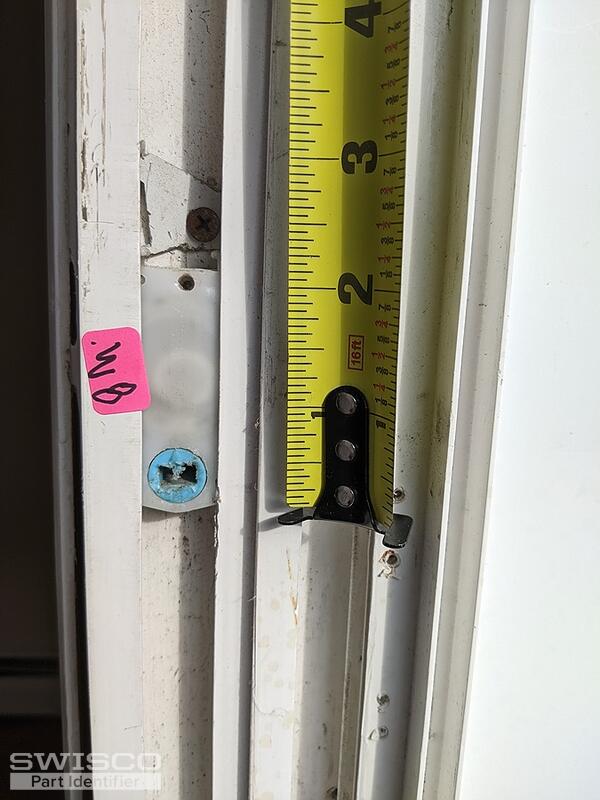

Thumbnail of the uploaded file named 2.jpg

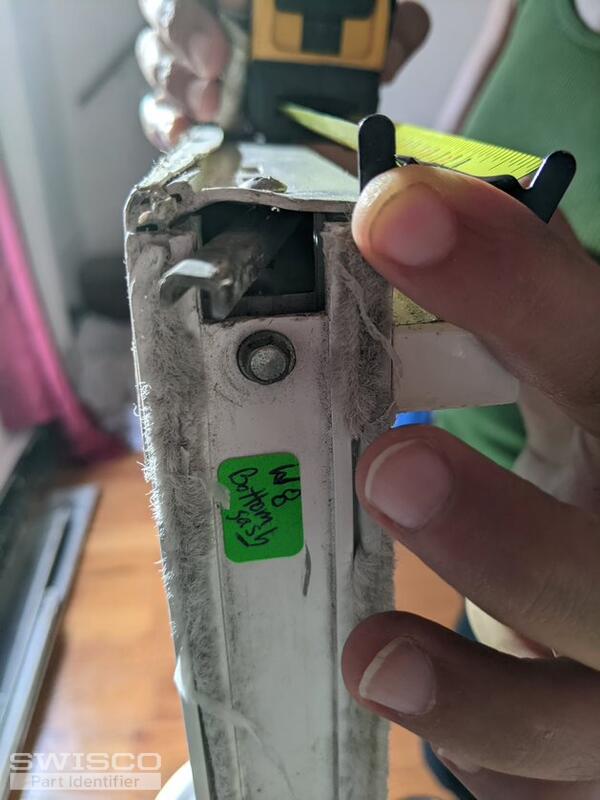

Thumbnail of the uploaded file named 7.jpg

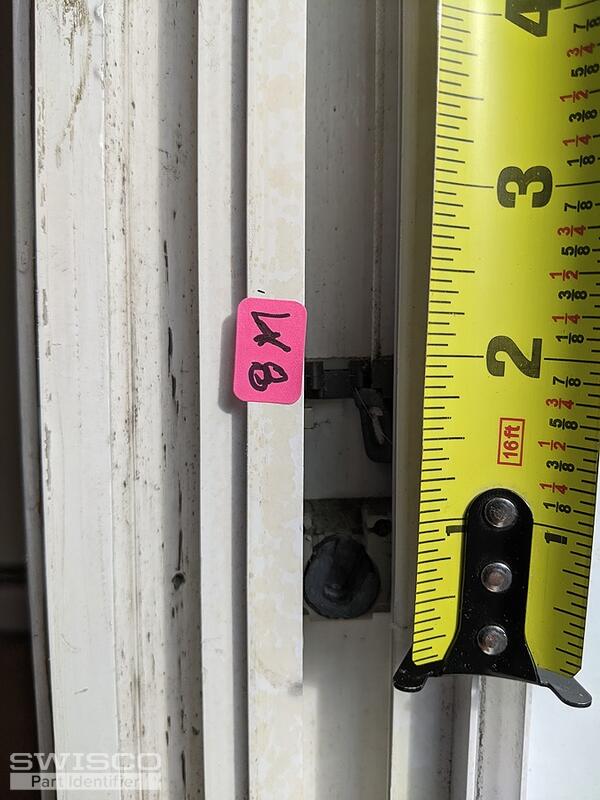

Thumbnail of the uploaded file named 9.jpg
A quick learner from 02860 says:
August 9, 2022
Additional picture.
Thumbnail of the uploaded file named 10.jpg
Profile picture of Emily
Emily from SWISCO responded:
August 11, 2022

It appears you have two different types of balance systems here. One is our 15-087 which uses the Series 180 coil springs and the other is our Series 770 channel balance. I'm just not sure which one was original to the window, unfortunately.

I'm thinking it might've been the 15-087, judging by the pivot bar. I don't often see that pivot bar used with the Series 770 setup. However, I'm afraid this is just a guess since it's not something we can judge.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
