window operator

Quick Learner from Boca Raton
Jan 23, 2024 10:39 am
Your part: RH Window Crank Operator, 3/8" Hole
Product Code: 39-194

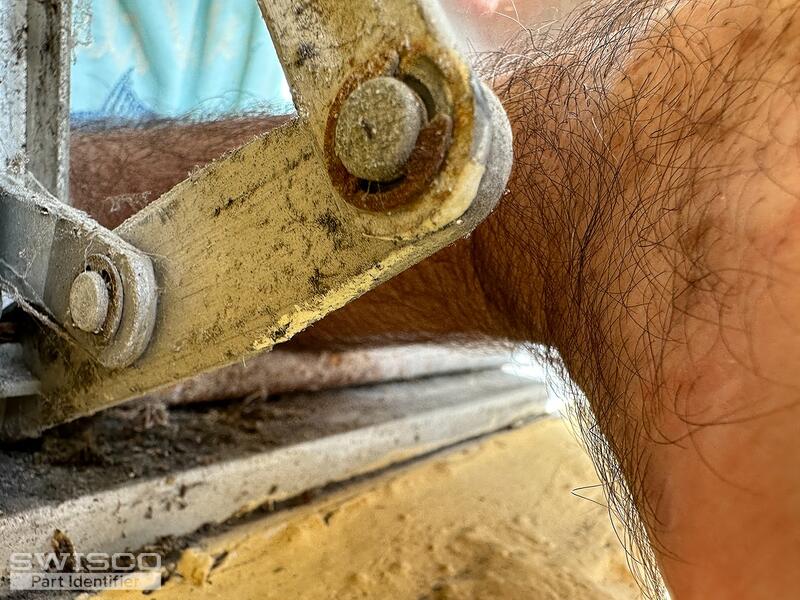

Looks like a match, but the old one has a C-clip on the operator's arm where it connects to the torque arm.

Any thoughts?
IMG_2978 IMG_2977 IMG_2976 IMG_2995
4 user uploaded images
1 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
Jan 24, 2024 12:23 pm
SWISCO
EXPERT

Thanks for reaching out! The part you are referring to in the E-Ring Clip. I believe you may be looking for part 21-161 which is secured using the 33-077 Double Groove Pin.

To confirm that these are the right replacements, you'll need to carefully review the dimensions. You'll especially want to be sure to remove the operator to compare the dimensions and design.

Dimensions for 39-194
Dimensions for 39-194


+ Add a Comment
Products and resources found in this discussion
RH Window Crank Operator, 3/8" Hole
RH Window Crank Operator, 3/8" Hole
39-194
$19.97
5/16" E-Ring
5/16" E-Ring
21-161
$0.32
Double Groove Pin
Double Groove Pin
33-077
$1.87
