window operator

Home Owner from Woodinville Washington

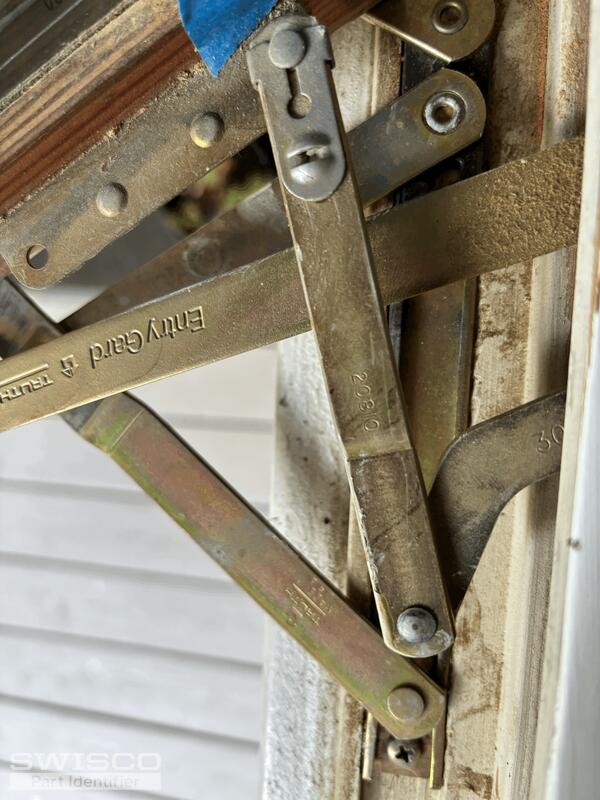

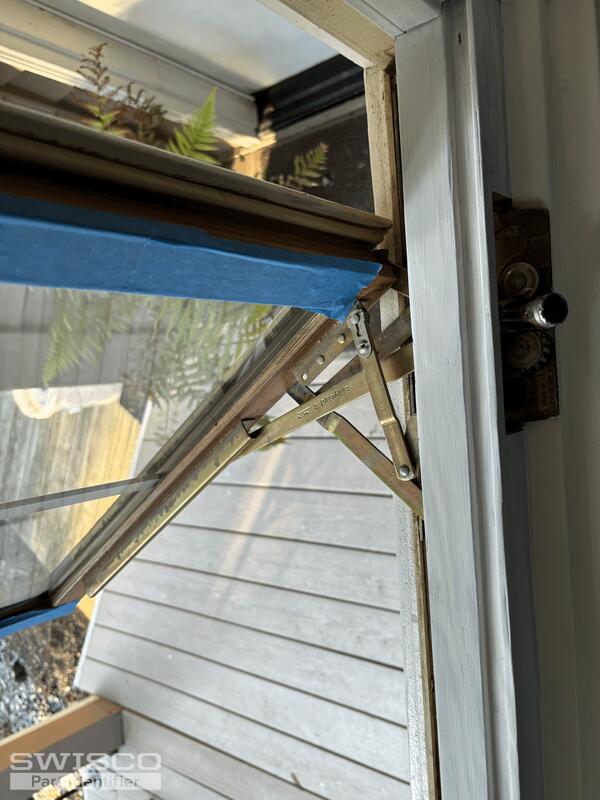

Truth Entry Gard Window operator
Hinge on right
I need two
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! This window operator can be replaced with the 39-031 EntryGard Dual Arm Operator; the link arm is attached to the 39-516 Clip-Stud Bracket. To confirm that this is the correct replacement, carefully look over the dimensions below and compare them.

The opposite handed versions of each of these parts along with the compatible hardware and accessories have been tagged below for your review.

Dimensions for 39-031
Dimensions for 39-031

The window hinge can likely be replaced with the 36-048 2-Bar Hinge Set. You'll need to compare the dimensions to determine if they are a match for your existing hinges. Keep in mind, you may need to drill new installation holes to install them. Should you need to, be cautious not to drill to far into the frame, potentially damaging the glass.

This hinge set can be used to replace both the top and bottom hinges for left and right handed applications. It is advised to replace both the top and bottom hinges at once.

Detail of 36-048
Detail of 36-048
