window part : SWISCO.com

Home Owner from monument colorado

Mar 27, 2024 2:27 pm

Lincoln roll out window part -need brass slotted nut and tool to install nut - window installed 2006 window number GMAC GCC CBA HK3 CG-4 etched on window the nut backed out and seems threads are damaged cant reinstall it

1 user uploaded image

6 Replies

Casey from SWISCO

Mar 29, 2024 9:25 am

Hello,

It seems like the crank spline that the handle attaches to may have come loose from the base. If so, we should be able to help but the entire operator would need to be replaced. We would need to start by seeing your assembly with the window open so that the arms that move the sash are fully visible to narrow down your options. See the video below to assist you.

Quick Learner from monument co

Apr 5, 2024 2:03 pm

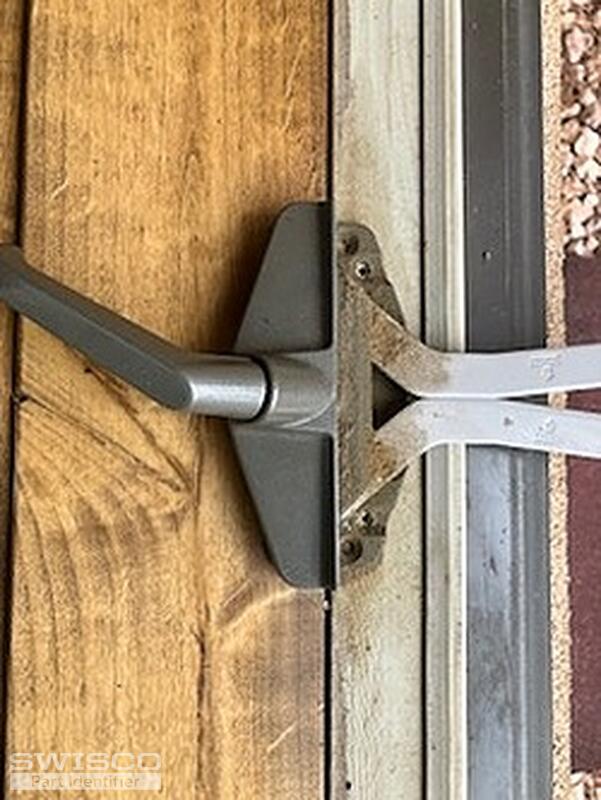

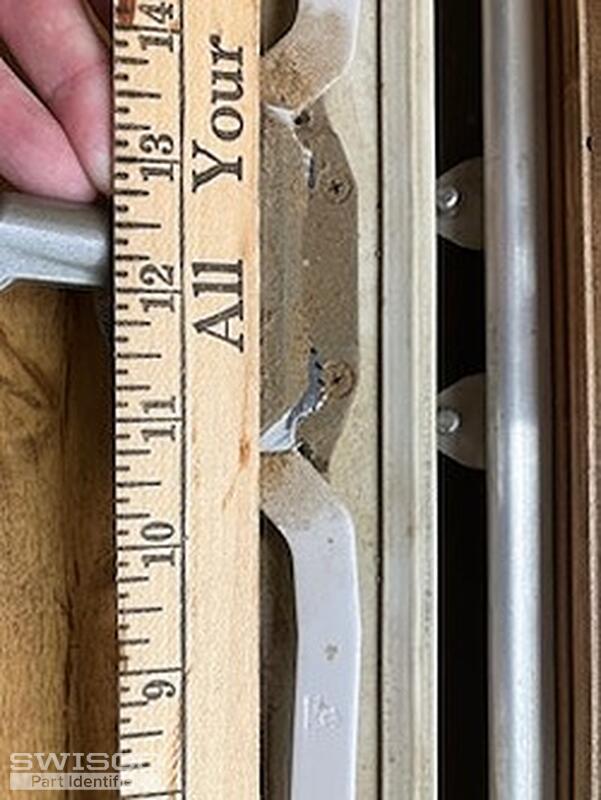

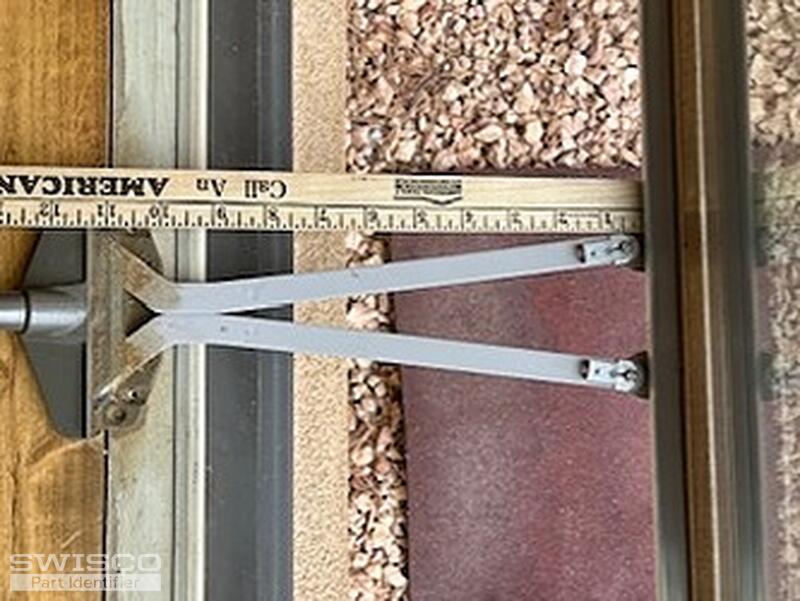

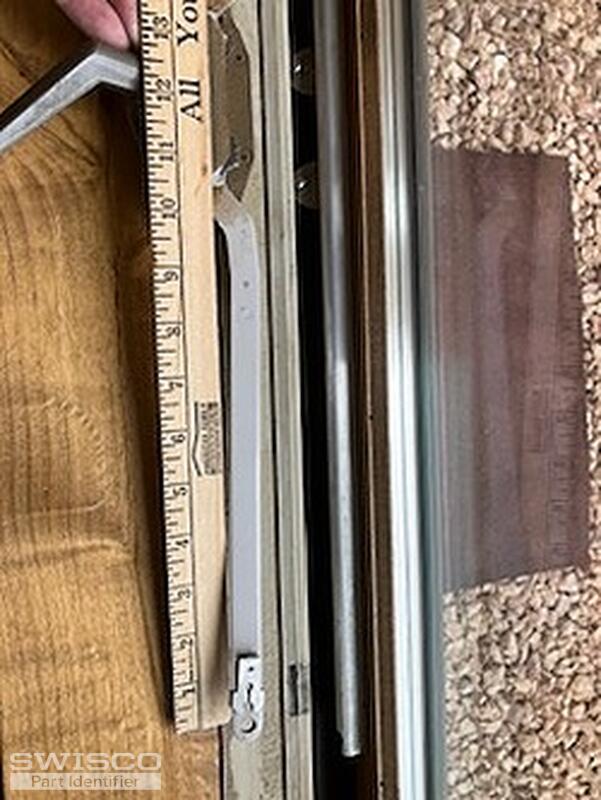

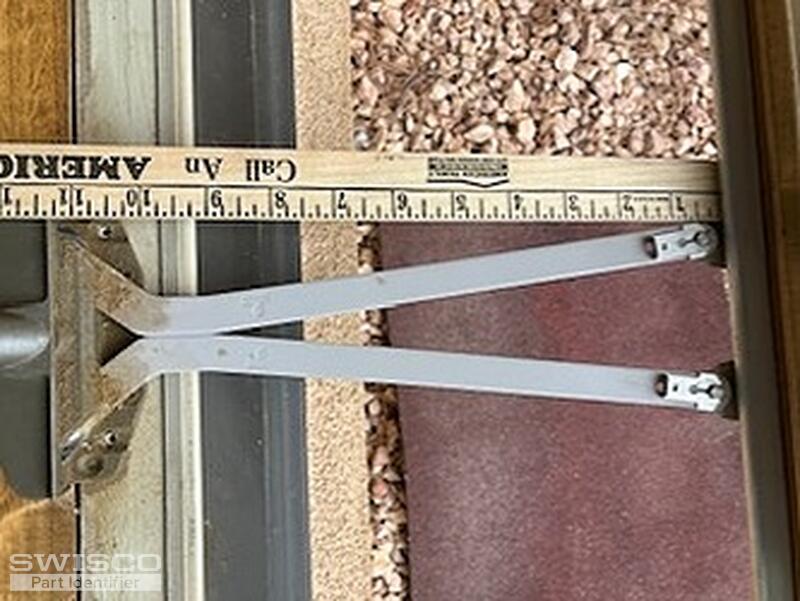

I need the crank out assembly wtll send additional photos

5 user uploaded images

Quick Learner from monument co

Apr 5, 2024 2:04 pm

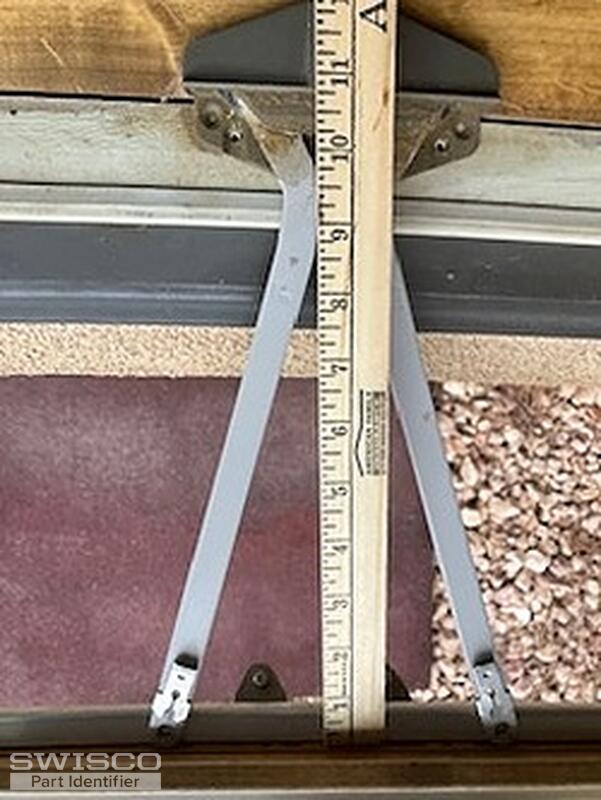

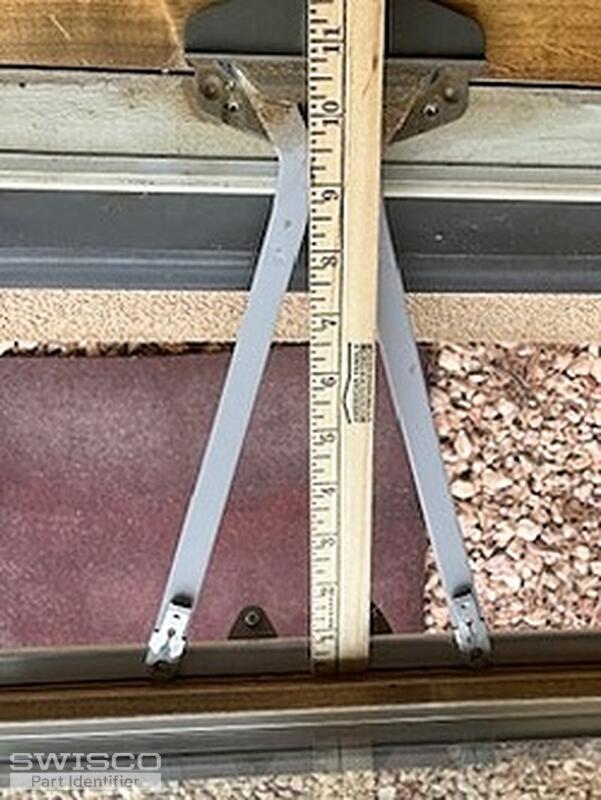

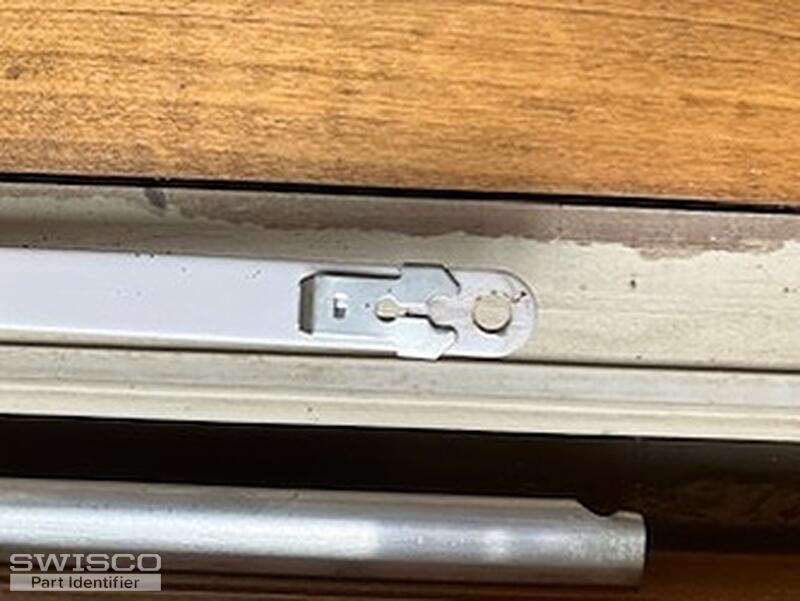

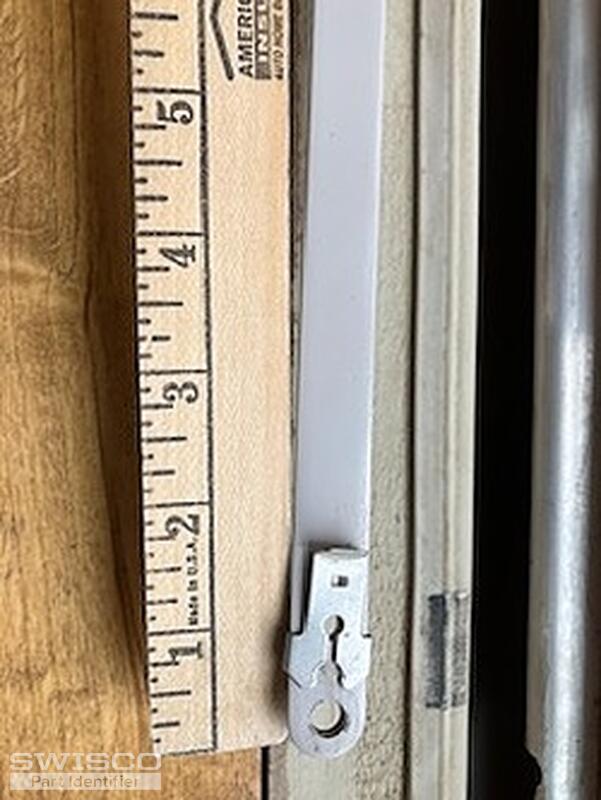

additional photos

5 user uploaded images

Quick Learner from monument co

Apr 5, 2024 2:06 pm

additional photos

1 user uploaded image

Casey from SWISCO

Apr 8, 2024 3:30 pm

Thanks for getting back to us. Your operator resembles the 39-348, which has an overall wingspan of 24" as shown below. Take a look and let us know if you need anything else.

detail of 39-348
