window part that helps the window close bent

Home Owner from New York

Apr 9, 2020 7:25 pm

Trying to find a part for this window, their are no markings or any kind of manufacturer name on it. One of the arms that helps to close it is bent so the window won't open or close with out manual assistance. If you could help that would be great. Thanks. If you need any more pictures just ask. Thanks

Mike

4 user uploaded images

4 Replies

Tom from SWISCO

Apr 10, 2020 11:54 am

Hello! Looks like you need a new casement window hinge. Our 36-048 is similar to what you have here and I believe it should work as a replacement as long as you replace the top and bottom at the same time. The video below should also be helpful.

Home Owner from New York

Apr 10, 2020 1:13 pm

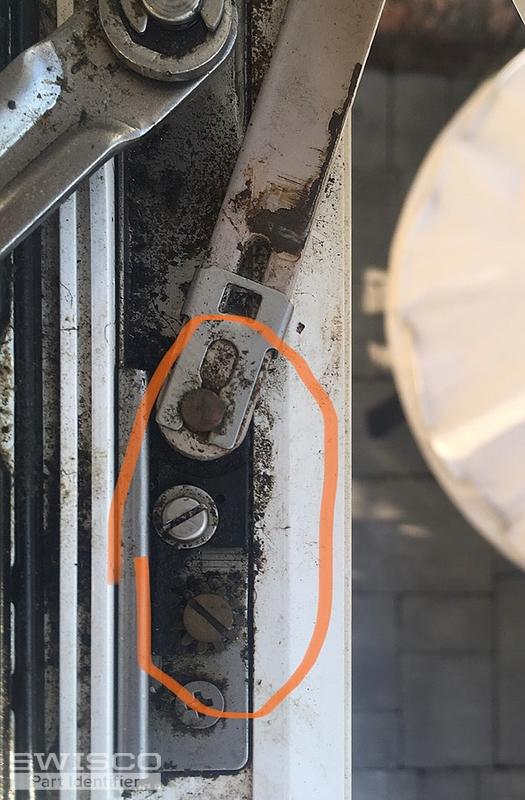

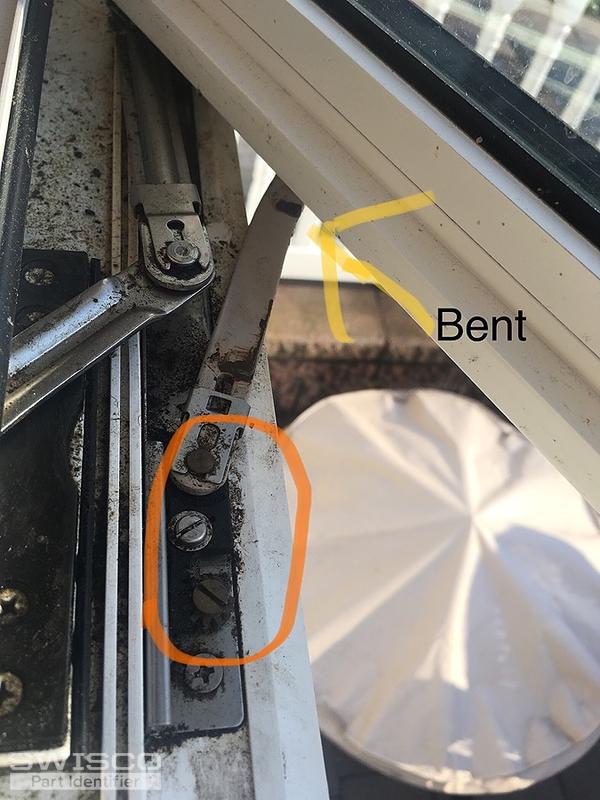

Thanks, I looked at part 36-048, it does look very similar my only other question is that there is a plastic gear set (circles in orange) is that something I can take from the old parts and add to the new?

2 user uploaded images

Tom from SWISCO

Apr 10, 2020 1:27 pm

That appears to be the hinge slide. The 36-048 actually comes with one already. It's a slightly different style from yours but that shouldn't matter as long as you replace the top and bottom at the same time.
