window parts

A contractor from Colorado says:
Need some replacement parts.
Thumbnail of the uploaded file named 1639157493419185917028619073330.jpg
Thumbnail of the uploaded file named 16391577564168825352098317186617.jpg
Thumbnail of the uploaded file named 16391578519499091037427732165767.jpg

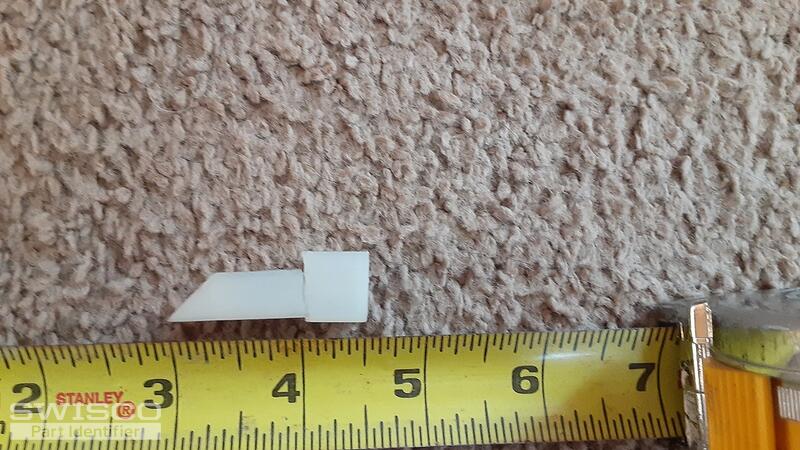

Thumbnail of the uploaded file named 16391578718386489532793568690125.jpg
A contractor from Colorado says:

Looking for these parts.

And few others

Troy

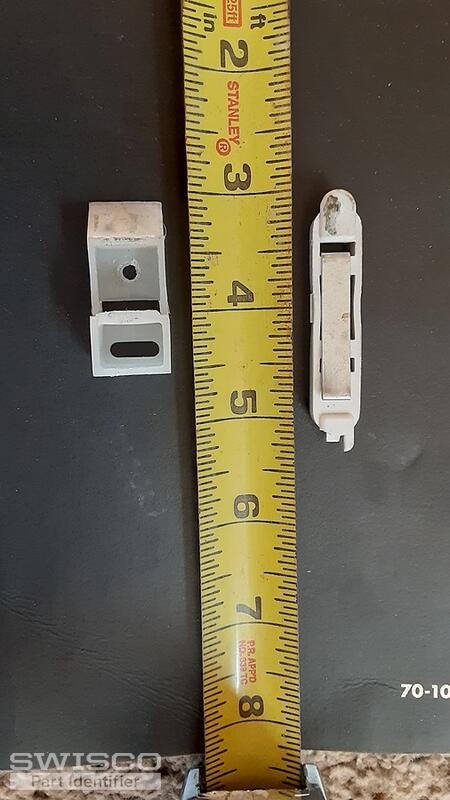

Thumbnail of the uploaded file named 16391598498205907600382668282327.jpg

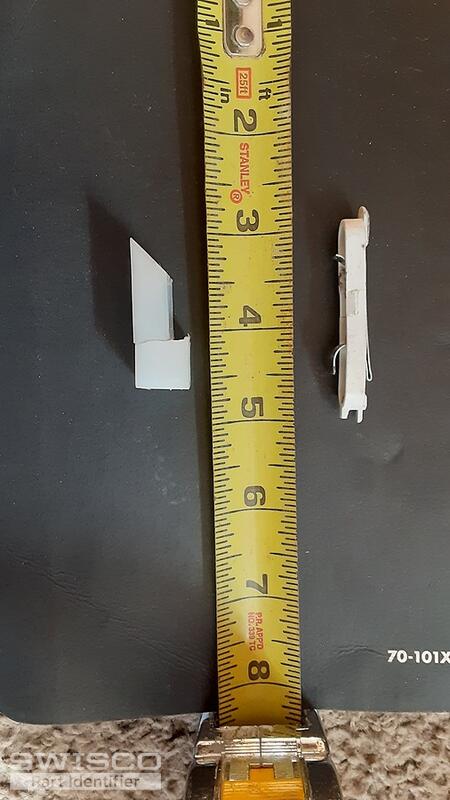

Thumbnail of the uploaded file named 16391598750675595215200051472627.jpg

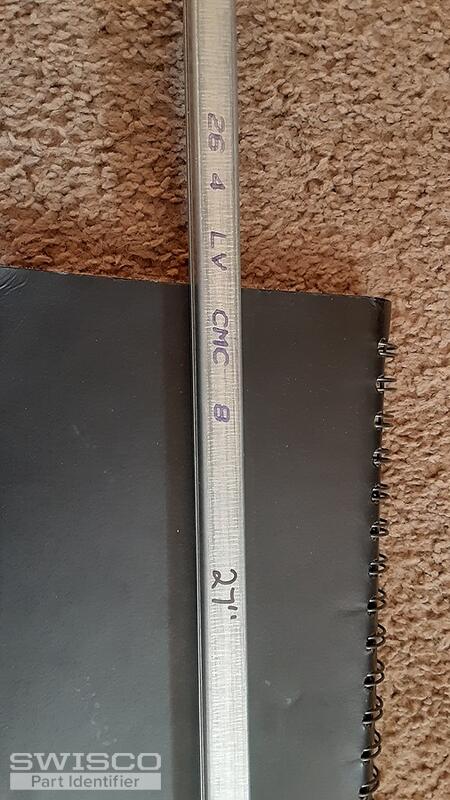

Thumbnail of the uploaded file named 16391599352151360728510160328496.jpg

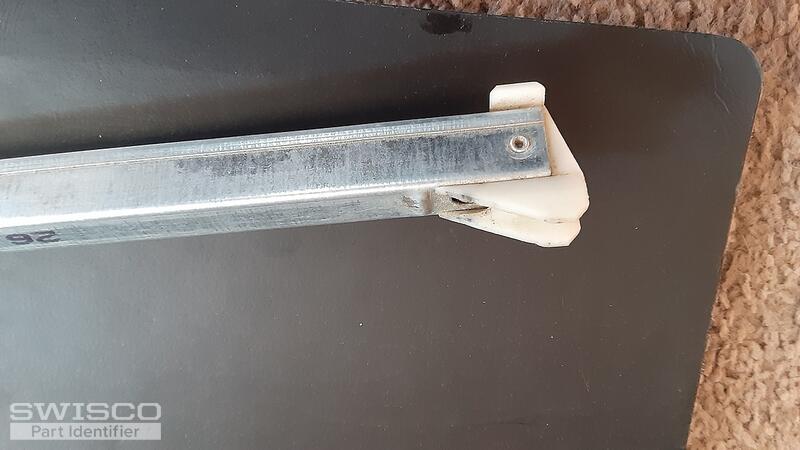

Thumbnail of the uploaded file named 16391599575467417279402757903928.jpg

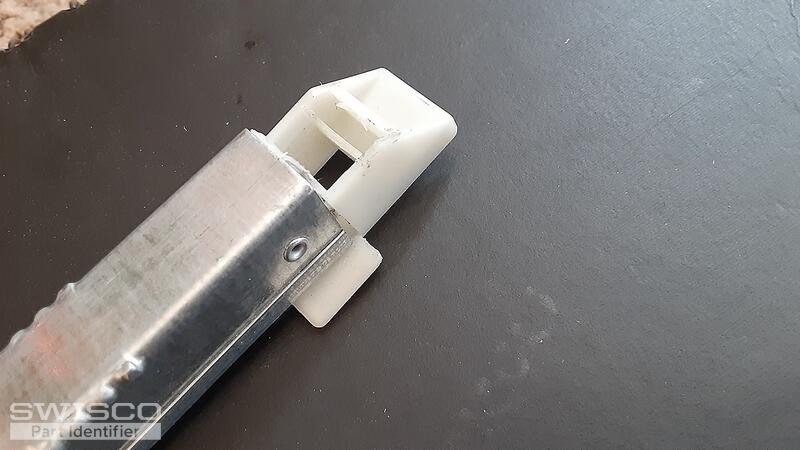

Thumbnail of the uploaded file named 16391600065007733313616258206883.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.

You can start by comparing your top sash guide to the 18-176 and 18-188 . If you notice any dimensions that differ, please write out your exact measurements and we can go from there. Unfortunately, we do not carry a replacement for the vent latch also shown in your photos.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
