window parts

Landlord from florida

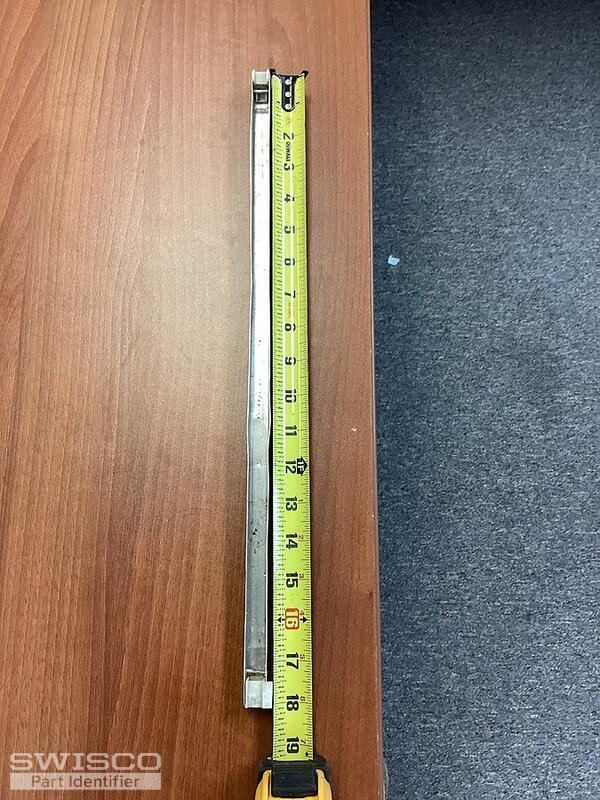

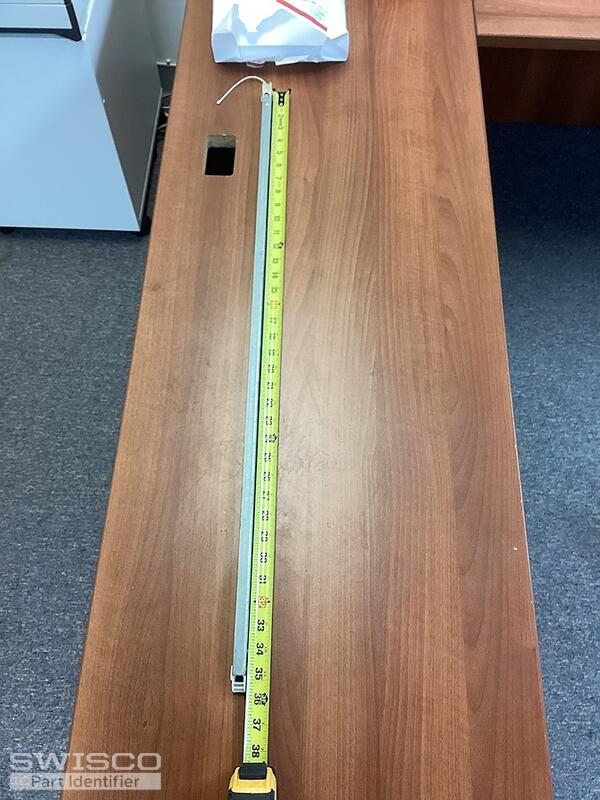

I need help identifying these parts so I can place an order to have my windows fixed on my rentals. Thank you
5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

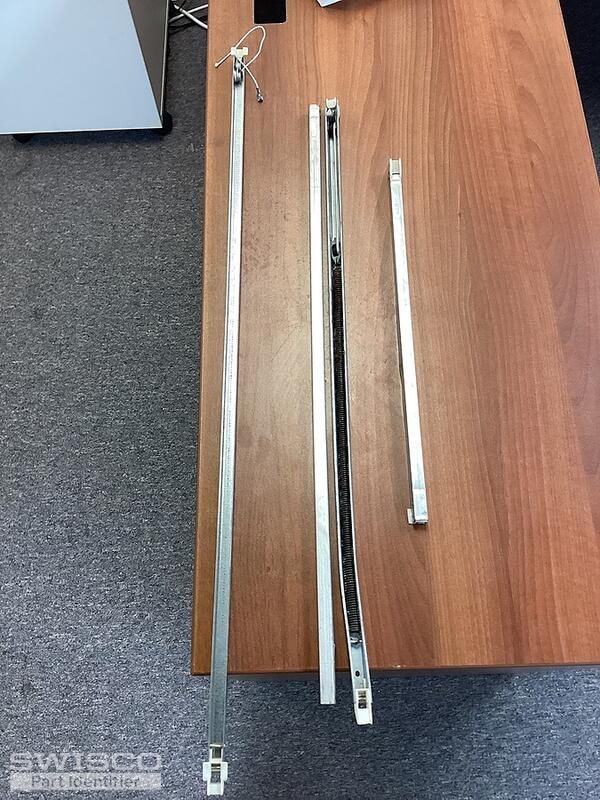

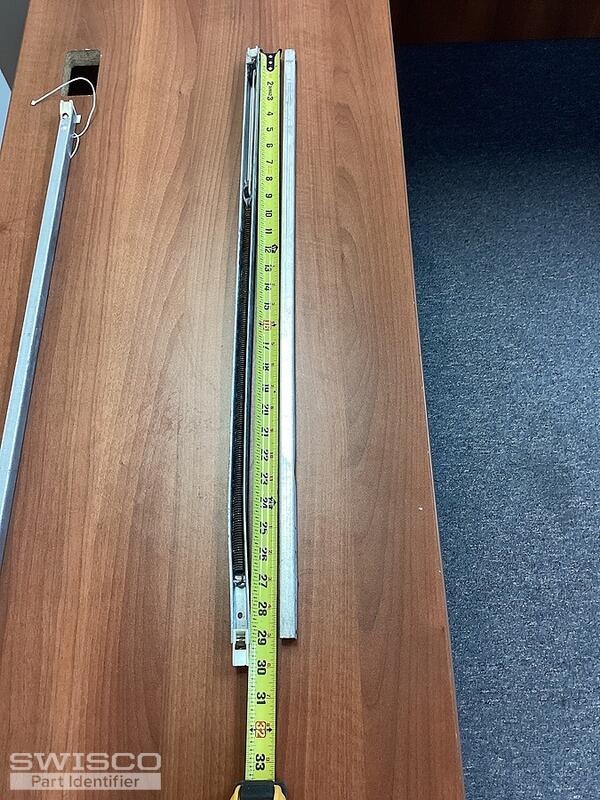

It looks like you're looking for two different style balances. The longer of the two assemblies has wings on the nylon fittings while the shorter of the two assemblies lacks them entirely. This may seem like a minor distinction but it is important.

Concerning the longer balance, you have either the Series 380 or Series 385, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

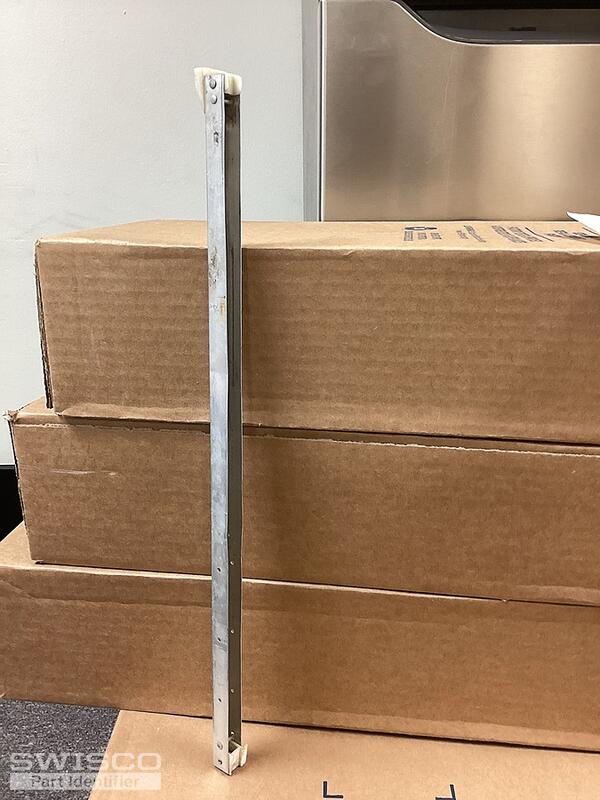

For the shorter balance, you face a similar choice, but this time between two different Series than before: The Series 380 and Series 385. I will share another diagram for these particular products that you can use as a reference to find a match. You'll note that the nylon fittings lack the same wings as the previous two.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
