window parts damaged

Contractor from Bluffton SC

Sep 27, 2019 3:53 pm

We do spray foam insulation and got over spray on these windows. We need 14 of each shown in the picture. Also sent pic of the window label in case that helps!

3 user uploaded images

6 Replies

Tom from SWISCO

Oct 3, 2019 10:39 am

Thanks for posting. Looks like you need a new lock and tilt latch. We can definitely help with the tilt latch; see our 26-243 and 26-244. These should match up as long as the dimensions are the same.

I'm less sure about the lock. Can you tell me the distance between the two installation holes, center-to-center? That would be a huge help.

Tom from SWISCO

Oct 9, 2019 10:18 am

I'm afraid I cannot make out the hole center spacing from these photos. It's tough to get an accurate read with just a tape measure held up to the part. If possible, please measure the center-to-center hole spacing as carefully as you can and let me know what you get.

Contractor from Bluffton SC

Oct 9, 2019 10:29 am

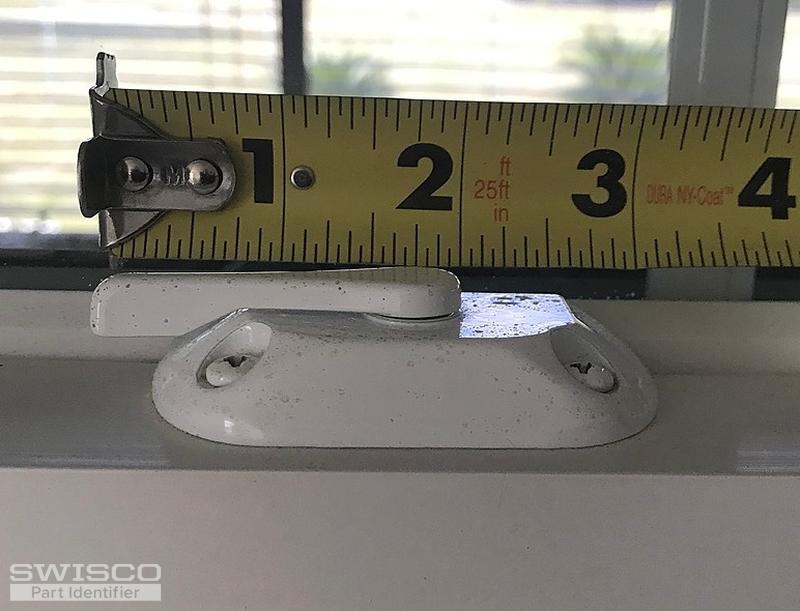

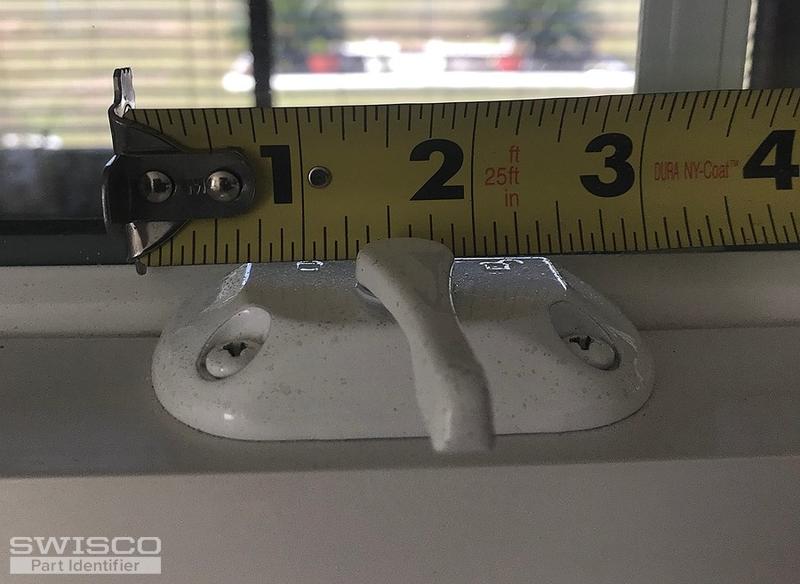

more photos with measurements

2 user uploaded images

Contractor from Bluffton SC

Oct 9, 2019 11:38 am

2 inches

Tom from SWISCO

Oct 11, 2019 8:19 am

Thank you. We weren't able to find anything that matches your size and style, unfortunately. The best option we have is our 90-286 lock with a 1-7/8" hole center spacing and an 11/16" hole center offset. Double check your dimensions and see if your lock has the same hole spacing and back set.
