window parts needed

A quick learner from Seekonk, MA says:
September 20, 2022

Hi,

I need all of the items in the photos provided. The spiral window balances needed are 24" and 26". Can you provide numbers needed so I can order.

thanks, Bryan

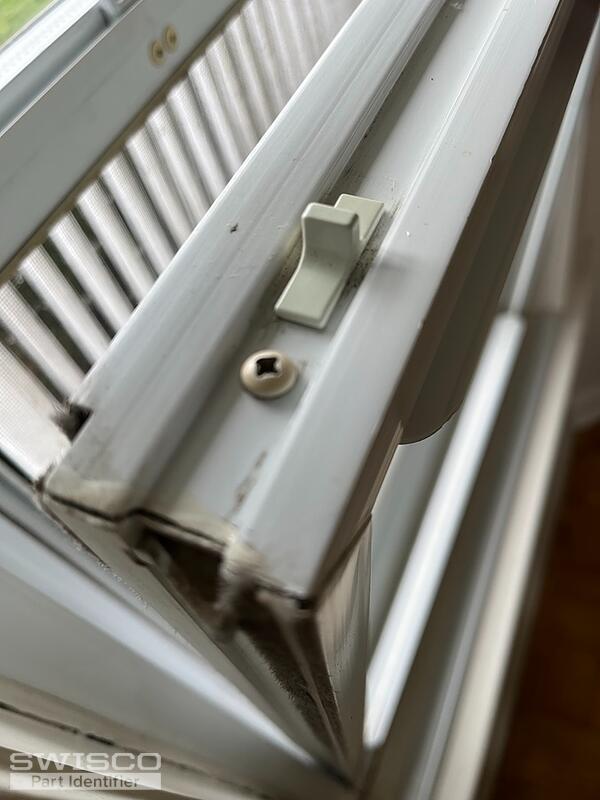

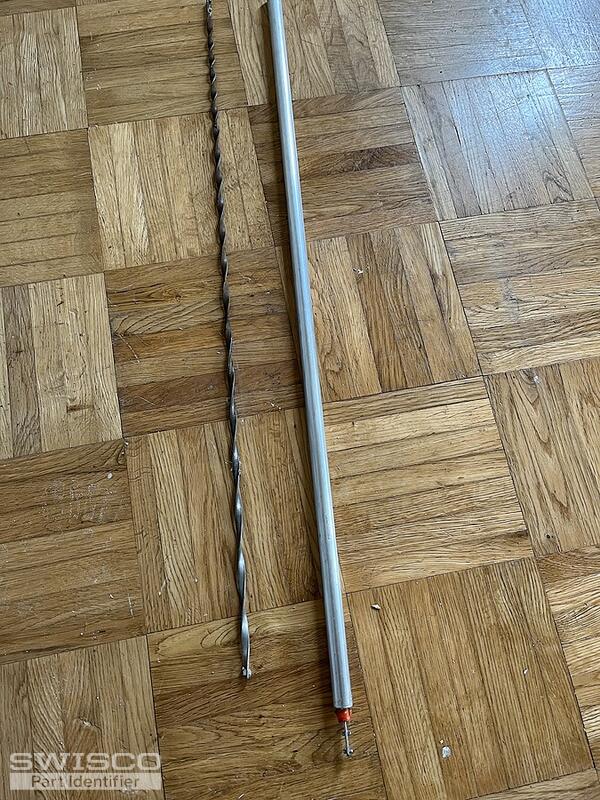

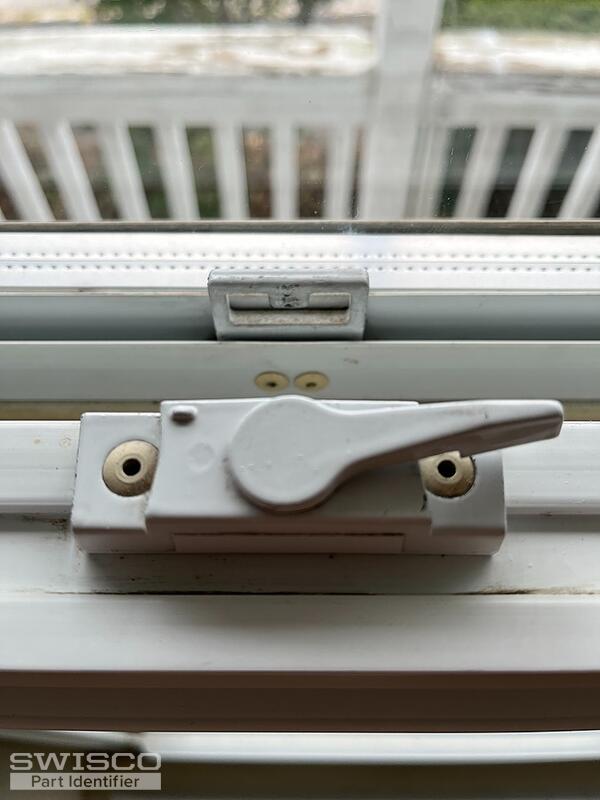

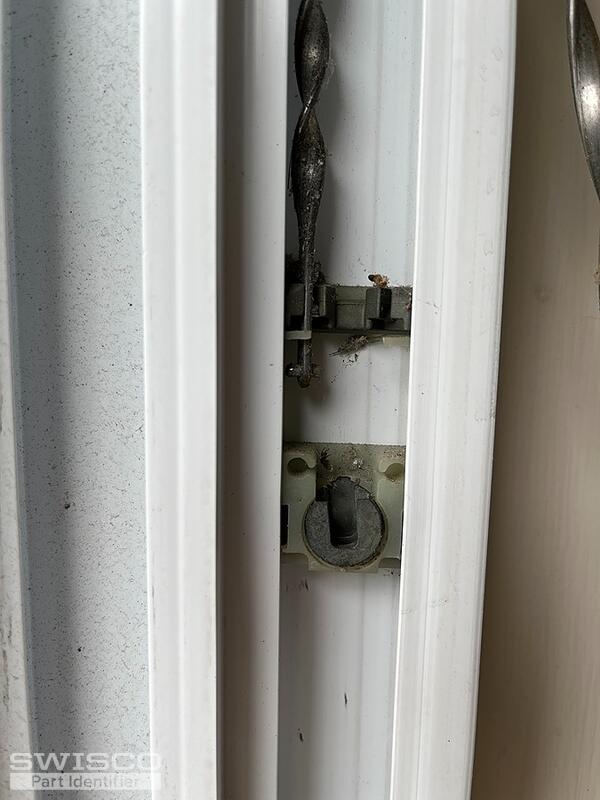

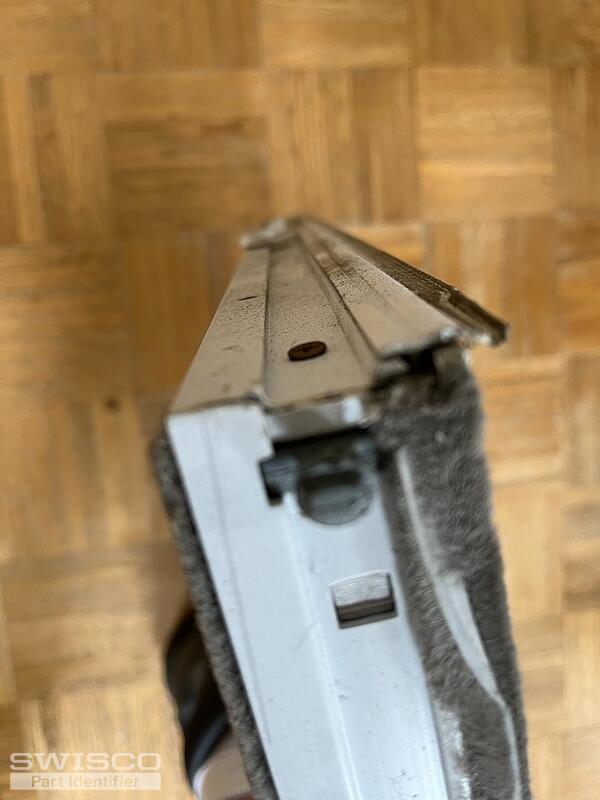

Thumbnail of the uploaded file named balance 1 .jpg
Thumbnail of the uploaded file named IMG_4938.jpg
Thumbnail of the uploaded file named IMG_4939.jpg
Thumbnail of the uploaded file named IMG_4940.jpg
Thumbnail of the uploaded file named IMG_4942.jpg
Profile picture of Casey
Casey from SWISCO responded:
September 23, 2022

Hello,

You'll need to measure the diameter of your balance tube to choose between the S600 (5/8") and S900 (3/8") spiral balances.

As for your sash lock, we'll need you to write out the exact distance between the center of the installation holes to compare to our inventory.

We'll also need to see your internal tilt latch, pivot shoe, and pivot bar fully removed from the window. See the related videos for assistance. Thank you!
24" Series 600 Spiral Tilt Window Balance
24" Series 600 Spiral Tilt Window Balance
S600-24
$8.92
24" Series 900 Spiral Balance
24" Series 900 Spiral Balance
S900-24
$8.55
26" Series 600 Spiral Tilt Window Balance
26" Series 600 Spiral Tilt Window Balance
S600-26
$9.05
26" Series 900 Spiral Balance
26" Series 900 Spiral Balance
S900-26
$8.95
