window part(s) that make it possible for the window to go up and down

Home Owner from Windham-Gorham

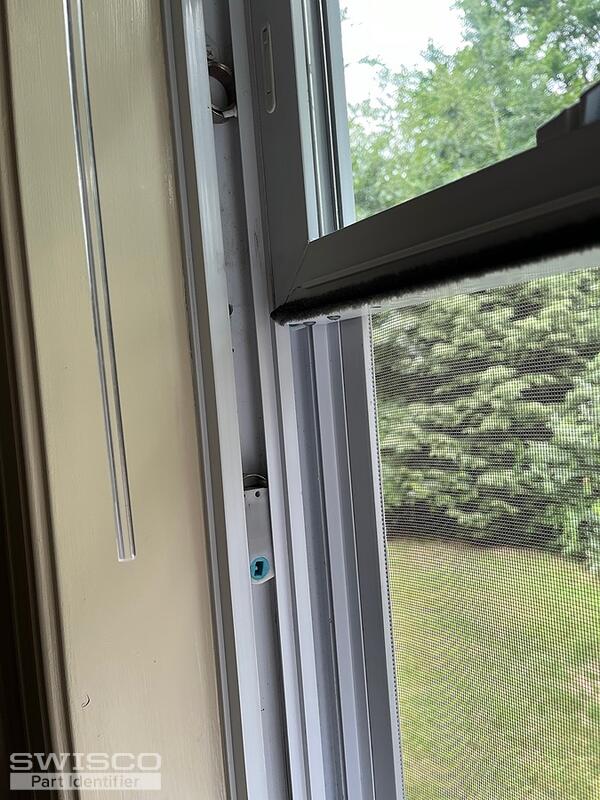

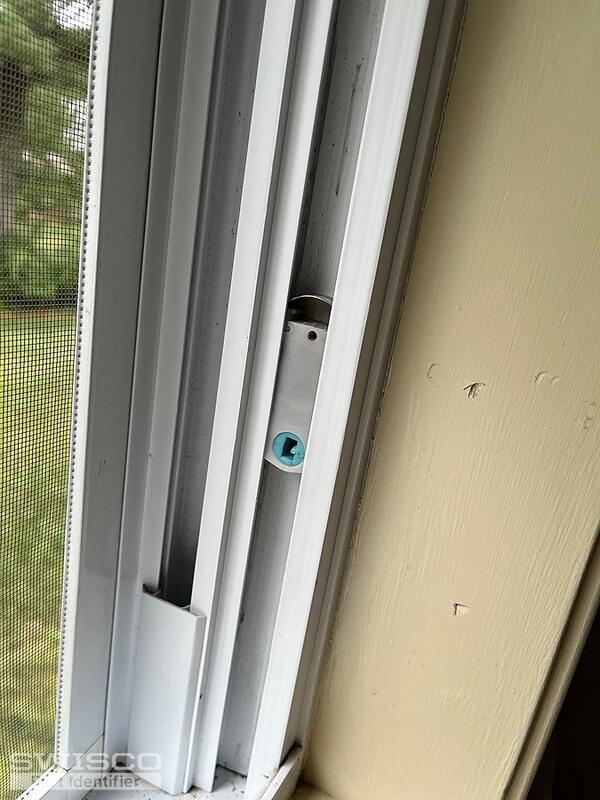

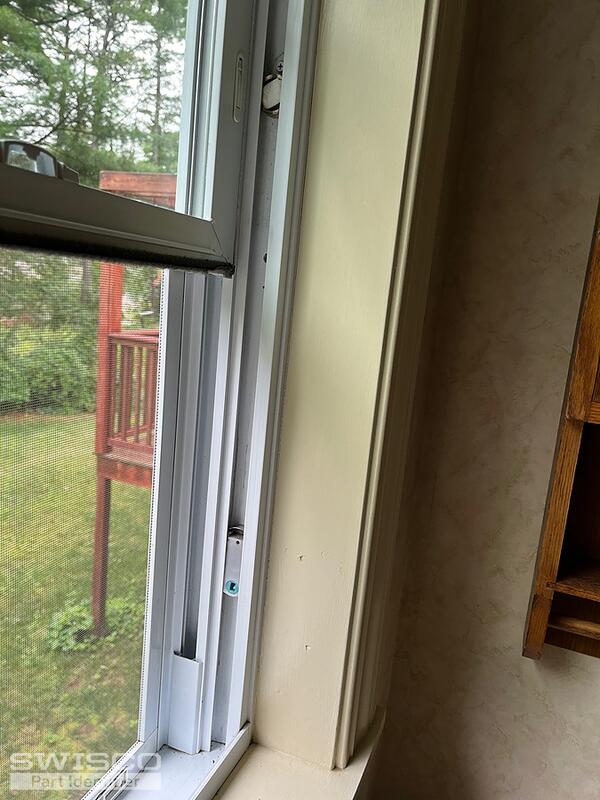

We are trying to fix this window which does not go up & down. you can slide it up but then some strong object or sturdy glass bottle has to be used to prop it up. Not sure what the part is called - maybe a pivot bar receiver? that's what the Home Depot employee told us. The photo shows the part in the track after we removed the window completely. Thank you for any help!
3 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hey there!

Thanks for reaching out to us. The part you're searching for is called a pivot shoe. With that said, our 15-087 looks like a comparable match. This is used with the Series 180 coil springs. Take a look and see what you think.

Detail of 15-087
Detail of 15-087

Home Owner from Windham-Gorham
If I need both the Pivot Lock Shoe and the spring retainer (?) would I need to buy these in one set or separately? The windows are American Craftsman by Anderson Corp. I took a photo of one of the other windows that is not broken. Any advice is greatly appreciated. Thank you so much.
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

By springer retainer, do you mean the 15-086 tandem housing? This part is sold separately from the 15-087. I hope this helps.
