window pivot bar

Home Owner from cheboygan mi.

Jun 3, 2021 1:49 pm

The parts needed came out of my 1998 patroit man. home the pivot bar is 2" ,long has three tapped holes square end with a groove on top. First hole from pivot end measures 3/4" next second hole measures 1 1/8" and 3rd holes which is used measures 1 9/16th " thickness is 3/16th" width is 1/4". looking for part no. and window no. for other parts. thank you Jim

8 Replies

Emily from SWISCO

Jun 7, 2021 3:43 pm

Hi there!

We'd be happy to help, but we'll need to see an undamaged pivot bar removed from your window to compare to our inventory.

Thank you!

Home Owner from cheboygan mi.

Jun 9, 2021 7:12 pm

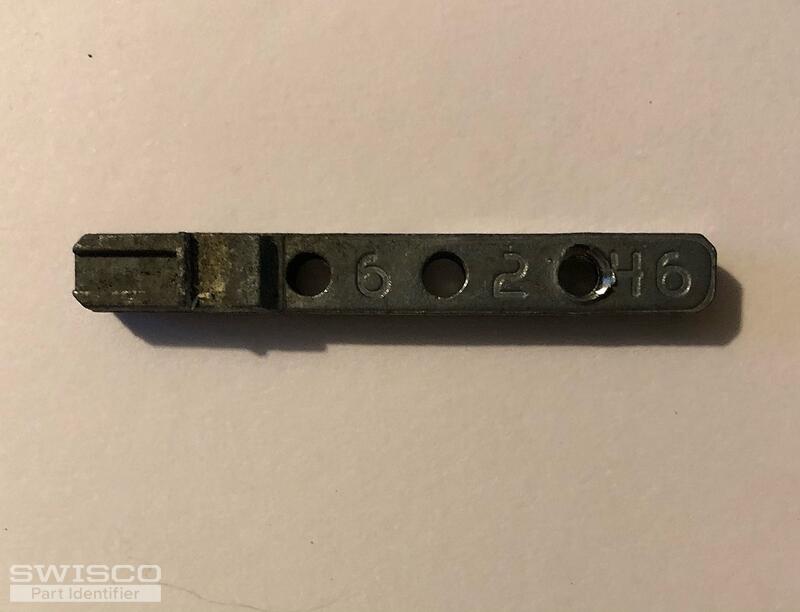

These are the pictures we were discussing, Thank you!

4 user uploaded images

Emily from SWISCO

Jun 10, 2021 8:14 am

Thank you for the pictures!

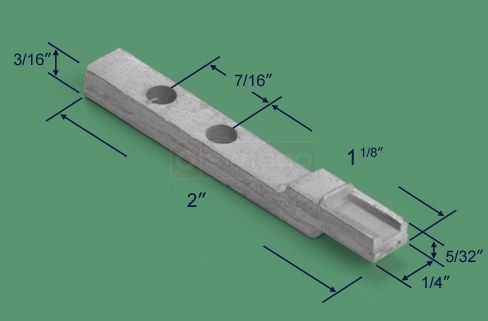

Check out our 26-327 pivot bar. Carefully review our dimensions and compare them to your current hardware to see if this matches up for what you need.

Home Owner from cheboygan mi.

Jun 10, 2021 12:25 pm

Thank you Emily,
That is the bugger that I was searching for.Saves me lots of time.
Sorry it took me awhile to get back with pics needed tech support,
aka my daughter!!!
Thanks again I will get to ordering some

Emily from SWISCO

Jun 11, 2021 8:24 am

It was my pleasure! We truly appreciate your business. Please don't hesitate to reach out if you have any future hardware questions!

Home Owner from cheboygan mi.

Jun 25, 2021 11:50 am

I looked up the item and they were not available, back.
ordered,Will I be notified when in did not try to order, because of
this what or how to processed
Thank you Jim.

Emily from SWISCO

Jun 25, 2021 3:13 pm

Hi, Jim.

I'm sorry about that! If you sign up for the auto-notification for this item you will be notified when the 26-327 is back in stock.
