good morning! wonder if you could help us out with some replacement parts please. need one set, photos attached. thank you
Not positive this applies but we have another property we are working at that has what appear to be the same windows with what look like exactly the same coils and shoes that i can send you the photo of the little bit of info it had on its label if you would like it. Thanks!
window repair parts
Handy Person from Michigan
May 13, 2026 7:11 am
3 user uploaded images
5 Replies
Handy Person from Michigan
May 15, 2026 3:43 pm
Hello! Wanted to check in to see if these were parts you had? need the shoes and springs please.
Emily from SWISCO
May 18, 2026 11:32 am
Thank you for reaching out to us. We don't sell this exact pivot shoe, but take a look at the 15-228. Review the specifications and see if the thickness and width match up.
Are there any numbers stamped on the old spring? If not, feel free to get back to us with the sash weight and we can calculate the appropriate coil weights.
Dimensions for 15-228
Handy Person from Michigan
May 20, 2026 7:53 am

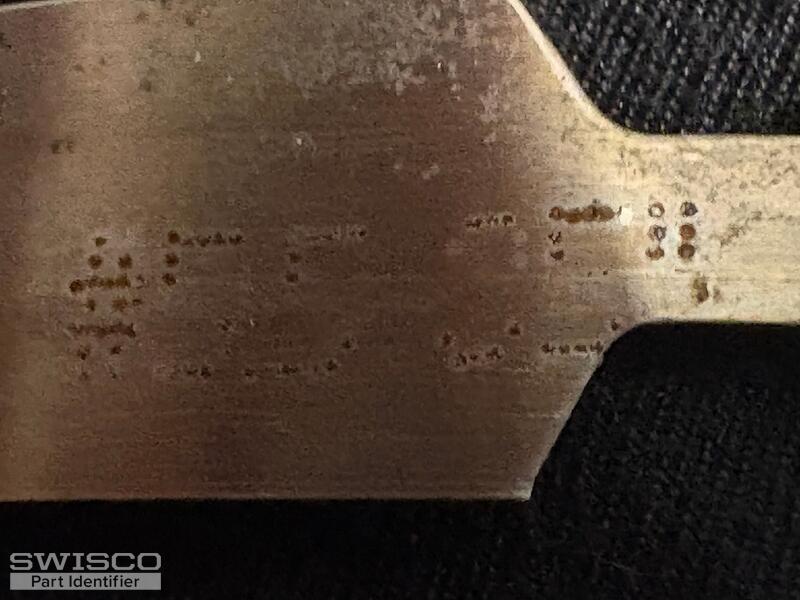

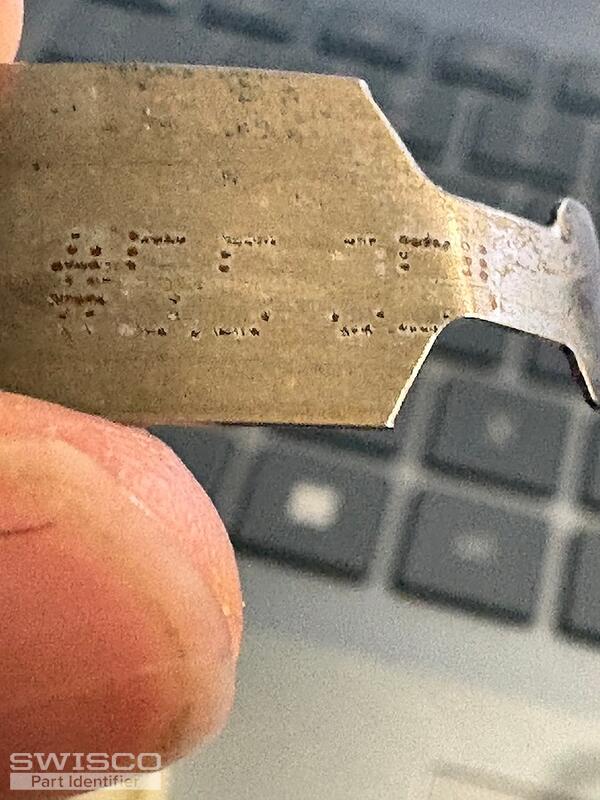

Thank you that is perfect, attached please find the photos of the piece of spring with numbers on it.
2 user uploaded images
Emily from SWISCO
May 20, 2026 8:07 am
Thank you! It looks like the spring is stamped 5.5. Is the width of the spring band 1/2"? If so, see the S160-05 5.5-pound spring sold separately). You can reuse the old spring supports if they're in good shape, but see the 15-150S single spring support if you need a new one.
Please let us know if you have any questions.
