window sash balance 25

A home owner from Fleming Island, FL says:

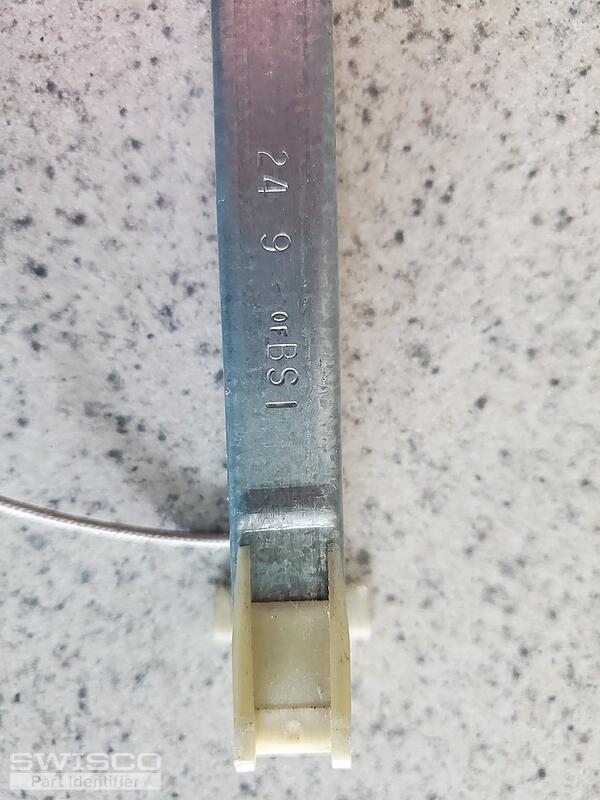

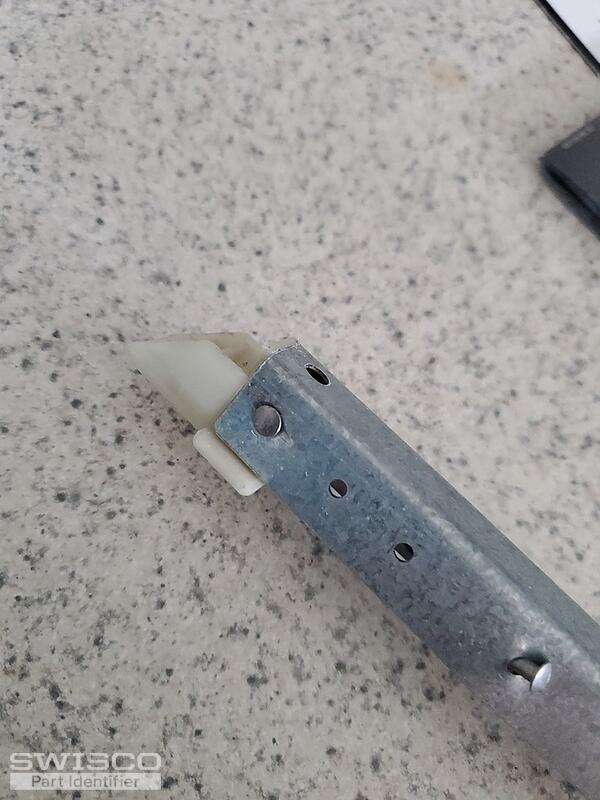

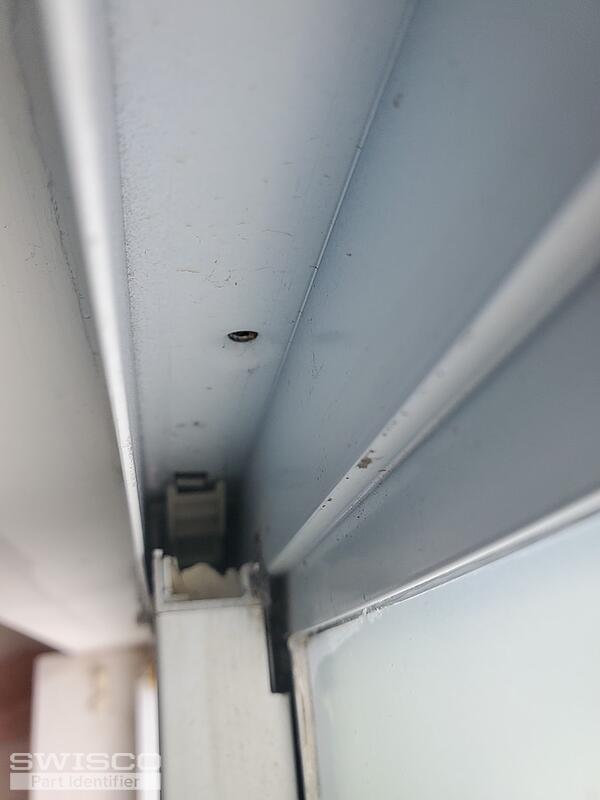

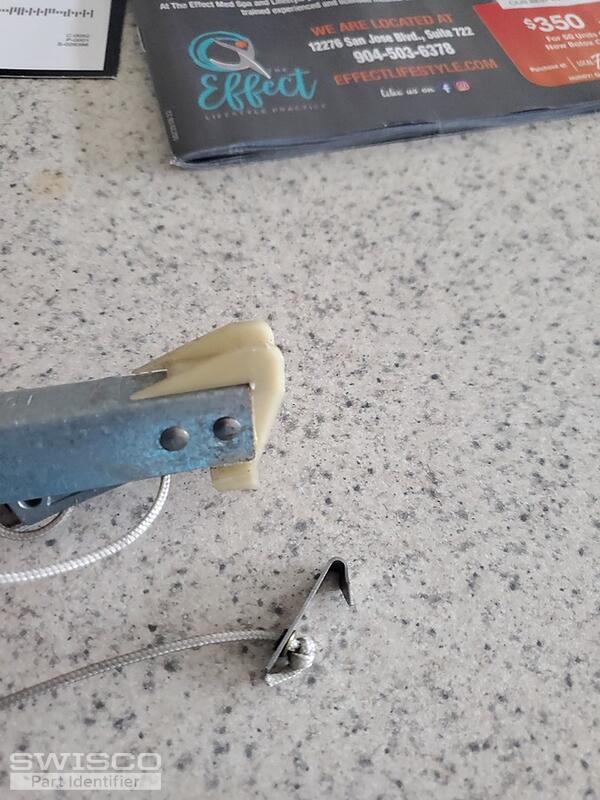

attempted to clean screen and window between screen. Right side sash balancer broke at the plastic pully part attached to the screen. Assume both left and right will be needing replacement. numbers/letters on it 24 9 ofBSI

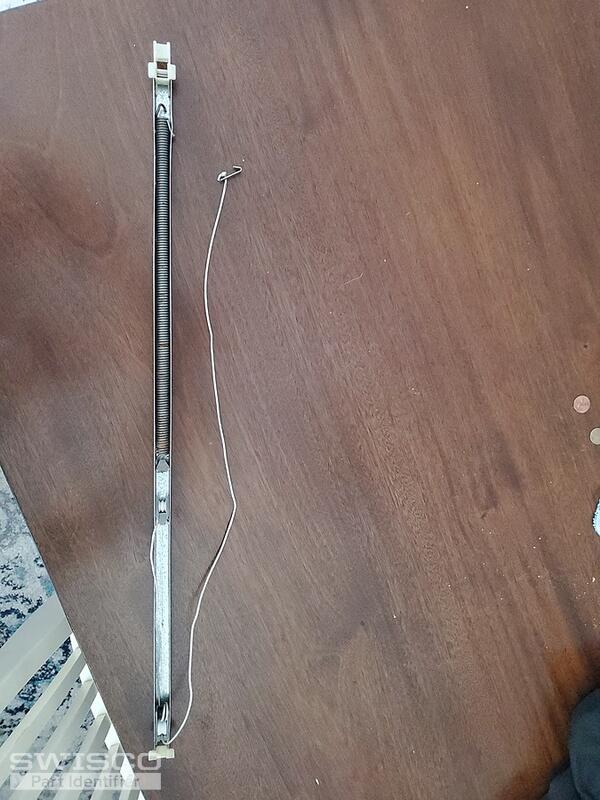

metal part of unity measures 25 in.

Thank you.
Jason
Thumbnail of the uploaded file named 20220909_142330.jpg
Thumbnail of the uploaded file named 20220909_142356.jpg
Thumbnail of the uploaded file named 20220909_143936.jpg
Thumbnail of the uploaded file named 20220909_144007.jpg
Thumbnail of the uploaded file named 20220909_144307.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-25 or S385-25 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
