window spring coil, and shoe

A handy person from Hawaii says:

Aloha,

this is Dan from Hawaii. I would like to know if these parts are interchangeable, or if they are size specific.

Could you identify what part numbers the shoes, coil and top holders are? I would need four of each of them.

Mahalo,

Dan

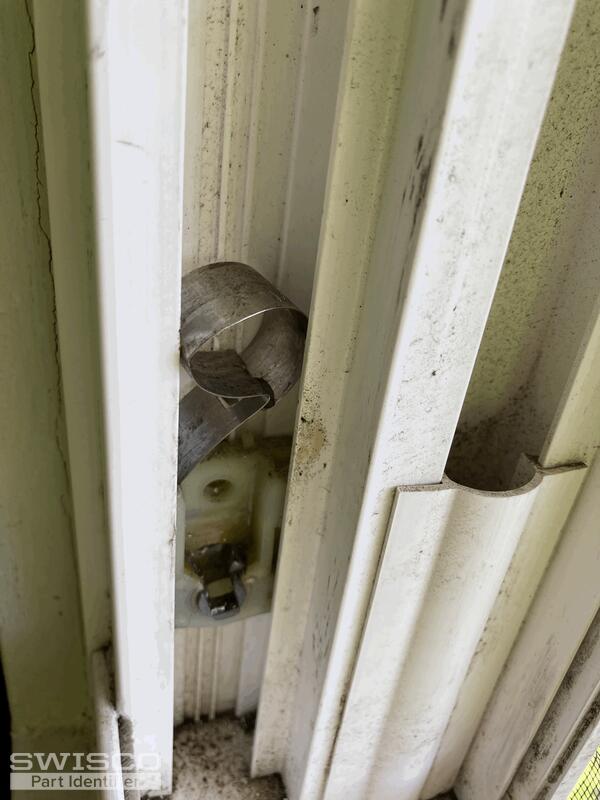

Thumbnail of the uploaded file named tempImageo4EO1o.gif

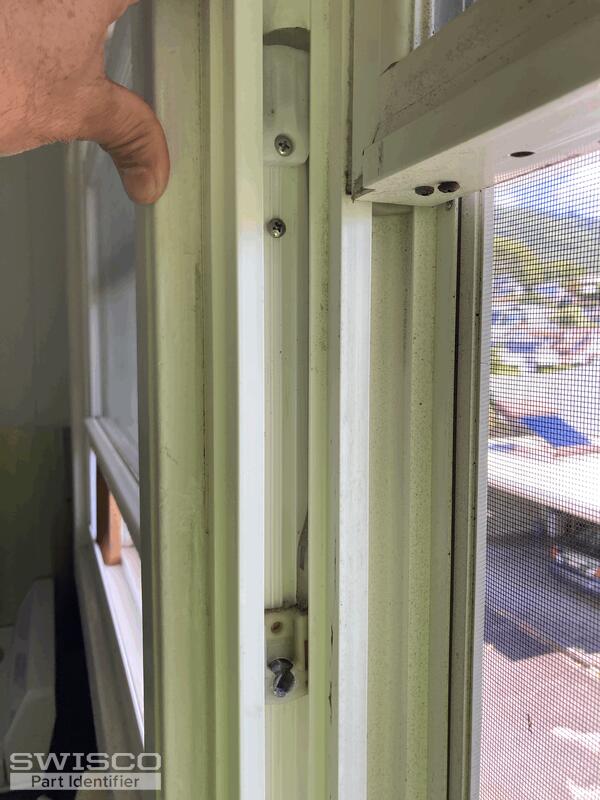

Thumbnail of the uploaded file named tempImageDBgT9T.gif
Profile picture of Emily
Emily from SWISCO responded:

Hi, Dan.

Before I recommend anything, can you show us a photo of your pivot shoe removed from the track? Yours is too obscured by the track to identify but seeing it removed would be a huge help.

A handy person from Hawaii says:
Hi Emily ,
Here are the photos I got .
Thank you, I appreciate your help.
Dan

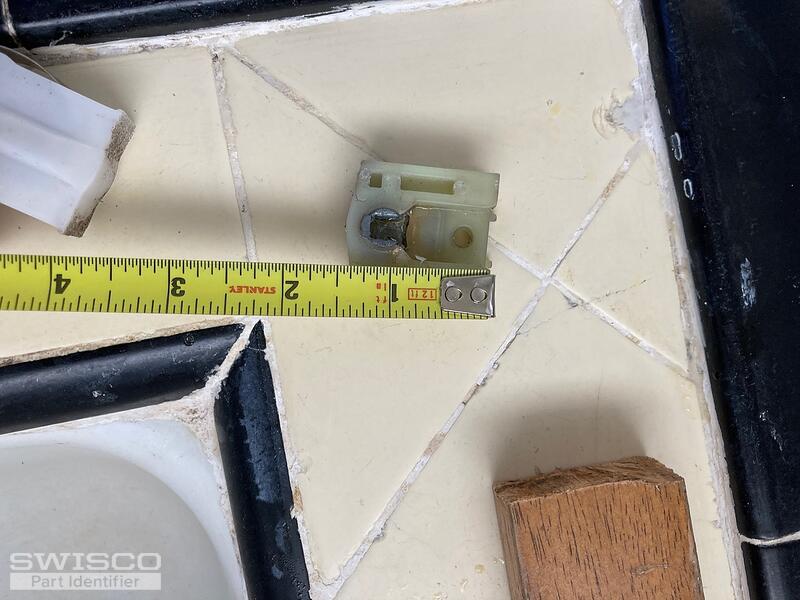

Thumbnail of the uploaded file named 1B77CE4C-4E85-45D2-A7F7-1A343BC5FF92.jpeg

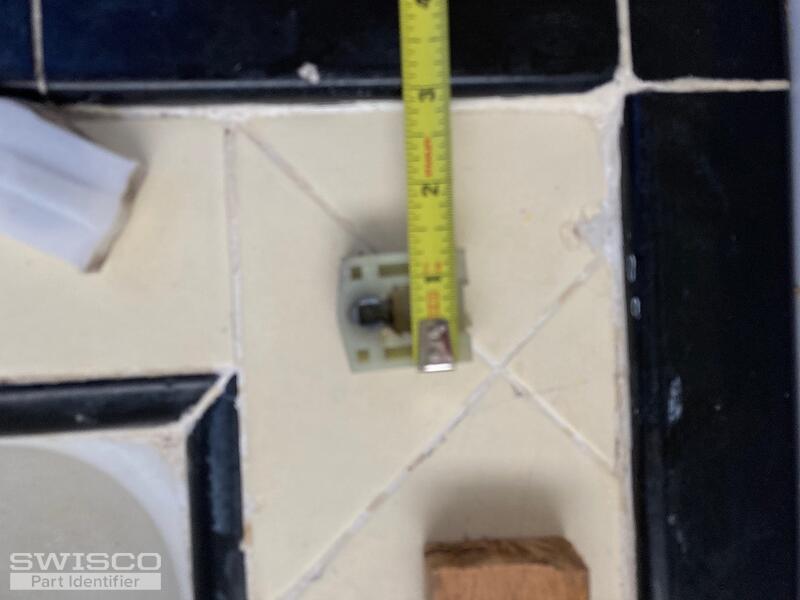

Thumbnail of the uploaded file named BA1CE1FE-80EB-4985-8862-3DC85D13AC31.jpeg

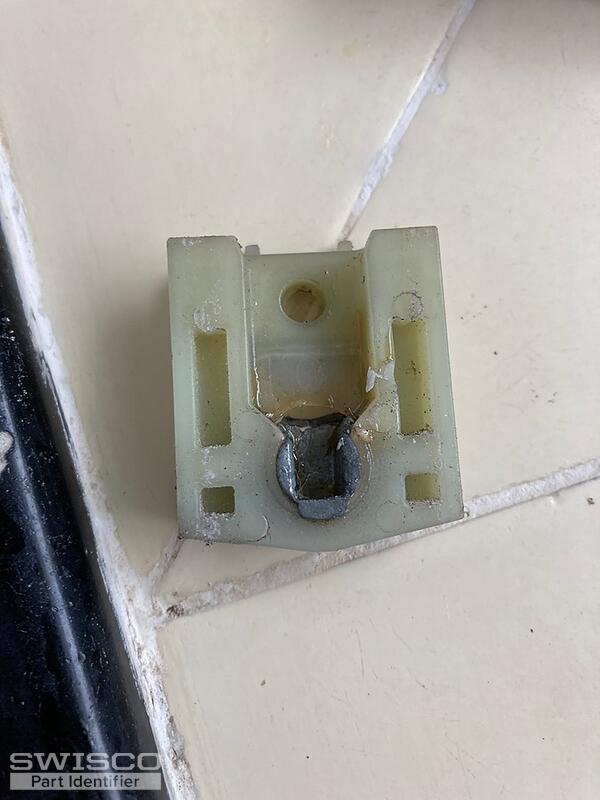

Thumbnail of the uploaded file named 5CD9F56B-8CB7-4583-AE1D-5C43CB7D7F08.jpeg

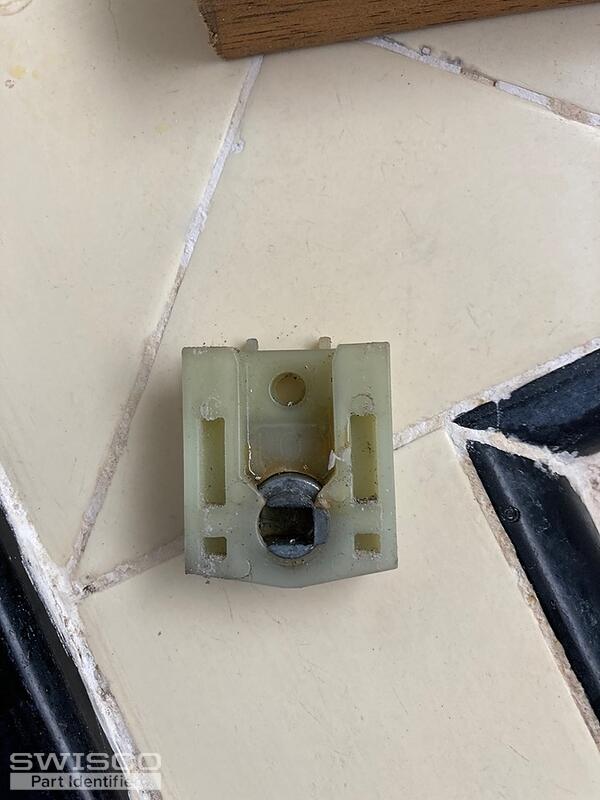

Thumbnail of the uploaded file named B311B46C-E724-4319-ABC4-78A6332B2768.jpeg

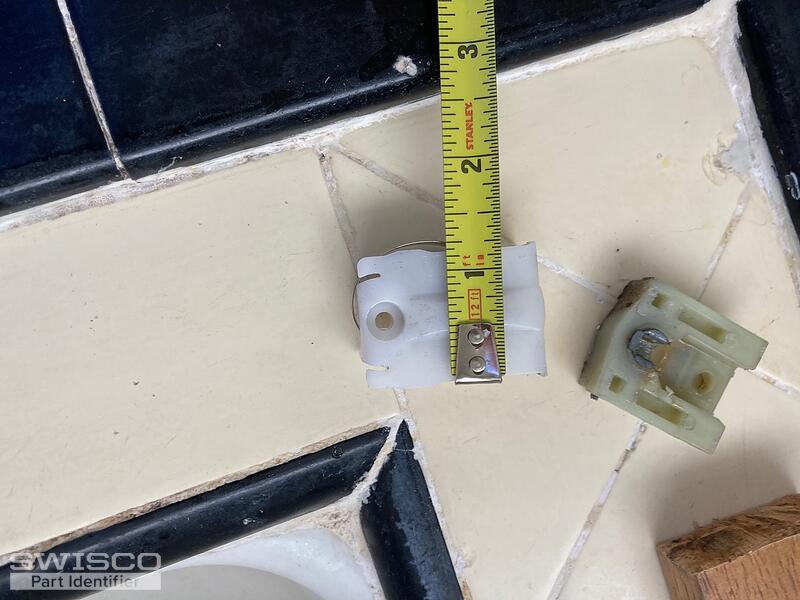

Thumbnail of the uploaded file named 8096089A-AC3E-4B29-84C0-23685C4A342E.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello! Emily isn't here today, but I can help you out from here.

Your pivot shoe here is a match for our 15-228 . This is designed to work with either our 3/8" Series 165 or 1/2" Series 160 . I'm not sure what size spring you have but just eyeballing your photos I think it might be the 1/2".

Assuming that I'm right, we also sell the 15-150S support for 1/2" springs.

Please look these parts over and let me know if you had any questions. We're always here to help.

A handy person from Hawaii says:
Thank you very much Tom!
Very helpful.
I'll place my order today.
Thanks!
Dan
Profile picture of Tom
Tom from SWISCO responded:

Awesome, thank you so much, Dan! Please let us know if you needed anything else and we would be happy to assist you.
