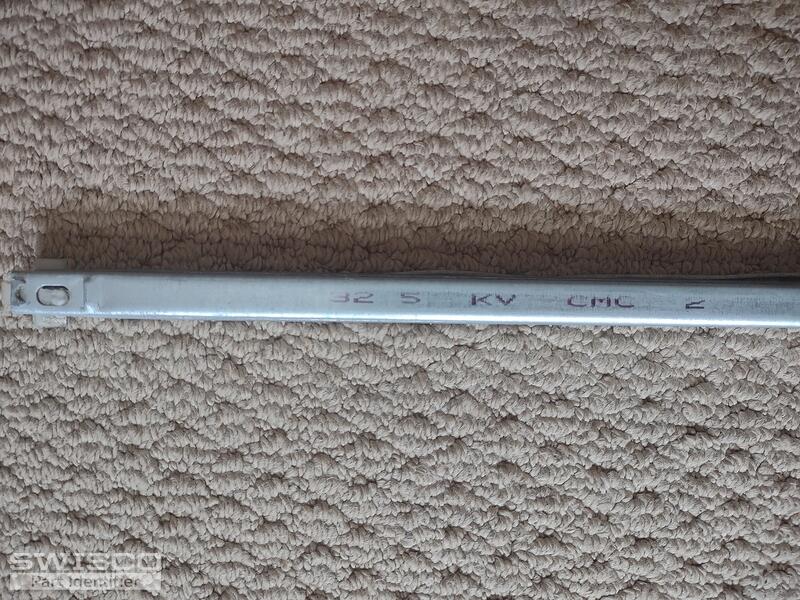

This was installed in the left channel of a top to bottom sliding window. Some markings on it "32 5 KV CMC 2". Thanks
33 inches in length
window spring identification
Quick Learner from Yorba Linda, California
Nov 6, 2024 3:27 pm
4 user uploaded images
2 Replies
Lauren from SWISCO
Nov 8, 2024 8:57 am
Hello, thank you for posting,
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
It appears your shoe is broken. You will need to compare to an undamaged version if possible to get an accurate measurement of the depth.
You will need a 33" balance with a 3250 stamp option. Please review and let us know if you have any additional questions!
Comparison of the S378, S380 and S385 balance shoes.
