window spring and pully system

A quick learner from Edison New Jersey says:

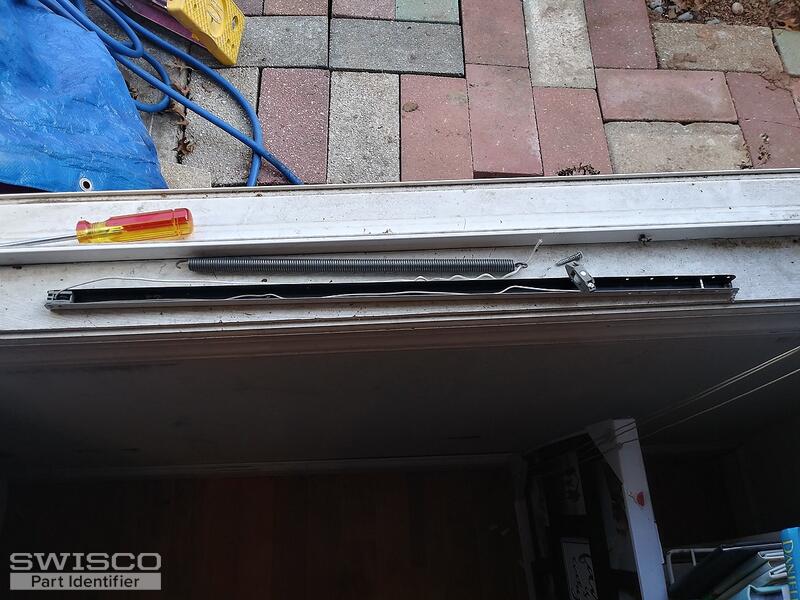

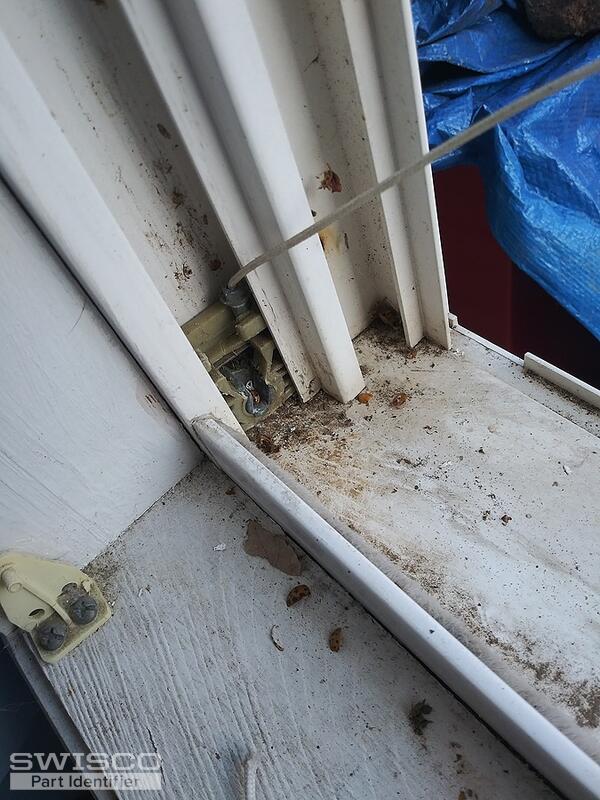

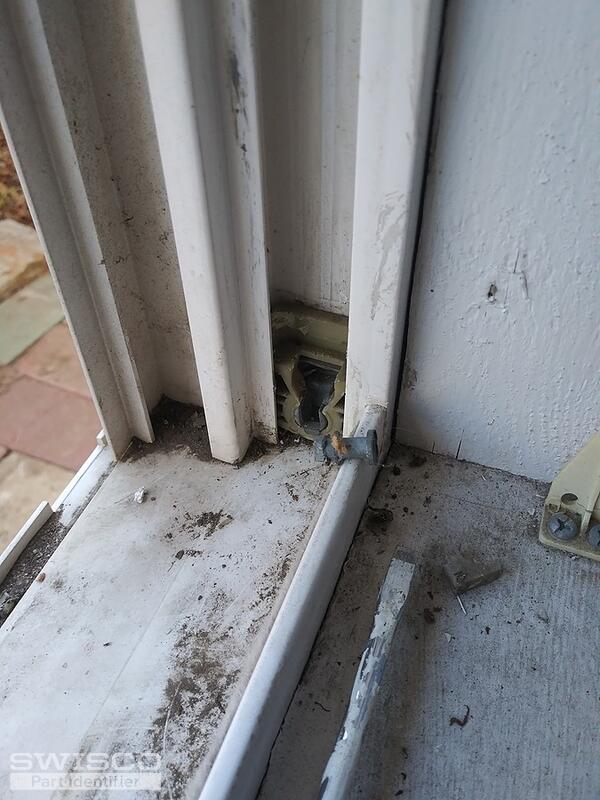

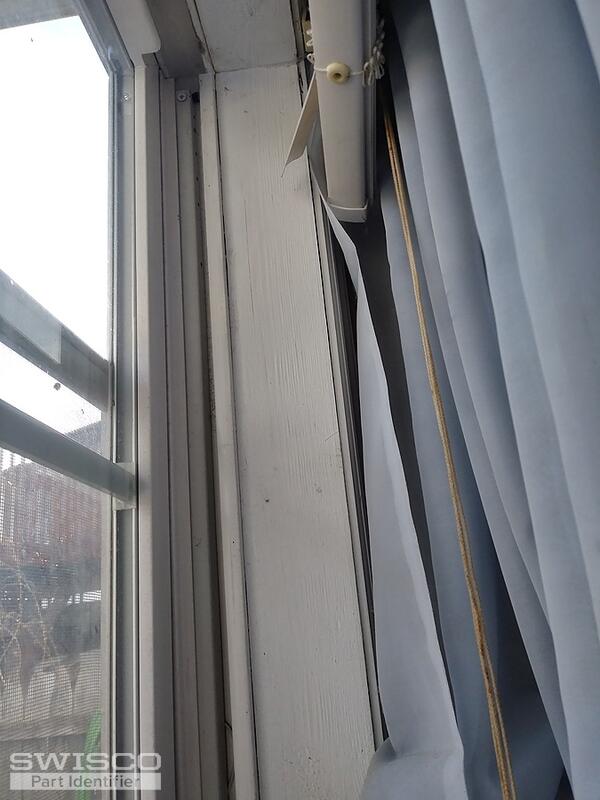

Need replacement parts for a spring loaded, twine pully system. Pictures attached.

Can this be converted to the tubular design?
Thumbnail of the uploaded file named 1120211343_HDR[6402].jpg
Thumbnail of the uploaded file named 1120211347_HDR[6400].jpg
Thumbnail of the uploaded file named 1120211403[6397].jpg
Thumbnail of the uploaded file named 1120211403a[6395].jpg

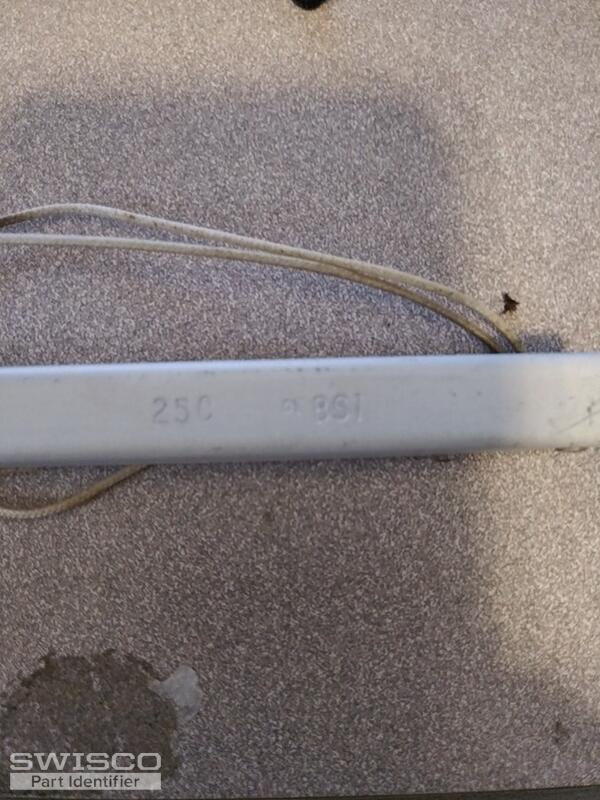

Thumbnail of the uploaded file named part number.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hi there! This is a custom type of channel balance, but it's a simple enough configuration. Basically what you have here is our Series 770 but with the bottom terminal clip swapped out for the more rounded 15-044 , which is better suited to fit in your pivot shoe.

Does that interest you? I'll need a bit more information before we can proceed, if so. Start by giving me the length of the metal channel and the quantity you needed altogether. I will also need you to confirm how it installs at the top of the window, be it with a hook or screw.

A quick learner from Edison New Jersey says:
Thanks for responding. I have placed an order for six sets based on the links you provided.

Merry Holidays to you!
Profile picture of Tom
Tom from SWISCO responded:

And to you as well! We really appreciate your order, too, of course. Please let me know if we can be of any help in the future.

A quick learner from Edison New Jersey says:

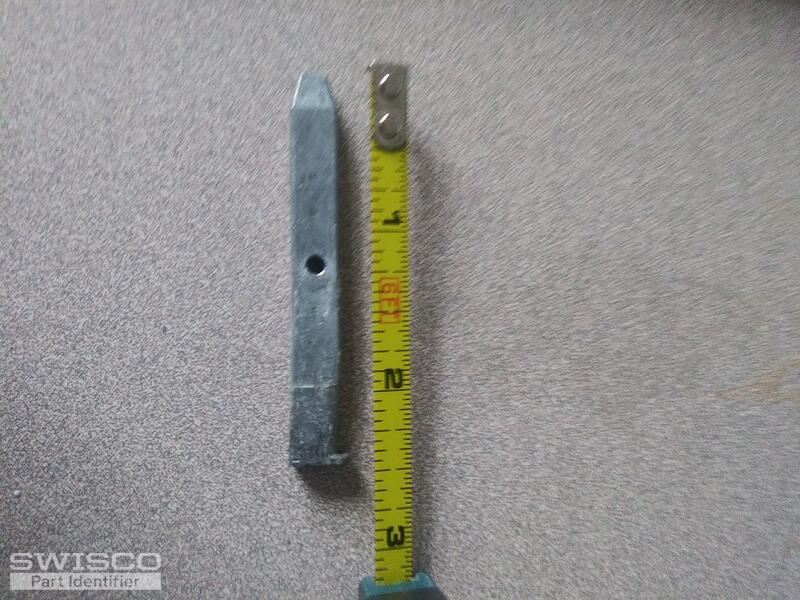

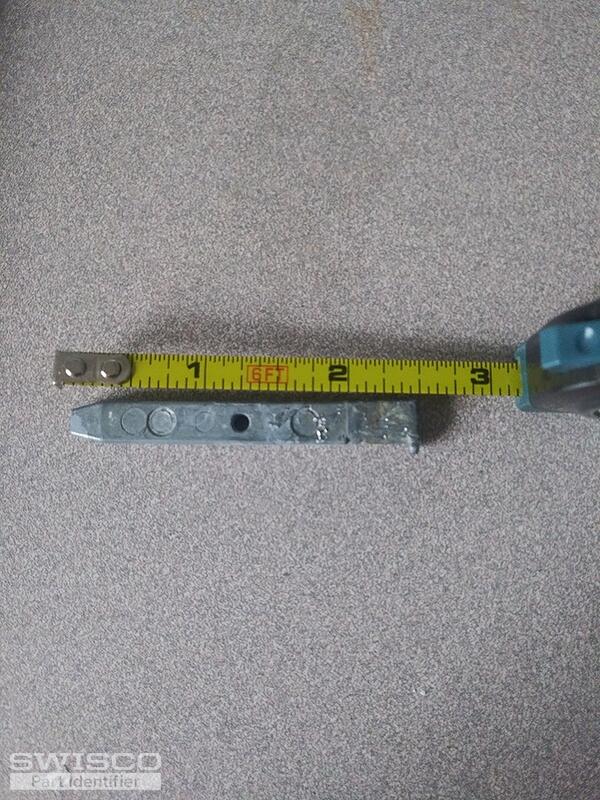

Thanks, I ordered some parts (worked great), but came across another that is needed for repair. It is a bar, (key?) that unlocks the pivot when the window is swung back into place.
Thumbnail of the uploaded file named key1.jpg
Thumbnail of the uploaded file named key2.jpg
Profile picture of Tom
Tom from SWISCO responded:

I'm very happy to hear the parts you bought worked out. Concerning this pivot bar, it appears to match our 26-443 . I would just review our dimensions to ensure that they all align.
