window springs

Home Owner from West Covina, California, USA
Jul 10, 2023 2:28 pm

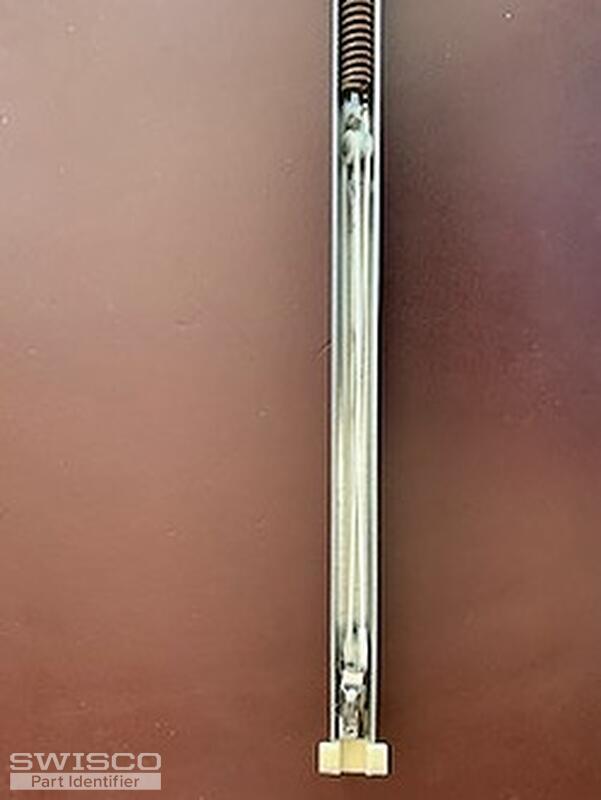

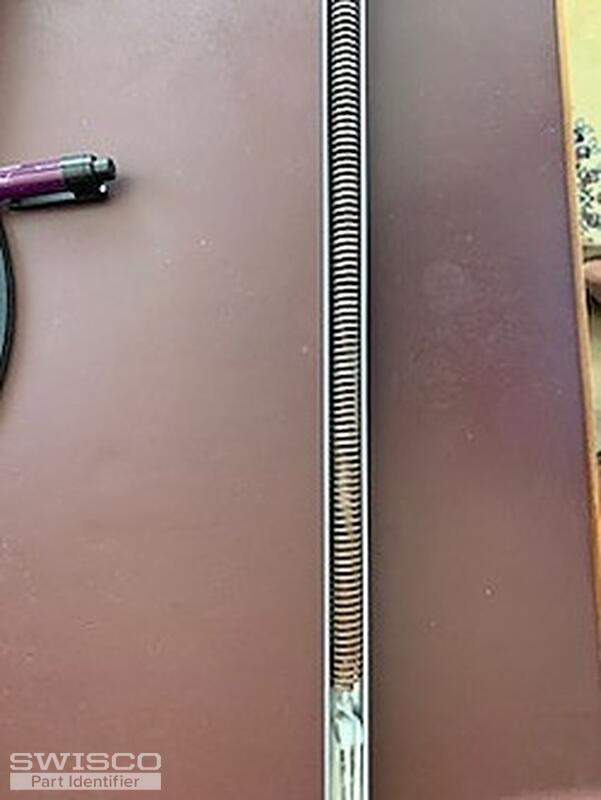

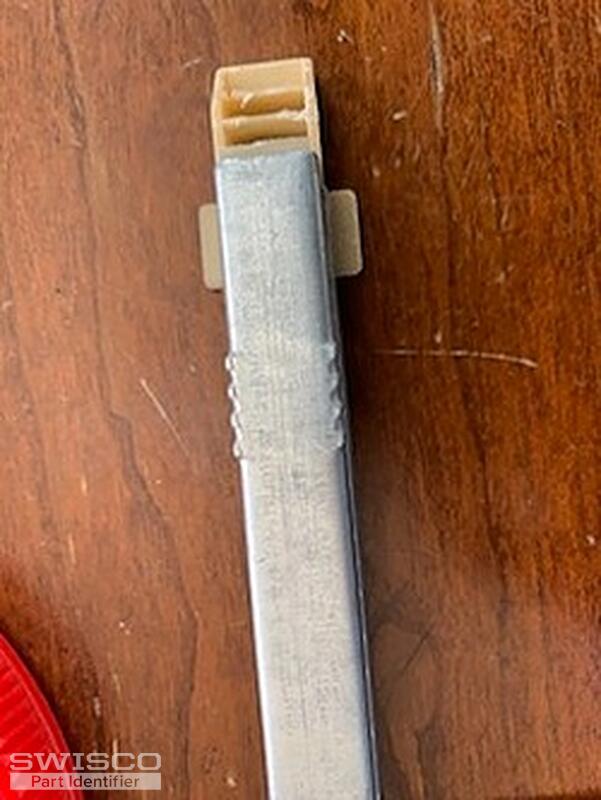

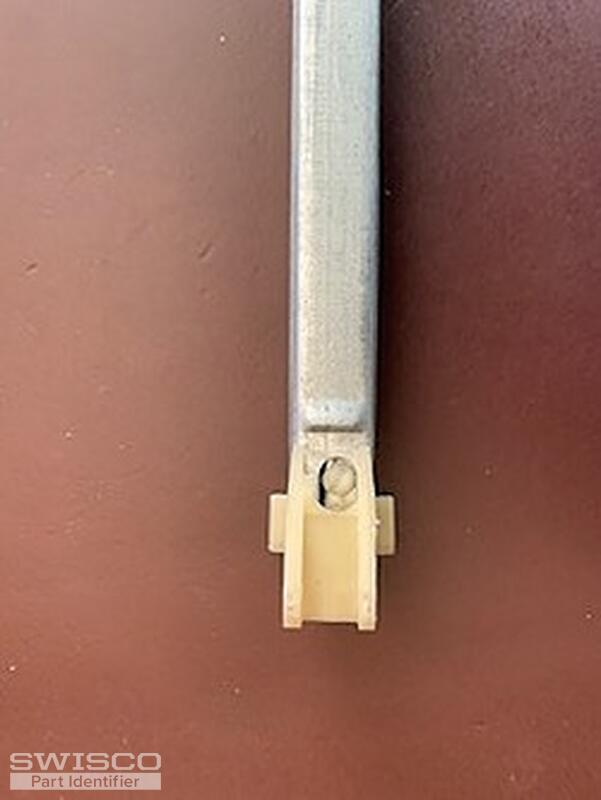

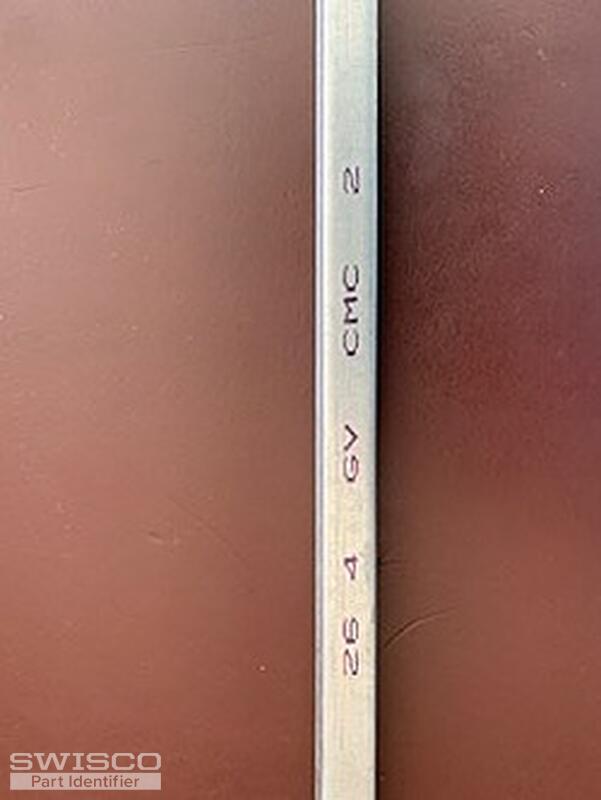

Please identify the springs I need so I can order them.
5 user uploaded images
2 Replies

Casey from SWISCO
Jul 11, 2023 10:18 am


Hello,
With this combination of attachments, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You'll also need 2640 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
