windows glazing snap in

Quick Learner from home
windows glazing snap in .I do not know type of please advice
2 user uploaded images
7 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! We may be able to provide you with a replacement for the glazing bead you need but I'll need to see a photo of it from an end profile view. It is important to see the exact shape of your bead to ensure we are providing your with an accurate recommendation.

Take a look at the video tutorial below for reference.

Quick Learner from home

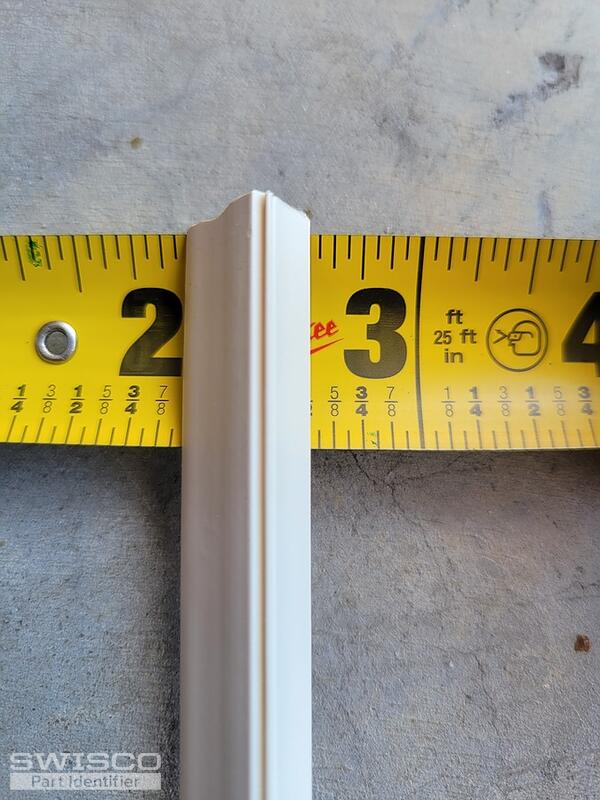

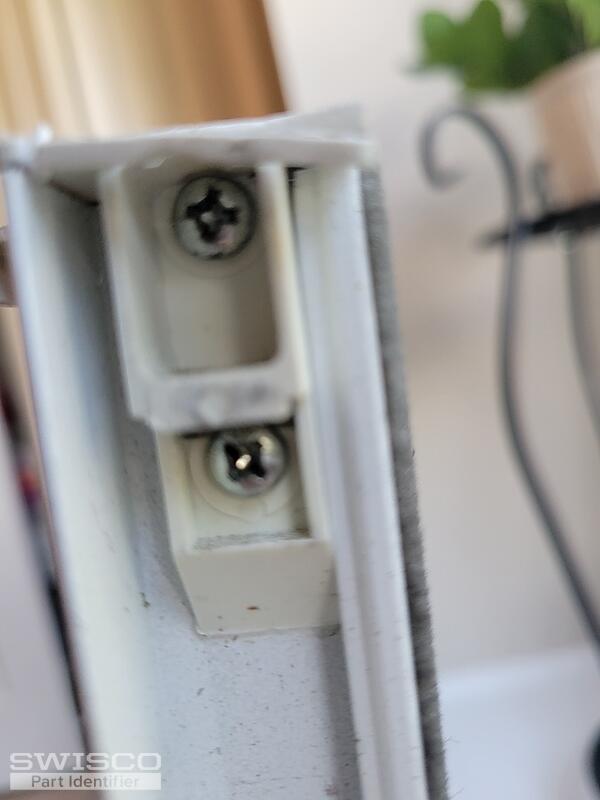

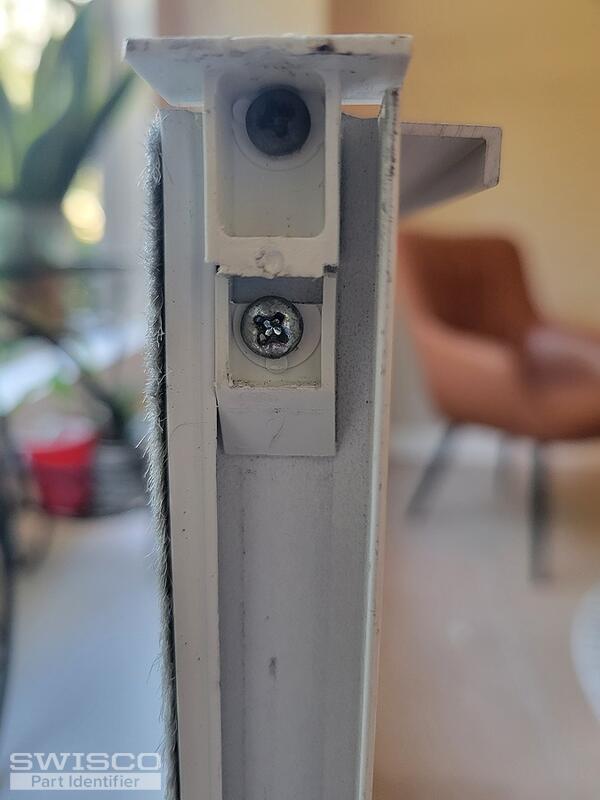

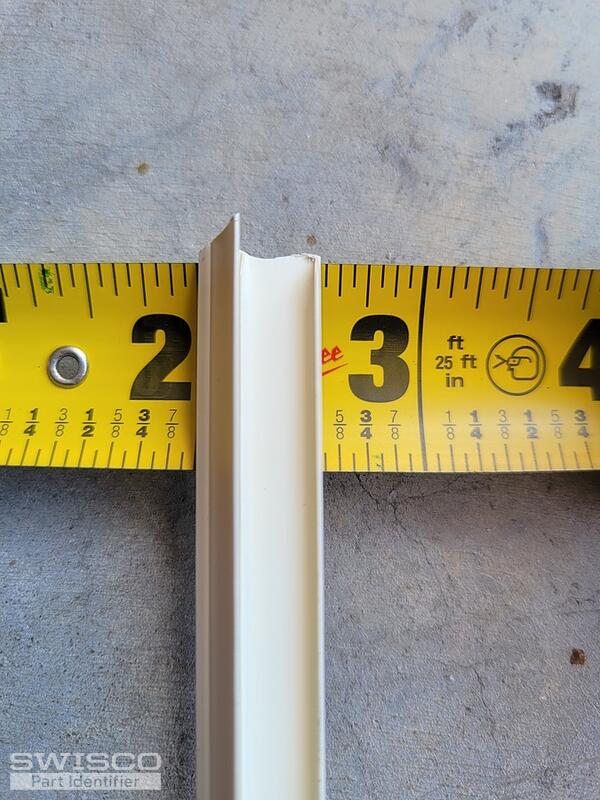

Windows glazing snap bead and top sash guide
5 user uploaded images
Quick Learner from home

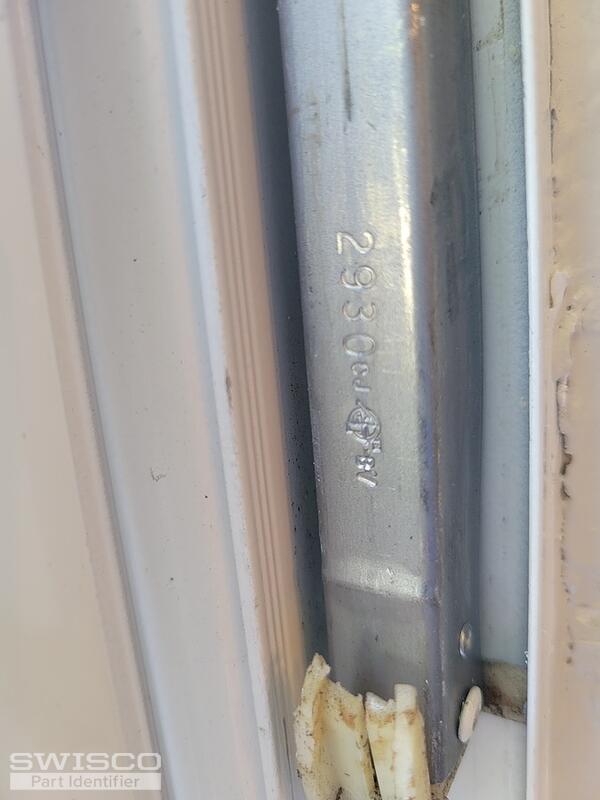

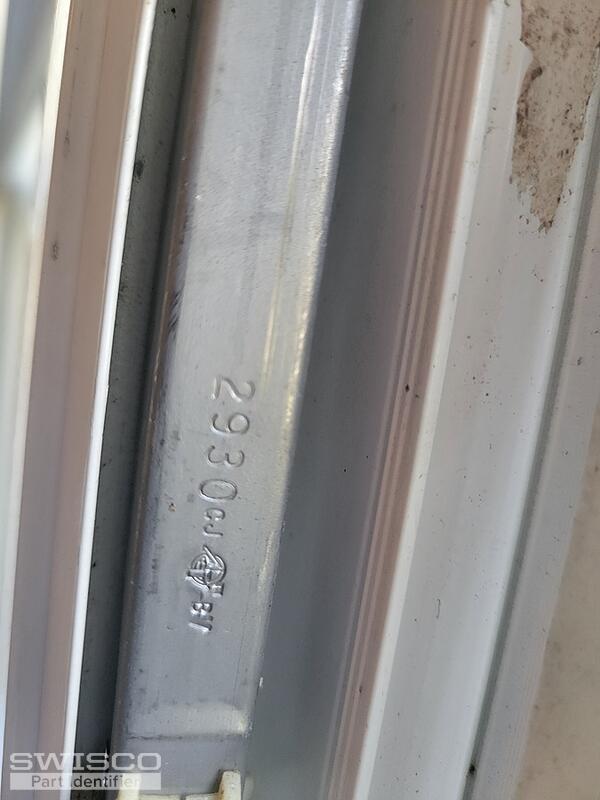

This is chanel balance 2930 part Number


2 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! Your glazing bead reminds me of the 55-210 Milestone Glazing Bead. Review and compare the dimensions to confirm. This is available in white and bronze.

Dimensions for 55-210
Dimensions for 55-210

The top sash guide can be replaced with the 18-180. Again, you'll need to compare the dimensions to confirm.

Detail of 18-180
Detail of 18-180

Side view of 18-180
Side view of 18-180

To determine the right replacement for your balances, I'll need to see a photo of them removed from the window. I'll need to see clear photos of the top and bottom attachments. You'll also need to confirm the measurement for the depth of your shoe.

The stamp only indicates the weight range the balances should be able to hold to support the weight of the sash.


Quick Learner from home

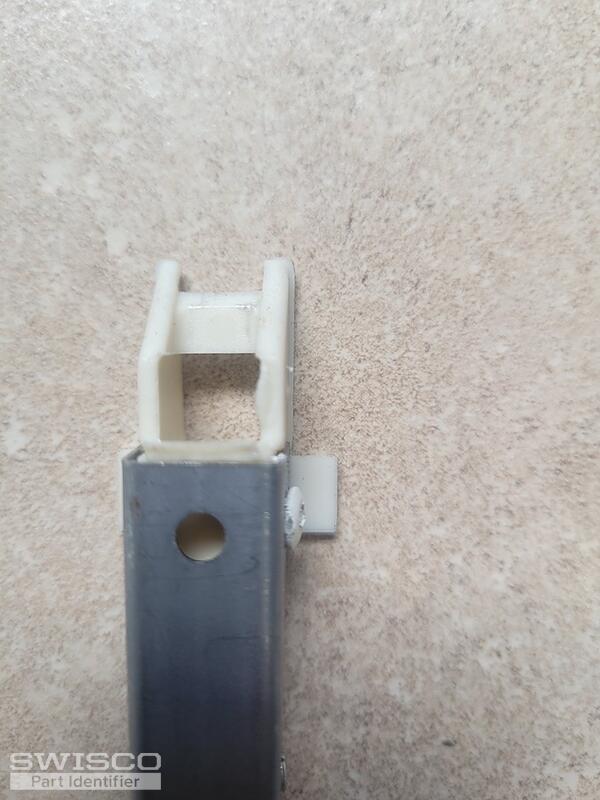

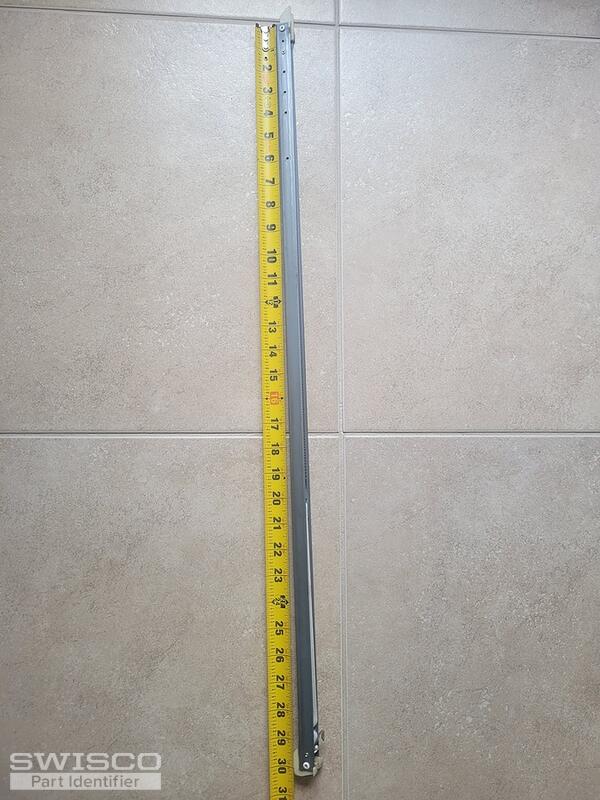

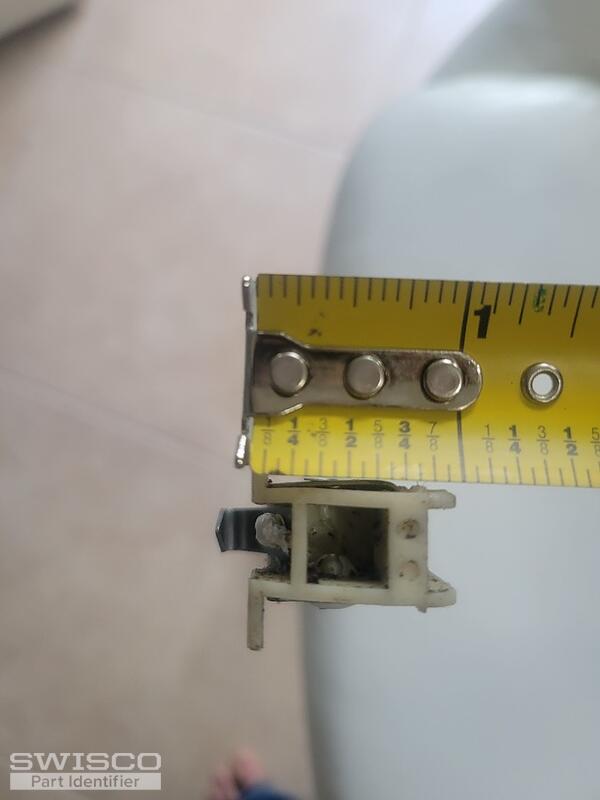

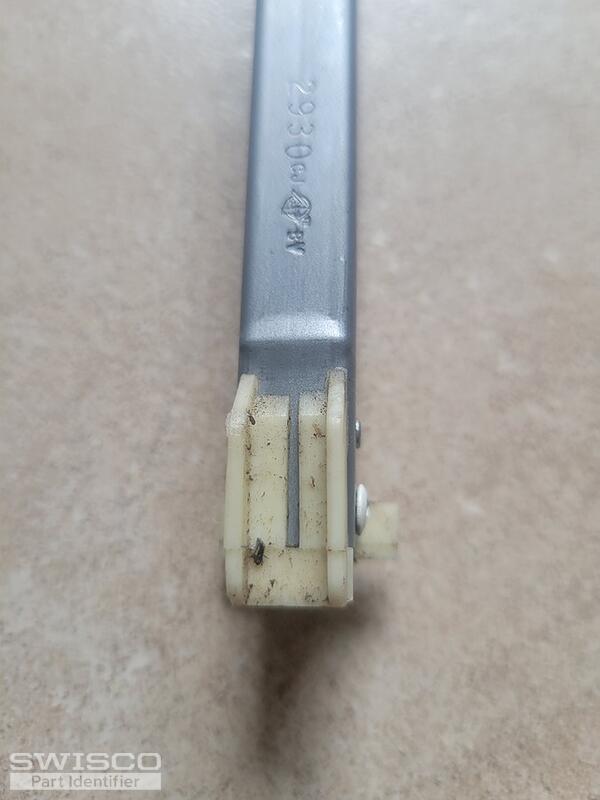

this is windows balance bottom shoe measurement and the top photo also and the length metal is 30


4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. Your shoe does appear to have a 7/8" measurement, so these will need to be a custom assembly.

I've forwarded a link with a quote for (2) of these balances. If you would like a larger quantity please let me know and I'll be happy to update the quote for you.

Feel free to reach out with any questions!
