Home Owner from SPARTA ,NJ

Aug 23, 2023 7:07 pm

HI THERE,

CAN YOU PLEASE HELP ME TO PURCHASE THE EXACT REPLACEMENT?

THANK YOU,

CLAUDIO.

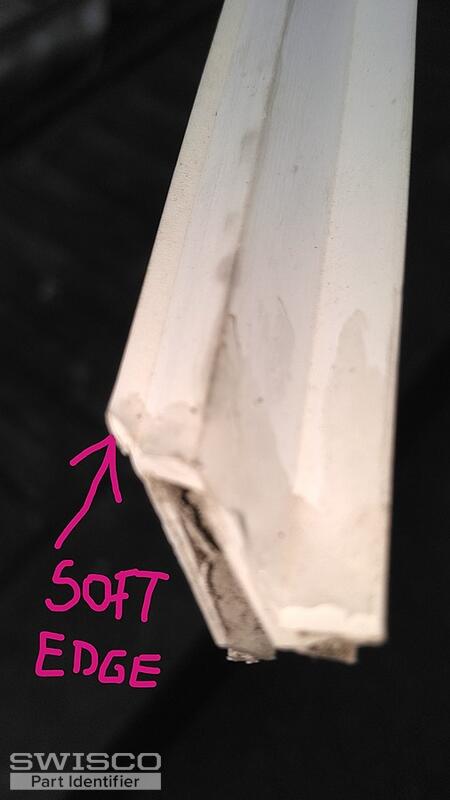

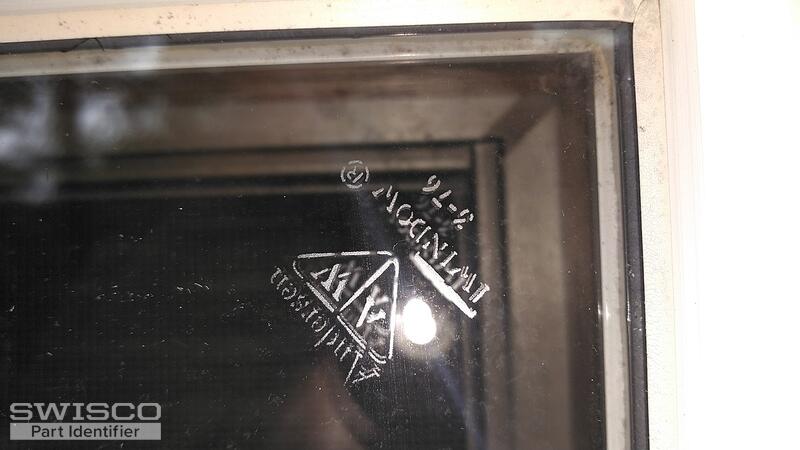

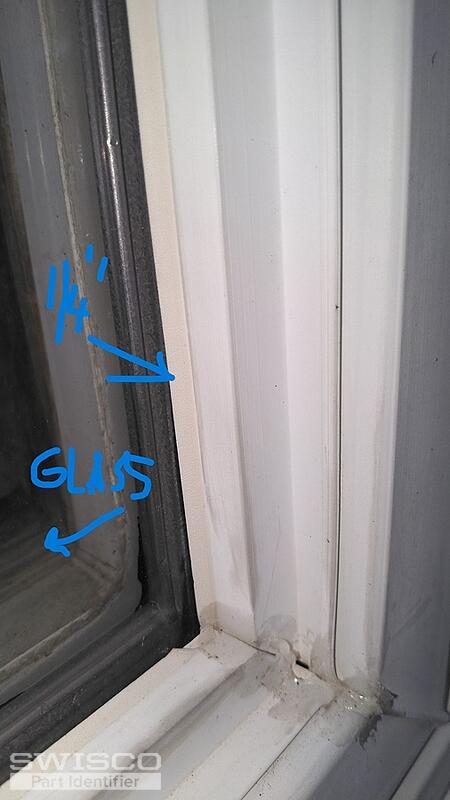

4 user uploaded images

6 Replies

Casey from SWISCO

Aug 24, 2023 1:15 pm

Hello,

The seal in your photos resembles the 55-303 Andersen glazing bead. Take a look and compare the dimensions below to confirm they match up to yours. Thanks for posting!

Profile view of 55-303

Home Owner from SPARTA ,NJ

Aug 24, 2023 5:57 pm

HI, THANKS FOR YOUR RESPONSE.

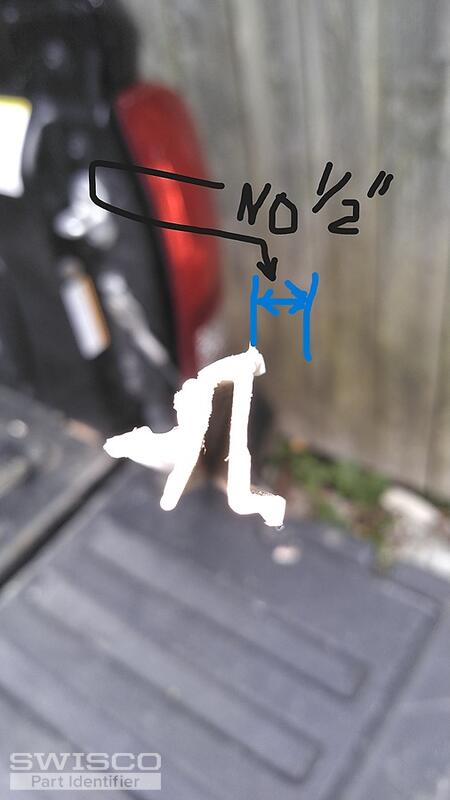

I COMPARED THE 55-303 WITH MINE AND I DON'T SEE THE 1/2 EXTENSION.

PLEASE ADVISE.

BEST,

CLAUDIO

3 user uploaded images

Dave Sr. from SWISCO

Aug 28, 2023 8:51 am

Thank you for your patience as we looked into this further for you. I believe you may have the older style 55-301 glazing bead used for the 5/8" thick glass. It was very similar to the 55-303 but it doesn't have the long extension at the top of the beading. Take a look at the dimensions below and confirm if your glass thickness is 5/8".

Profile view of 55-301

Home Owner from SPARTA ,NJ

Aug 28, 2023 6:13 pm

HI DAVE SR,

THE GLASS THICKNESS IS 1/2".
THE GLAZING BEAD HEIGHT IS 5/8 (SAME AS DIAGRAM).

THANKS SO MUCH FOR YOUR HELP!

BEST,

CLAUDIO

Dave Sr. from SWISCO

Aug 29, 2023 9:04 am

Based on the information you provided, it sounds like the 55-301 new style glazing bead is the one you need.
