Instructions on how to remove the old Andersen upper patio screen door roller.

The Andersen patio screen door roller is held in by two locking tabs.

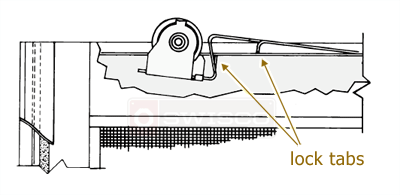

Diagram of the 84-078 installed in a sliding screen door.
Remove the Andersen patio screen door from the door frame. Lay the Andersen screen door down on a table and flip the top of the screen door so that it is facing towards you.

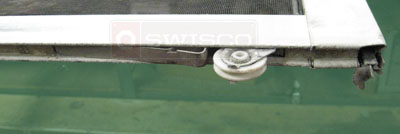

The Andersen upper screen door roller still intact in the screen door.

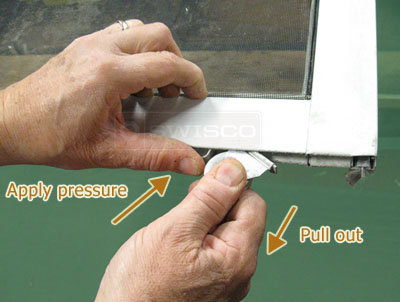

Apply pressure on the Andersen wheel assembly housing while at the same time pulling out the wheel.
Pulling out the 84-078 Andersen upper screen door roller out of the screen door.
