How to install the 84-017 screen door roller assembly

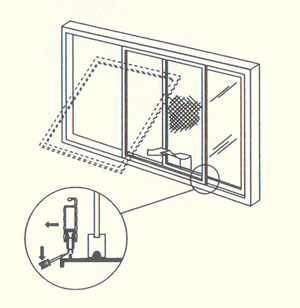

  1. First, remove the sliding screen door from the frame by lifting the screen door up and then tilting the door out of the frame. You may need to use a tool like a slotted screwdriver to lift the screen door wheel up and off of the door track.
    Removing the screen door from the frame.

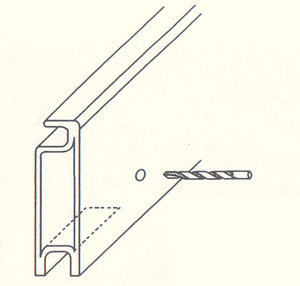

  2. Next, drill a 1/4" hole into the bottom of the screen door frame. Carefully measure the correct hole placement height depending on the size of the replacement wheel and your door track.
    Drill a hole in the screen door.

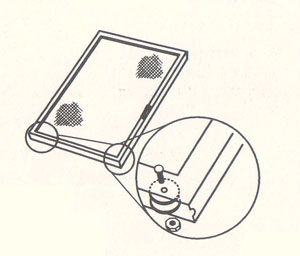

  3. Finally, install the replacement wheel in the drilled out hole and then place the sliding screen door back into the door frame.
    Install the replacement screen door wheel.
