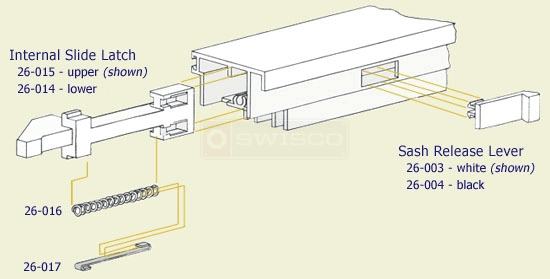

Slide Latch Assembly Diagram

This slide latch assembly is commonly used in double hung aluminum windows with sashes that tilt-in for cleaning. Used by many manufacturers.
Slide Latch Assembly Diagram
Need help identifying your part?
Send a photo or description to our Parts Experts!
Identify Your Part
SWISCO Part Experts
White Sash Release Lever
White Sash Release Lever
26-001
$0.42
Black Sash Release Lever
Black Sash Release Lever
26-002
$0.42
Sash Release Lever
Sash Release Lever
26-003
$0.56
DACO Finger Lever
DACO Finger Lever
26-007
$0.46
Lower Sash Slide Latch
Lower Sash Slide Latch
26-014
$0.97
Upper Sash Slide Latch
Upper Sash Slide Latch
26-015
$0.95
3/16" x 1-1/4" Spring
3/16" x 1-1/4" Spring
26-016
$0.31
1-1/4" Spring Retainer
1-1/4" Spring Retainer
26-017
$0.41
Top Tilt Latch, Air Master
Top Tilt Latch, Air Master
26-069
$1.97
